USB-CAN-M Series 1- and 2-Port USB-to-CAN Adaptors with/without Isolation
Description
Files/Downloads
Benefits of the USB-CAN-M Series Interface Converter from USB to 1/2 Port CAN Bus
- Extremely compact and rugged 1-/2-port USB-to-CAN bus converter.
- Model "SI" with 2500 V galvanic isolation on CAN bus.
- Versatile driver and utility software for Windows. LabVIEW supported.
USB-CAN-M Series 1- and 2-Port USB-to-CAN Adaptors

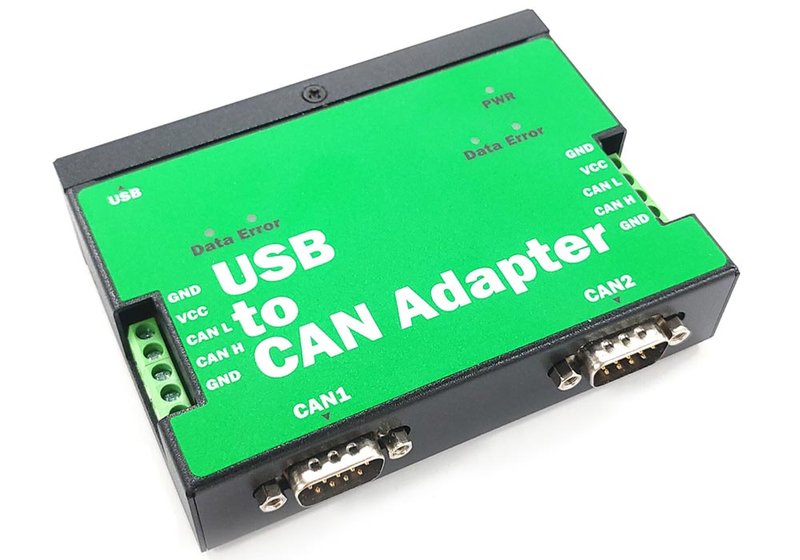

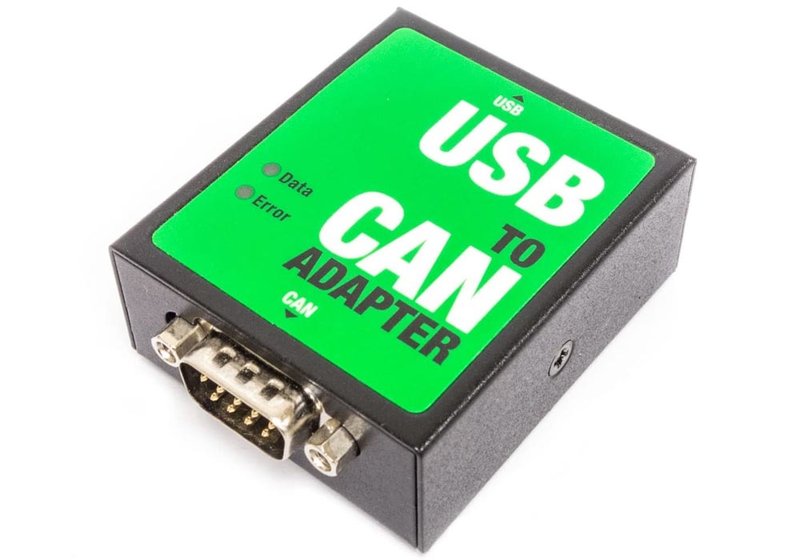

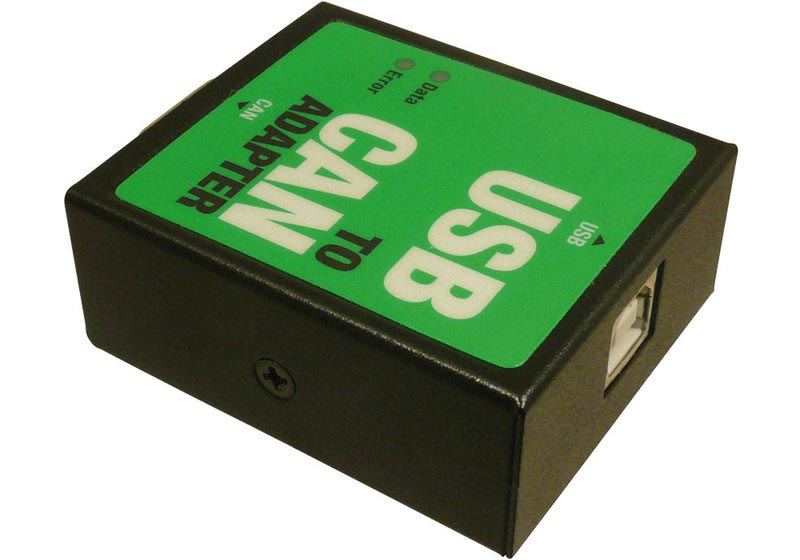

The USB-CAN-M, USB-CAN-SI-M, USB-2CAN-M, and USB-2CAN-SI-M are very compact USB to CAN bus converters. The models "SI" have galvanic isolation on the CAN bus up to 2500 V.
- Adds one or two CAN bus ports on your computer by connecting to USB 1.1, 2.0 or 3.0 host and hub ports.
- One 9-pin D-sub male connector and additional 5-pin terminal block on 2-port models.
- Powered by USB port, no external power adapter required.
- LEDs indicate initialization and CAN bus status.
- Installs as standard Windows COM port, COM port number can be changed to any COM port number.
- CAN bus speed up to 1 Mbits.
- 512 bytes transmit/receive FIFO buffer for high speed data throughput.
- Easy Plug&Play installation and CAN bus device connection.
- USB CAN adapter can be controlled over serial port using simple ASCII commands.
- Versions -SI: 2500 V galvanic isolation on CAN bus.
- Design with ARM Cortex-M0 32 bit microcontroller and the USB to UART chip.
- Drivers provided for Windows and Linux OS.
Model Overview
| USB-CAN-M | USB-CAN-SI-M | USB-2CAN-M | USB-2CAN-SI-M | |
| Ordering code | 413011 | 413012 | 413021 | 413022 |
| CAN bus ports | 1 | 1 | 2 | 2 |
| CAN bus features | Bosch C_CAN module; CAN bus speed CAN 2.0A/2.0B 5 kbps...1 Mbps for transmit and receive; signals: CAN_H, CAN_L, CAN_GND, CAN_V+; CAN bus modes: Standard mode (normal operation on CAN bus), listen mode (passive receiving of CAN frames), echo mode (transmitter also receives sent frames - for testing purposes); LED for CAN bus data activity, CAN bus error; protection: ±16 kV ESD protection for all signals | |||
| - | 2500 V galvanic isolation on CAN bus | - | 2500 V galvanic isolation on CAN bus | |
| CAN bus connector | 9-pin D-sub | USB 2.0 FullSpeed, USB 1.1 compliant; type B connectors | ||
| Power | USB-powered, max. 250 mA/5 VDC | USB-powered, max. 300 mA/5 VDC | ||
| Dimensions (mm) | SECC sheet metal (1 mm), 61 x 50 x 23; 100 g | SECC sheet metal (1 mm), 115 x 85 x 28; 310 g | ||
| Environmental | Temperature 0...60°C (operating), -20...75°C (storage), 5...95% relative humidity, non-condensing | |||
| Safety Approvals | CE, FC | |||
Included: Converter box, 1x USB A/B cable (90 cm).
Software: Via download;
API library supports C/C++, C#, VB.NET, VB6, Python and LabVIEW.
Utility: On-board firmware update utility.
OS driver support for Windows XP to Windows 10; Windows Server 2003 to 2012 R2
Monitoring Tools supported by CANHacker, Titan CAN Test.
