USB-AD Series Compact USB Measurement and Control Systems
Benefits of the USB-AD, USB-AD14F, USB-AD16F Multi-I/O DAQ and Control Modules
- USB DAQ system - integrated in connector or as a compact box.
- 12 bit, 14 bit or 16 bit A/D resolution.
- Supported by the software NextView.
USB-AD Series Compact USB Measurement and Control Systems
Precisely record and output signals with the USB-AD series: The high-performance USB data acquisition system accomodated in a stable aluminum housing impresses by high technical standard and excellent price-performance ratio. It is especially suitable for dynamic applications.
Available in three versions: accomodated in the D-Sub connector housing or in a stable aluminum housing, witht 12 bit, 14 bit or 16 bit A/D resolution.
- USB allround DAQ, measurement and control boxes, multi-I/O: Combination of analog inputs, analog outputs and digital-I/O.
- 16 analog inputs, on the model USB-AD16F with galvanic isolation from the PC.
- Depending on the model 12 bit, 14 bit or 16 bit A/D resolution.
- USB-powered.
- Driver software included. Supported by software NextView.
Model Overview

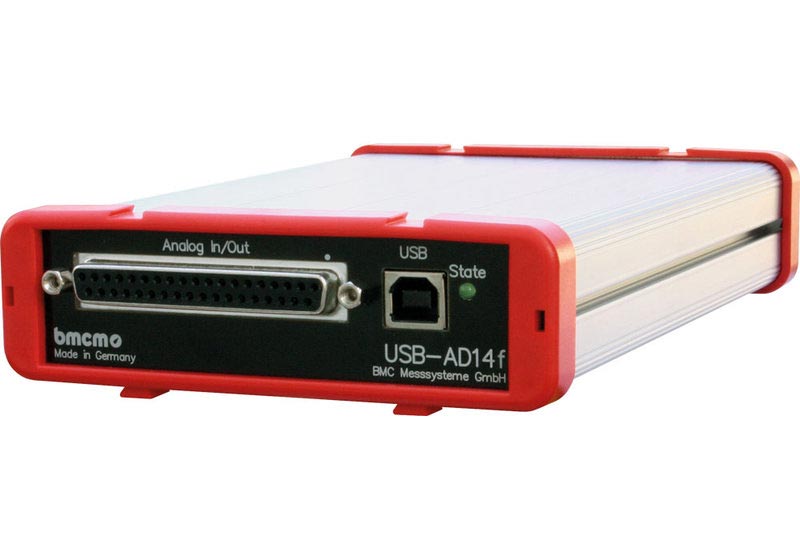

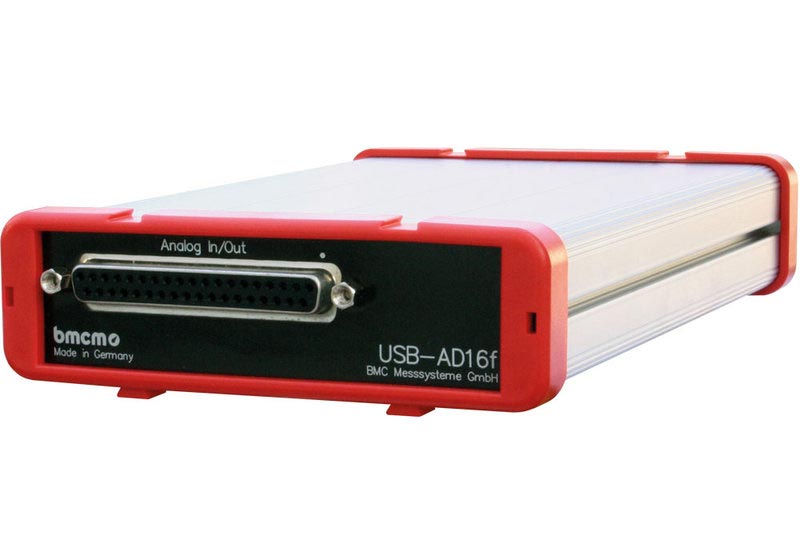

| USB-AD (compact) | USB-AD14F (14 bit) | USB-AD16F (16 bit) | |

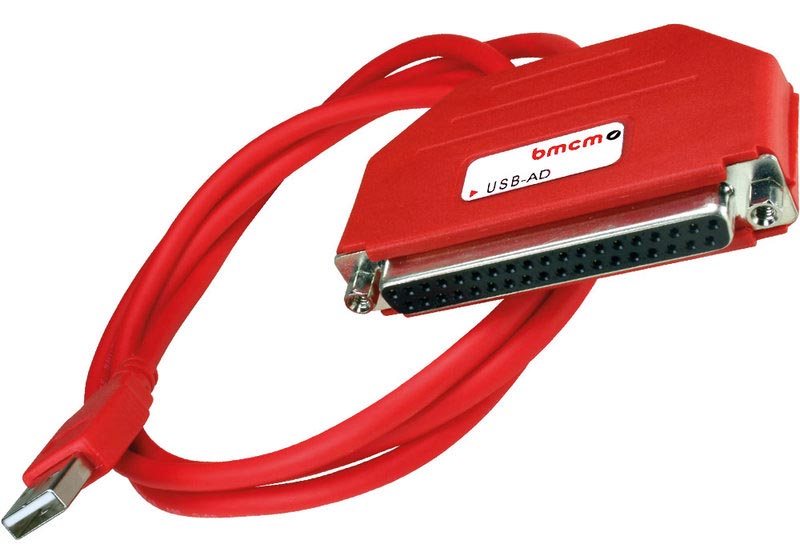

| Design | Accomodated in the D-Sub connector housing | Accomodated in a stable aluminum housing | Accomodated in a stable aluminum housing |
| Inputs | 16 single-ended | 16 single-ended | 16 single-ended with galvanic isolation from the PC |
| A/D conversion | 12 bit, max. 10 Hz/channel; up to 500 values/second can be sampled depending on software and PC) | 14 bit, max. 20 kHz total sampling rate | 16 bit, max. 250 kHz total sampling rate |
| Ranges | ±5 V | ±10 V | ±10 V, ±5 V, ±2 V, ±1 V |
| Outputs | 1 | 1 | 2 |
| D/A conversion | 12 bit | 12 bit | 16 bit |
| Ranges | ±5 V, max. 1 mA | ±5 V, max. 1 mA | ±10 V, max. 1 mA |
| Digital-I/O | 4 digital inputs/4 digital outputs (TTL/CMOS); digital inputs are sampled time-synchronously with the analog inputs. | 8 digital inputs/8 digital outputs (TTL/CMOS) | 4 digital inputs/4 digital outputs (TTL/CMOS) |
| Counters | - | 1, 16 bit, 100 kHz, 5 V TTL/CMOS level | 1, galvanic isolation, 16 bit, 1 MHz, 5 V TTL/CMOS level |
| Interfaces | USB 2.0 fullspeed | USB 2.0 fullspeed, incl. 1 m USB cable | USB 2.0 fullspeed, incl. 1 m USB cable |
| Power supply | USB powered | USB powered | USB powered |
| Connectors | 37-pin D-sub female | 37-pin D-sub female (analog channels, front), 15-pin D-sub female (digital channels/counter, backside) | 37-pin D-sub female (analog channels, front), 15-pin D-sub female (digital channels/counter, backside) |
| Size (mm) | 71 x 45 x 16, USB cable approx. 1.1 m; IP30 | 167 x 113 x 30; IP30 | 167 x 113 x 30; IP30 |
Software: ActiveX Controls LIBADX (Hardware-independent) for programming with Windows XP/7/8/10; LIBAD4 SDK for C/C++ programming with Windows XP/7/8/10, Mac OS X, Unix (FreeBSD, Linux); measurement programm NextView4 fully functional 30-day trial included to directly test the functionality of the USB-AD.
Optional: NextView4 professional software (versions: Professional, Lite) for the acquisition and analysis of measurement data with Windows XP/7/8/10.
