Keysight U8031A 3-Channel Power Supply, 375W

Benefits of the U8031A dc Power Source With 3 Channels, up to 375 W

• 3-channel DC power supply up to 375 W.
• Output ranges voltage up to 5/30 V, current up to 3/6 A.
• Fast transient response <50 µs.

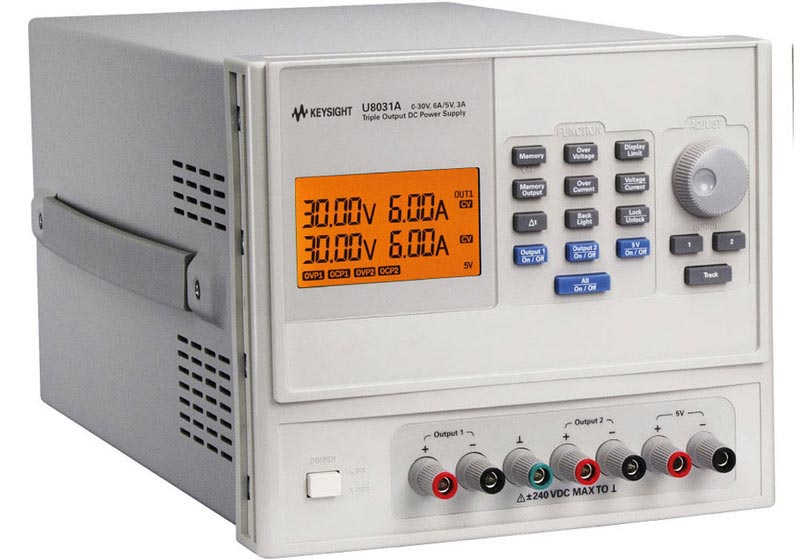

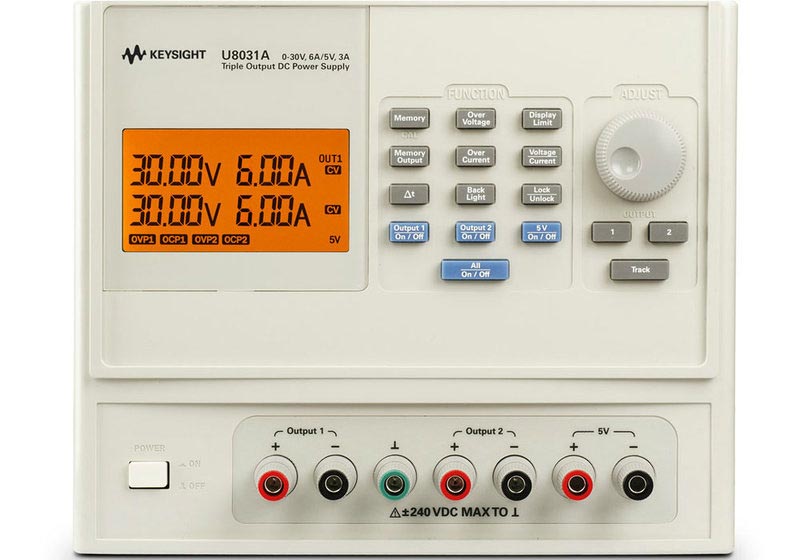

Keysight U8031A 3-Channel Power Supply, 375 W

The power supplies U8031A expand the range of Keysight's U8000 serie with 3-channel models up to 375 W, 30 V/6 A. With an integrated sequencing function for simple output sequencen with minimal programming skills.

• 3 channels, 375 W.
• Easy to use, no programming required.
• Excellent load and line regulation (CV: <0.01% + 2 mV; CC: <0.02% + 2 mA).
• Fast transient response <50 µs.
• Low output noise =1 mV_RMS (0.5 mV_RMS typ.) and =1 mA_RMS from 20 Hz to 20 MHz.
• Safety: Fully integrated OVP and OCP. Keypad and physical lock feature.
• Dual display shows both voltage and current reading.
• Auto tracking between output 1 and 2 with a single control.
• Multiple channels that can be individually/simultaneously controlled.

Model Overview

Agilent’s Electronic Measurement Group is now Keysight Technologies.
