Keysight U8002A Power Supply 30V, 5A, 150W

Obsolete - not available
This Article is currently not on stock. Please enter your mail and we will notify you when the product is back on stock.
Your request has been accepted
Your mail is incorrect!
The requested article couldnt be found!
An error occured!
Please accept the Privacy Policy
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

EOL/obsolete. ▸Current Keysight power supplies .

Benefits of the U8002A Power Supply With 1 DC Channel up to 150 W

  • 1-channel DC power supply up to 150 W.
  • Output range 0...+30 V, 0...5 A.
  • Low output noise.

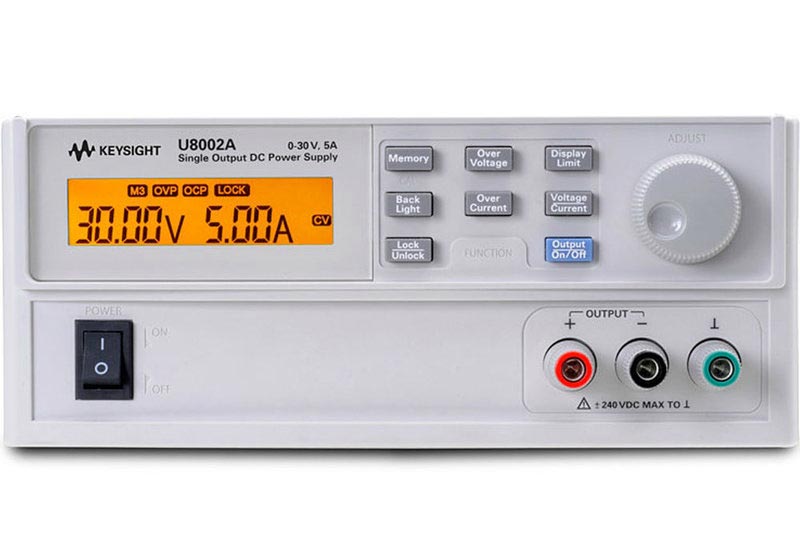

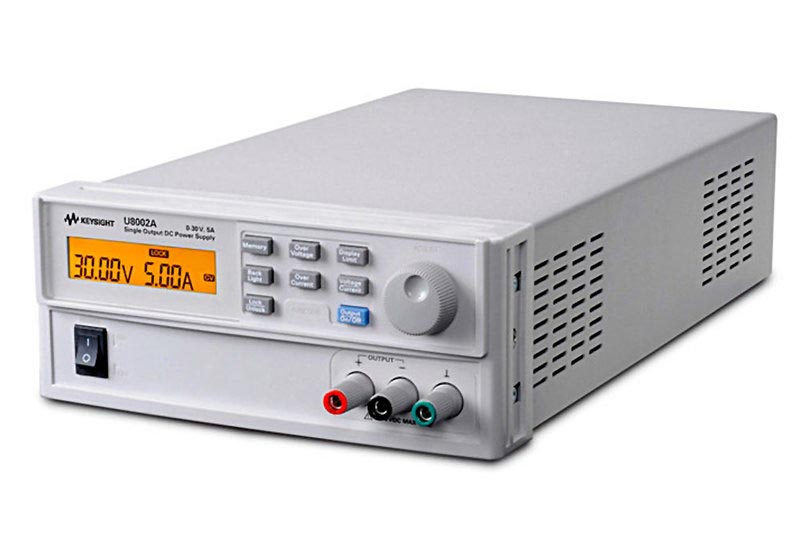

Keysight U8002A Power Supply 30 V, 5 A, 150 W

The Keysight U8002A 150 W single-output, non-programmable DC power supplies are suitable for a variety of electronics manufacturing applications. With their affordable pricing, they are also well suited for usage in education labs.

  • Excellent load and line regulation. CV: <0.01% +2 mV; CC: <0.02% +2 mA).
  • Output range 0...+30 V, 0...5 A.
  • Low output noise: 1 mVRMS (20 Hz...20 MHz).
  • Overvoltage and overcurrent protection.
  • LCD display with backlight on/off.
  • Standby output for high security.
  • Safe and recall up to 3 settings.
  • High security features: Keypad lock (disables the frontpanel keys) and physical lock mechanism.

Model Overview

Model Channel 1 Channel 2 Channel 3 Power
U8002A 30 V/5 A (CC <300 ppm/°C) - - 150 W

Included: Power supply U 8002A, power cord, user manual.

Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!

3Y Warranty & Keysight CARE

Agilent’s Electronic Measurement Group is now Keysight Technologies.
