Keysight U2941A Test Fixture
EOL/this product is obsolete and not available anymore from the manufacturer.
Benefits U2941A - Parametric Measurements Made Easy!
- Complete solution for SMU U2722A: Test Fixture for parametric measurements.
- Reliable - minimizes ESD on sensitive components.
- Different socket modules for a variety of pin configurations.

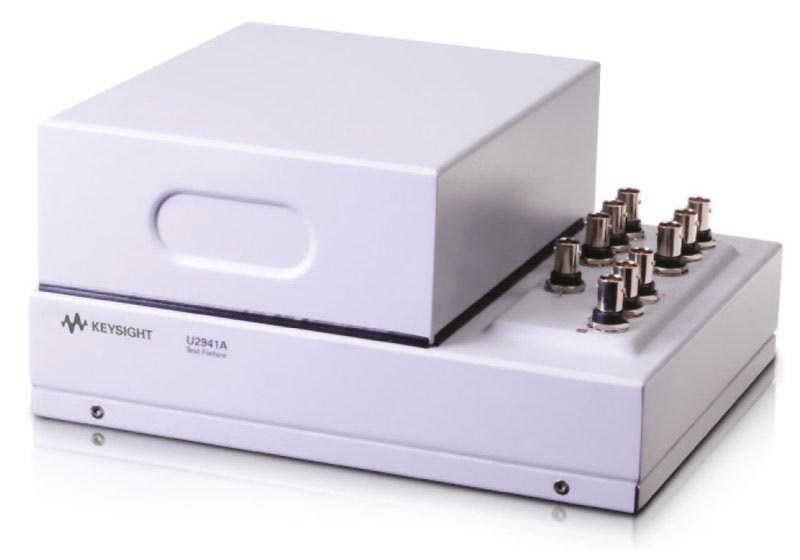

Keysight U2941A Test Fixture

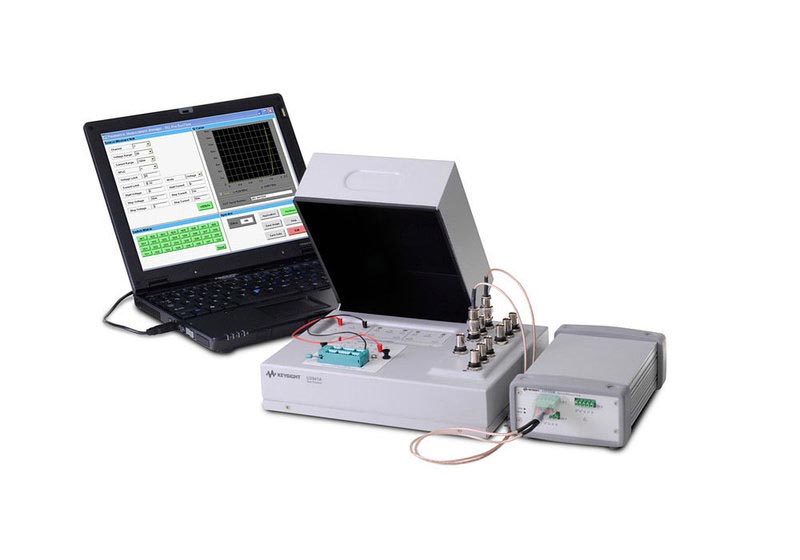

The Keysight U2941A parametric test fixture is designed to complete usage of the Keysight U2722 USB modular source measure unit (SMU) in the testing of semiconductor components, including SMT and DIP ICs. The bundled Keysight Parametric Measurement Manager software also supports the Keysight U2751A USB modular switch matrix when used with the U2722A.

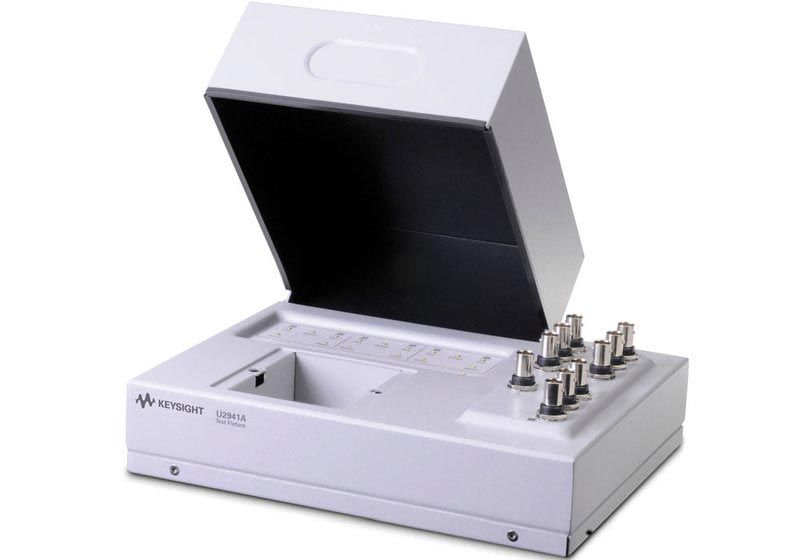

- Closed lid minimizes ESD on sensitive circuits and components.
- Up to 3 source /measure channels supported.
- Different socket modules to match a wide variety of pin configurations.
- Assembly PTFE plate for low-current measurements.
- Bundled Keysight Parametric Measurement Manager software (and VEE Pro as an option or bundled) eases set-up, testing and data recording.

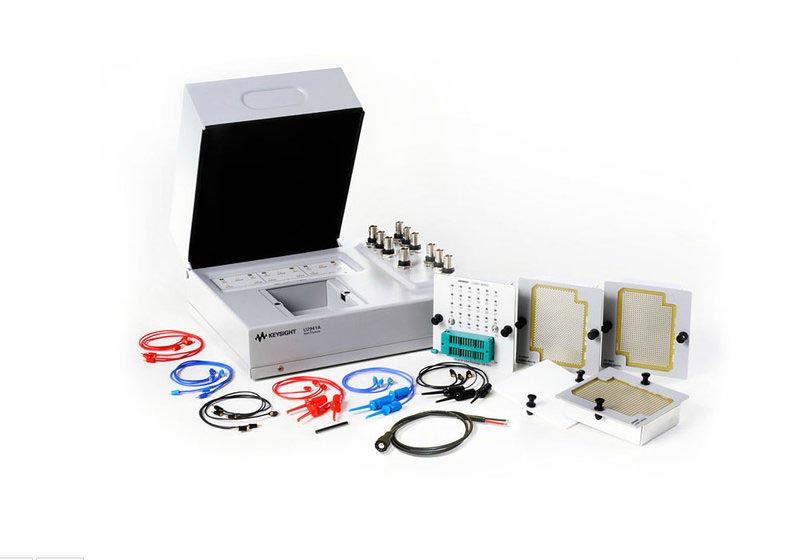

Included: U 2941A, assembly PTFE plate, 28-pin dual-in-line (DIP) socket module, 0.1" universal socket module, 0.075" iniversal socket module, 0.05" universal socket module, pin plug-to-pin plug cable (4x blach, 4x red, 4x blue), pin plug-to-mini clip cable (4x black, 4x red, 4x blue), PCB jumper pin, 3x BNC-to-2-wire cable 1 m, Keysight Parametric Measurement Manager CD (incl. installation and operating guide).
Agilent's Electronic Measurement Group is now Keysight Technologies.
