EOL/this product is obsolete and not available anymore from the manufacturer.

Benefits of the U2761A USB PC Function Generator and Arbitrary Waveform Generator

  • Modular 1-channel signal and arbitrary waveform generator for USB.
  • Bandwidth sine and square up to 20 MHz.
  • Can be used directly at PC USB port or in chassis U2781A.

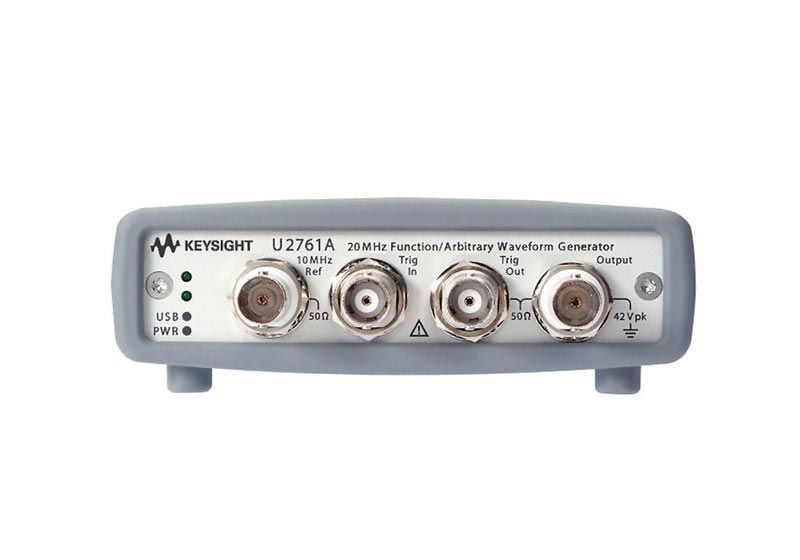

Keysight U2761A USB Signal Generator, 20MHz, 1 Channel

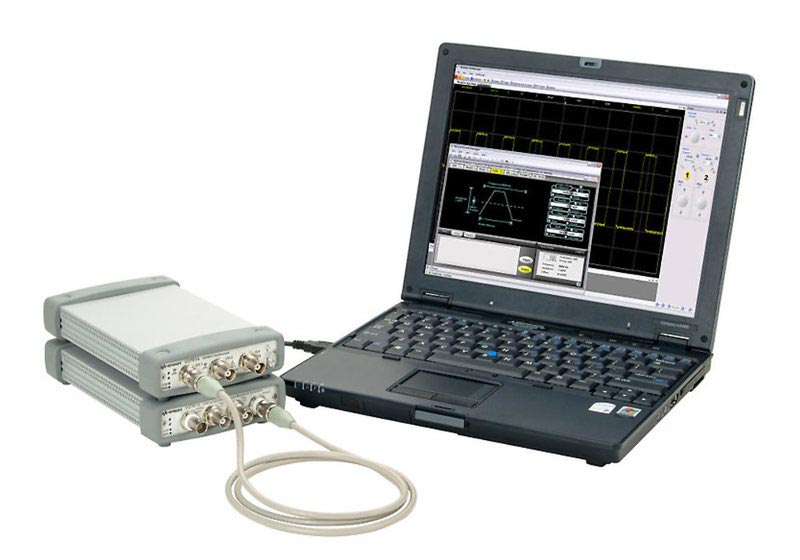

The Keysight U2761A is a USB waveform generator module for standard and arbitrary signals. Can be used as stand-alone devices directly at a PC USB port or as modular components in a ▸mainframe/chassis U2781A.

  • High-speed USB 2.0 (480 MBit/s) TMC 488.2 compatible.
  • 1 channel signal generator for standard and arbitrary waveforms:
    Sine, square, rampe, triangle, pulse and DC.
    Sine and square: Up to 20 MHz.
    14 bit, 50 MS/s, 64 kPoints arbitrary waveforms.
    AM, FM, PM, ASK, FSK and PSK modulations.
  • 40 mVpeak-peak...5 Vpeak-peak amplitude range (in 50 Ω load).
  • Pulse generation up to 5 MHz with variable period, pulsewidth and amplitude.
  • Plug&Play installation and configuration.
  • Arbitrary waveform editor feature.

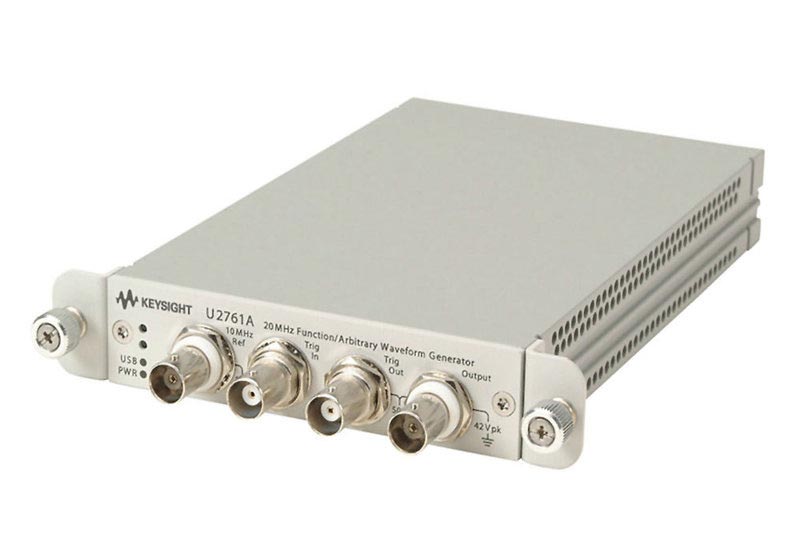

  • Used as USB device or modular component in a ▸mainframe/chassis U2781A.
  • Incl. software Keysight Measurement Manager. Compatible with VEE, LabVIEW, Visual Studio and others.
  • A BenchVue software licence (BV0022B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Included: USB module U 2761A, power supply adaptor, USB cabel, CD with software and user manual, quick reference, mounting kit for mainframe ▸U2781A.
Software: Keysight Connectivity-Software. Keysight IO Libraries Suite. Software drivers for programming environments: IVI-COM driver. Compatible with Keysight VEE Pro (formerly Agilent VEE, HP-VEE), T&M Toolkit, Microsoft Visual Studio .NET C/C++, Visual Basic 6, National Instruments LabVIEW, The MathWorks MATLAB. Keysight Measurement Manager. A BenchVue software licence (BV0022B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!

3Y Warranty & Keysight CARE

Agilent's Electronic Measurement Group is now Keysight Technologies.
