Keysight U2751A USB Switching Matrix

EOL/this product is obsolete and not available anymore from the manufacturer.

Benfits of the U2751A USB PC Matrix With 32 2-wire Crosspoints

• Modular USB switching matrix with 32 2-wire crosspoints.
• Bandwidth up to 45 MHz.
• Can be used directly at PC USB port or in chassis U2781A.

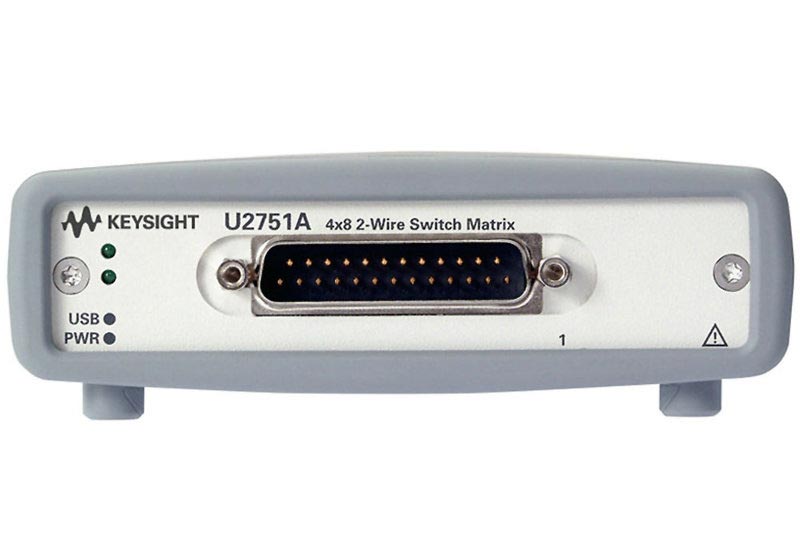

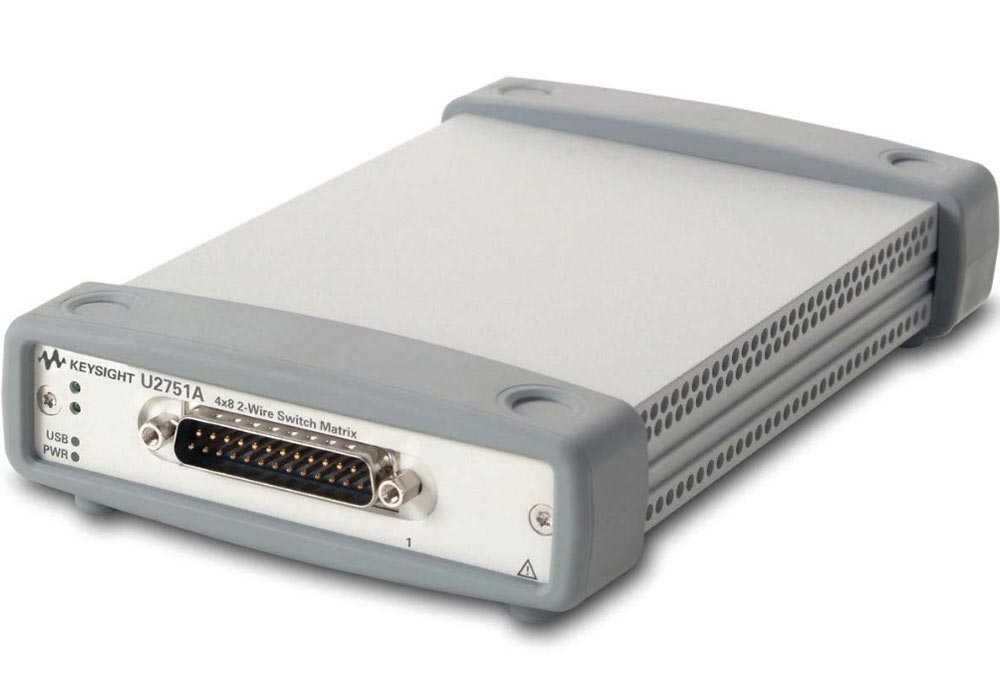

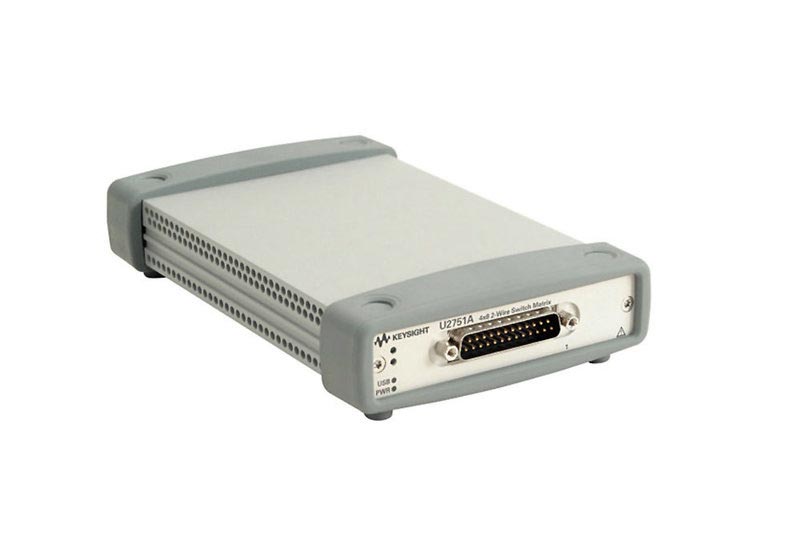

Keysight U2751A USB Switching Matrix

The U2751A USB modular switch matrix offers a flexible connection path between the device under test and the test equipment, thus allowing different instruments to be connected to multiple points on the device under test at the same time. This instrument is able to support measurements at a high bandwidth of up to 45 MHz. It uses the common non-proprietary standard high-speed USB 2.0 interface that provides ease of connectivity - allowing users to set up and configure their tests swiftly with the plug and play feature. Can be used as stand-alone devices directly at a PC USB port or as modular components in a ▸mainframe/chassis U2781A.

• High-speed USB 2.0 (480 MBit/s) TMC 488.2 compatible.
• 32 2-wire crosspoints in 4x8 configuration.
• Minimal crosstalk.
• Bandwidth 45 MHz wihtout terminal block.
• Relay cycle counter.
• Flexibl connector configurations.
• Plug&Play installation and configuration.

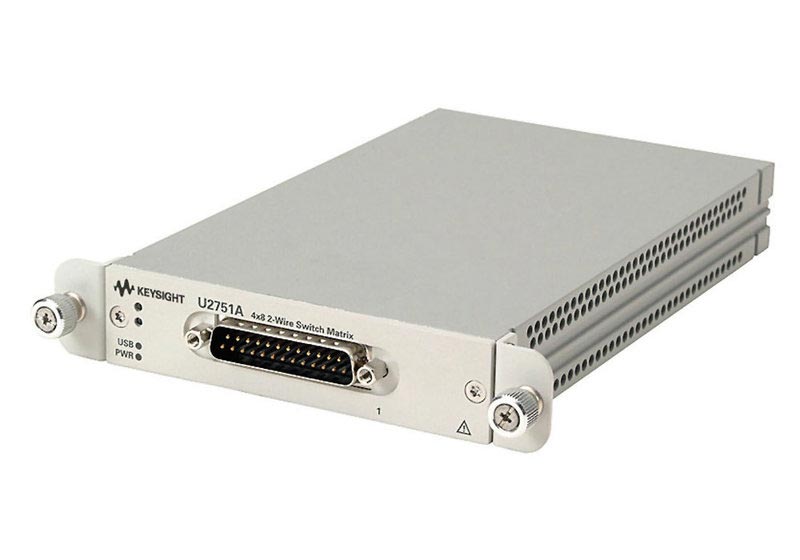

• Used as USB device or modular component in a ▸mainframe/chassis U2781A.

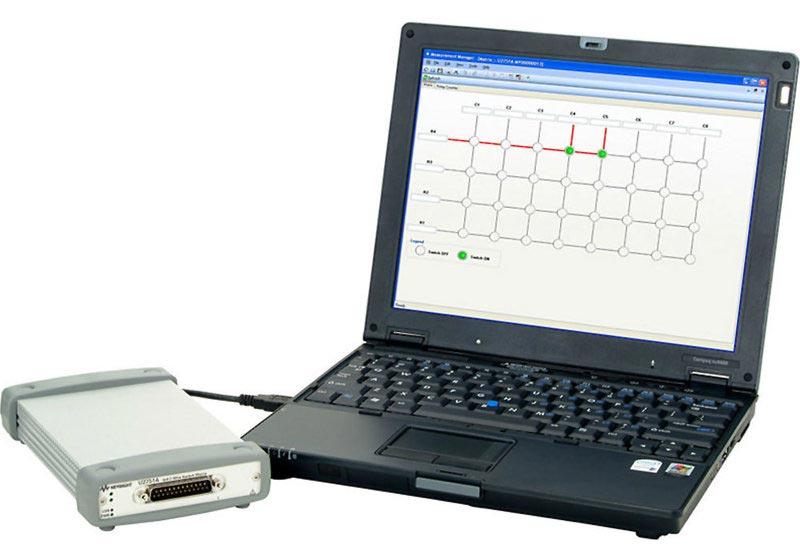

• Incl. software "Keysight Measurement Manager". Compatible with VEE, LabVIEW, Visual Studio and others.

Agilent’s Electronic Measurement Group is now Keysight Technologies.
