Keysight U2741A USB PC Digital Multimeter

Obsolete - not available
Keysight U2741A USB multimeter
This Article is currently not on stock. Please enter your mail and we will notify you when the product is back on stock.
Your request has been accepted
Your mail is incorrect!
The requested article couldnt be found!
An error occured!
Please accept the Privacy Policy
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

EOL/this product is obsolete and not available anymore from the manufacturer.

Benefits of the Modular 5½ Digit USB Digital Multimeter U2741A

  • Modulares USB-Digital-Multimeter mit 5½ Digits.
  • Bis 100 Messungen pro Sekunde.
  • Direkt am PC (USB) oder im Chassis U2781A einsetzbar.

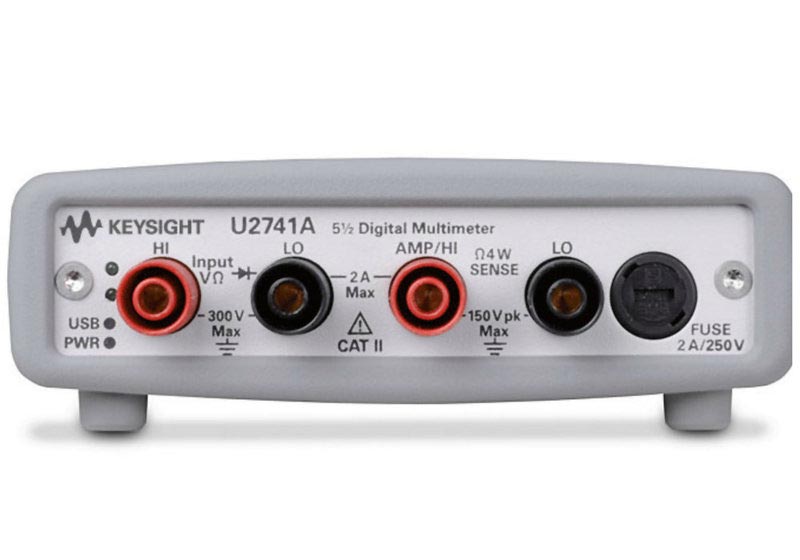

Keysight U2741A USB PC Digital Multimeter

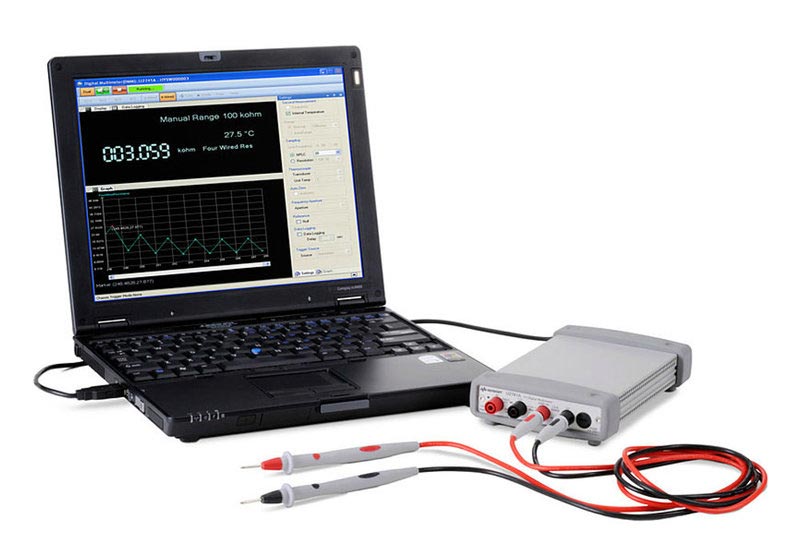

The Keysight U2741A is a 5.5 digit USB digital multimeter (DMM) for up to 100 readings per second. The device can measure AC and DC volt and current as well as resistance, fequency, temperature and others. Can be used as stand-alone devices directly at a PC USB port or as modular components in a ▸mainframe/chassis U2781A.

  • High-speed USB 2.0 (480 MBit/s) TMC 488.2 compatible.
  • Fast measurements up to 100 readings per second.
  • Measures up to 300 VDC with 5.5 digits resolution.
  • Frequency and temperature measurement.
  • Wide voltage measurement range: 1 µVDC...300 VDC or 1 µVRMS...250 VRMS.
  • Wide current measurement range: 1 µADC...2 ADC or 1 µARMS...2 ARMS.
  • Plug&Play installation and configuration.

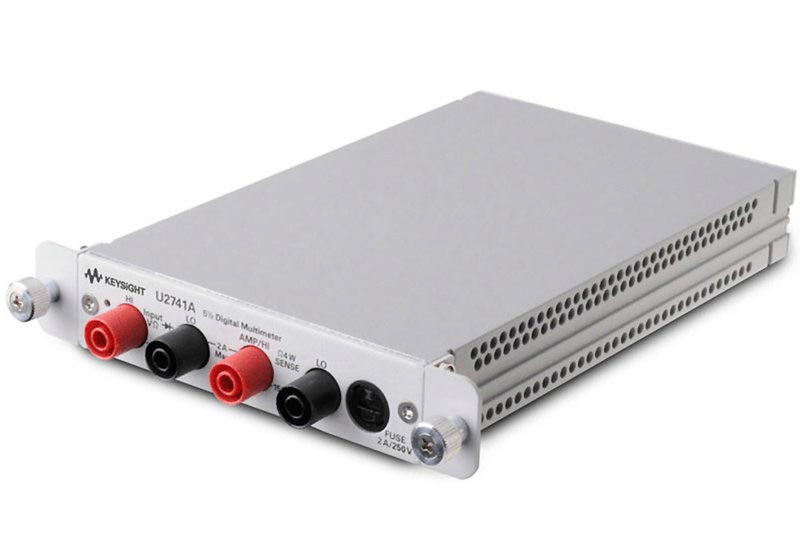

  • Used as USB device or modular component in a ▸mainframe/chassis U2781A.
  • Incl. software Keysight Measurement Manager. Compatible with VEE, LabVIEW, Visual Studio and others.
  • A BenchVue software licence (BV0021B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Included: USB module U 2741A, power supply adaptor, USB cabel, CD with software and user manual, quick reference, mounting kit for mainframe ▸U2781A.
Software: Keysight Connectivity-Software. Keysight IO Libraries Suite. Software drivers for programming environments: IVI-COM driver. Compatible with Keysight VEE Pro (formerly Agilent VEE, HP-VEE), T&M Toolkit, Microsoft Visual Studio .NET C/C++, Visual Basic 6, National Instruments LabVIEW, The MathWorks MATLAB. Keysight Measurement Manager. A BenchVue software licence (BV0021B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!

3Y Warranty & Keysight CARE

Agilent’s Electronic Measurement Group is now Keysight Technologies.

Datasheet_Keysight_U2741A_en.pdf
