MCD USB Test-Board and Toolmonitor

Benefits of the Toolmonitor with Microchip Test Card for USB

• USB Test-Board with multiple functions.
• Getting to know tool monitors intuitively.
• Script editor.

MCD USB Test-Board and Toolmonitor

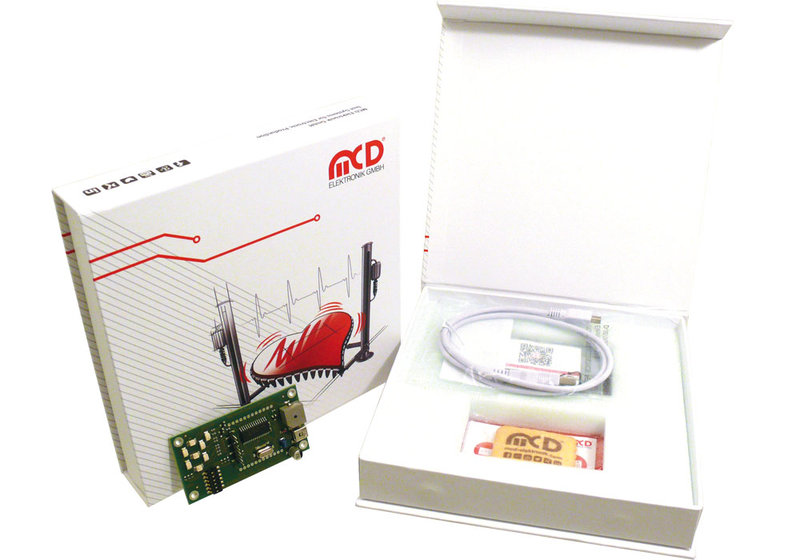

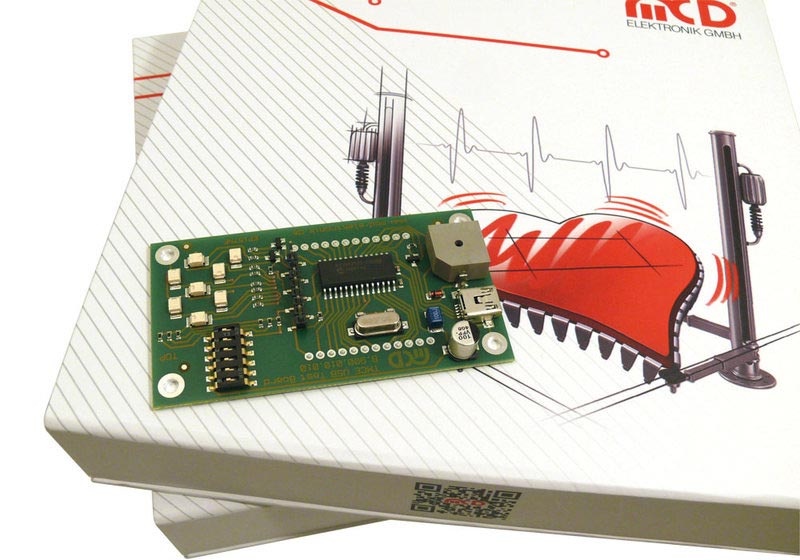

The MCD USB Test-Board has a microchip PIC18F2550 micro processor with a special firmware. Moreover it is equiped with a segment display, 6 switches for setting options and a buzzer for triggering audio signals.

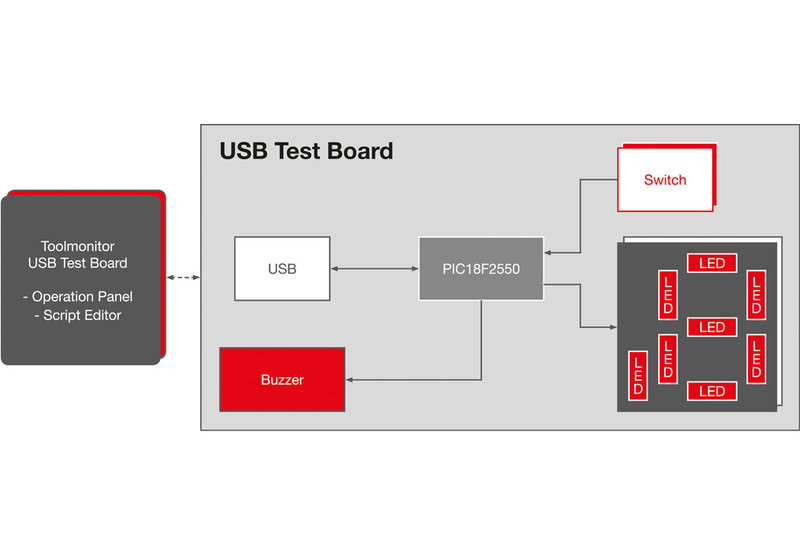

• USB Test-Board with: Microchip PIC18F2550 Microprocessor, 8 LEDs, buzzer, 6 individual adjustable switches, USB interface, individual expendability when adding additional hardware, analog/digital ports adjustable via Toolmonitor.
• With the switches, it is possible to switch back between remote and local operation.
• Software:
  Toolmonitor with operation panel for controlling the LEDs and the Buzzers.
  Display of the switch position and analog inputs.
  Script editor to drive the LEDs and the buzzer in their own processing scripts.
  Creating your own user interface for visualization and control of the MCD Demo-Board.
  » TestManager with exemplary integration of the MCD Demo-Board in own test sequences.
