MCD Toolmonitor for PicoScope

Benefits of the Toolmonitor for Easy Integration of PicoScope USB PC Oscilloscopes as "Embedded Scopes" into Test Dystems

• Conveniently choose channels, measuring range, measurement duration.
• Trigger conditions adjustable.
• Tabular list of measurements.

MCD Toolmonitor for PicoScope

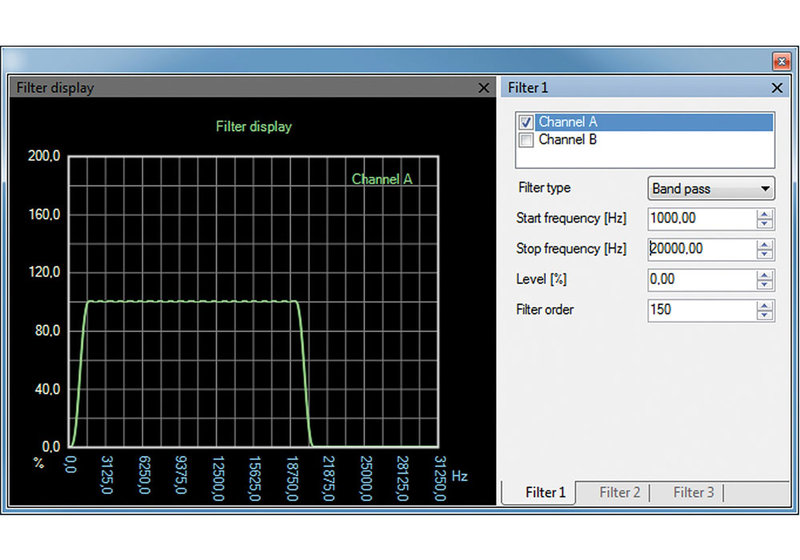

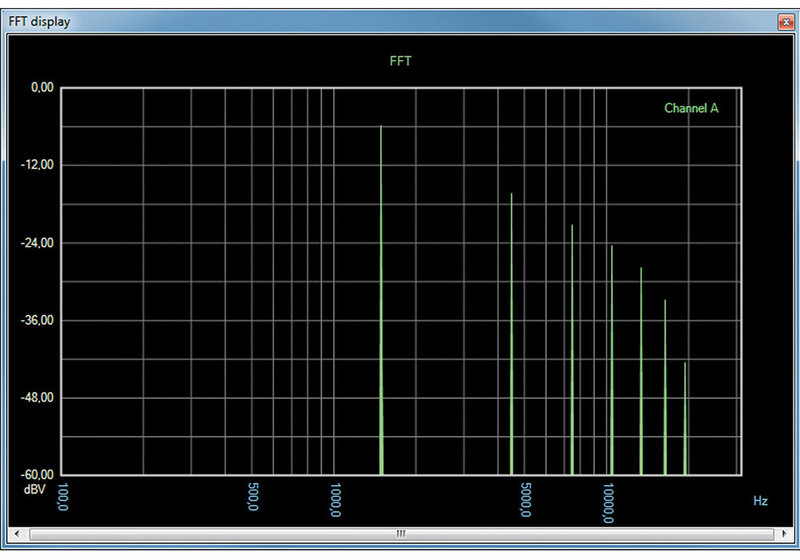

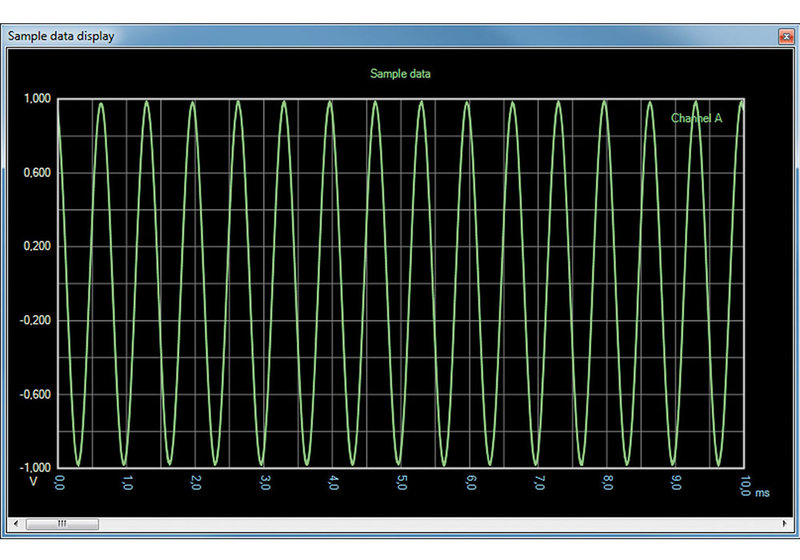

This tool allows you to easily monitor and control the operation of the 2000 series PicoScope oscilloscopes as well as many PicoScope 3000 series models. It offers the possibility to select the channels to be measured, the measuring range, the measurement duration and resolution. Likewise, the trigger conditions are set. The display can be shown in graphic, digital or analog form. The graphical display can be shown in both time and frequency domain (FFT analysis). A variety of measurements can be called upon in a tabular list. Powerful digital filters can be activated for signal processing.

The program interface can be made widely available and adaptable to the user requirements. Once created, configurations can be saved in project files and called upon when needed. With the help of an integrated script-engine, all measurements and adjustments are performed automatically. For third-party software, the Toolmonitor can be fully remote controlled.

COM/DCOM or .Net-Assembly is used as an interface. This allows the Toolmonitor to be integrated in a large number of applications (Microsoft Visual Studio (C#, C++, Visual Basic), Microsoft Office (e.g. Excel), Open Office, LabVIEW, MCD TestManager CE).

Currently these devices are supported (tested): PicoScope 3405D, 3205B, 3204D, 3204B, 4226, 4424.
