Tekbox TBVNA-6000 1Hz to 6GHz Vector Network Analyzer

Special Price
New
8.913,10
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Item available at short notice. Delivery Time ~7-14 workdays
Item available at short notice. Delivery Time ~7-14 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Files/Downloads

Promotion until 2025-6-30: Free Bode analyzer option incl.!

Benefits of the TBVNA-6000 VNA and Combi-RF-Analyzer

  • Two-port VNA/vector network analyzer.
  • 1 Hz...6.0 GHz with 0.1 Hz resolution.
  • Utilities: Spectrum and phase noise analyzer, CW signal generator, oscilloscope, voltmeter, Bode analyzer.

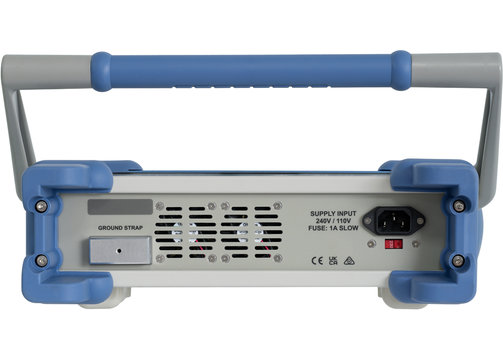

Tekbox TBVNA-6000 1 Hz to 6 GHz Vector Network Analyzer

The Tekbox TBVNA-6000 is a two-port VNA (vector network analyzer). The device offers numerous features for a detailed analysis of RF devices and components. With a bandwidth ratio of 1:6000000000 the TBVNA-6000 covers measurement applications from audio to RF frequencies. Through its fully DC coupled active VSWR bridges, measurements down to 1 Hz are possible without sacrificing accuracy. The instrument uses four independent measurement channels simultaneously for accurate and fast two port measurements. A rich set of software utilities like spectrum analyzer or oscilloscope make this instrument a versatile tool in R&D or test applications.

  • 2-port vector network analyzer/VNA.
  • 1 Hz...6.0 GHz with 0.1 Hz resolution.
  • CW signal generator 1 Hz...6.0 GHz with 0.1 Hz resolution.
  • Four channel 60 MHz digital oscilloscope with 125 MS/s and 14 bit resolution.
  • 1 Hz...6 GHz spectrum analyzer, with an unambiguous frequency range of DC...60 MHz and an active sideband suppression for spurious-free signal measurements up to 6 GHz (under certain conditions).
  • Dual channel spectrum analysis with cross correlation.
  • IQ streaming receiver with file or ethernet streaming capabilities (GNU radio compatible).
  • Power sweep measurements.
  • RF wideband power/voltage measurements.
  • THD analyzer.
  • Phase noise analyzer.
  • General noise and bode measurements.
  • Bode option adds two additional high impedance inputs with 1 MΩ||15 pF for gain/phase measurements and/or as vector voltmeter.
  • Bode option adds an additional high voltage signal output (±10 V high impedance and ±5 V into 50 Ω) with a bandwidth of >200 MHz (at full power).
  • USB 2.0 FullSpeed interface.

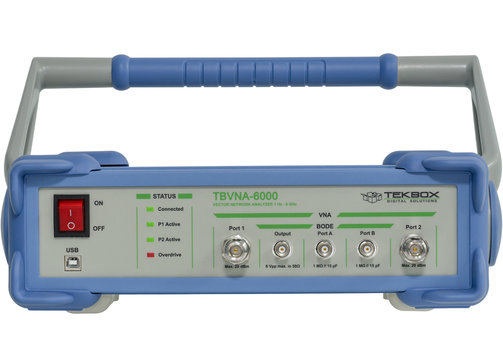

  • All connectors on the front side.

Model Overview

ModelTekbox TBVNA-6000
VNAMeasured parametersS11, S12, S21, S22
Measurement channelsFour parallel receiver chains
Data tracesArbitrary number of traces and diagrams
Data display formatsRectangular, polar and smith diagram, over 50 trace functions, including time domain and group delay
SweepTypes: Linear and logarithmic; triggers: Continuous, single, hold; measured points per sweep: 2...100000
CalibrationSOLT (short, open, load, through), normalization; calibration types: Simple through, 1-port or full 2-port DC-offset calibration
Measurement bandwidth1 Hz...200 kHz adjustable
Frequency range1 Hz...6000 MHz
Frequency step resolution0.1 Hz
Spectrum
and phase noise
analyzer utility
Frequency range1 Hz...6000 MHz
Unambiguous frequency range1 Hz...60 MHz
Parallel channels2
Resolution bandwidth0.1 Hz...3 MHz
Frequency step resolution0.1 Hz
AccuracyFrequency ±25 ppm, amplitude ±1.5 dB typ.
Display functionsRMS, minimum, maximum and average, correlation
Maximum linear input power20 dBm
Phase noise (low noise mode) at 300 MHz<-90 dBc at 100 Hz offset; <-115 dBc at 1 kHz offset; <-115 dBc at 10 kHz offset; <-115 dBc at 100 kHz offset; <-125 dBc at 1 MHz
CW signal generator
utilily
Frequency range1 Hz...6.0 GHz
Frequency step resolution0.1 Hz
Output power range-7...-60 dBm (1 Hz...500 MHz); -5...<-80 dBm (500 MHz...6 GHz)
Oscilloscope, voltmeterResolution14 bit (up to 16 bit with CIC filter)
Channels4
MemoryMax. 8192 points
Sampling rangeReal: 15 S/s...125 MS/s; sin(x)/x: 250 MS/s...4 GS/s
Bandwidth60 MHz (Nyquist), 500 MHz (real)
Protocol analyzerSPI, I2C, RS232
Measurement functions24 measurement functions like RMS, period, etc.
Trigger modesEdge, pulse, manual, auto, A->B
High impedance inputs1 MΩ||15 pF; frequency range 0...500 MHz ±20 V and ±5 V range; 250 MHz ±0.5 V range
Bode analyzer optionMeasured parametersAbsolute level P1, P2, PA, PB and all ratios like PB/PA, P2/P1 etc.
Measurement channels4 channels P1, P2 with 50 Ω and PA, PB with 1 MΩ
Data display formatsRectangular and polar diagram, over 10 trace functions, including time group delay
SweepTypes: Linear and logarithmic; Trigger: Continuous, single, hold; measured points per sweep 2...100000
Measurement bandwidth1 Hz...200 kHz adjustable
Frequency range1 Hz...500 MHz
Frequency step resolution0.1 Hz


Information on product safety:

Manufacturer:
TekBox Digital Solutions Vietnam Co. Ltd., Saigon Hi-Tech Park, Factory 4, 4F, Lot I-3B-1, N6 Street, Thu Duc City, 700 000 Ho Chi Minh City/VNM
www.tekbox.com

Responsible person:
Meilhaus Electronic GmbH, Am Sonnenlicht 2, 82239 Alling/DEU
