TekBox TBDA1/14dB, TBDA1/28dB Wideband Driver Amplifier
Description
Files/Downloads
Benefits of the TekBox TBDA1 Series Amplifiers 14 dB/28 dB
- General purpose gain block.
- RF driver amplifier.
- 3rd order output intercept point +39.8 dBm (40 MHz), +42.8 dBm (2 GHz).

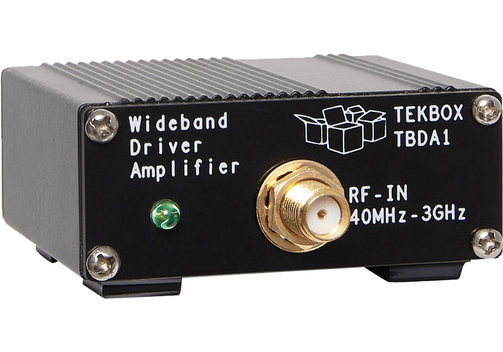

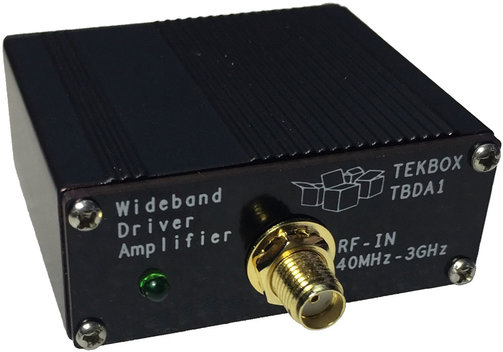

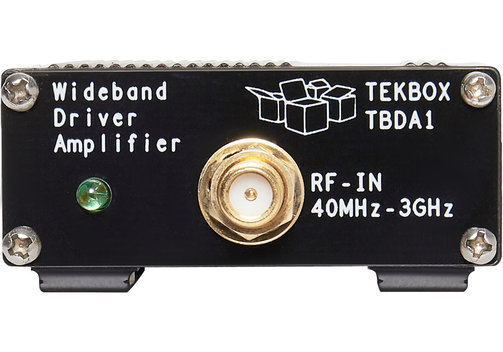

TekBox TBDA1/14dB, TBDA1/28dB Wideband Driver Amplifier
The wideband driver amplifiers of the TekBox TBDA1 series habe a frequency range of 40 MHz to 3 GHz and an output power of +22 dBm at 1 dB compression. They are the ideal solution to boost the amplitude of low power RF sources or to drive power amplifier stages. The TBDA1 wideband amplifiers are available with 14 dB or 28 dB gain.
Model Overview
| Model | TBDA1/14dB | TBDA1/28dB | ||||||||||||||||

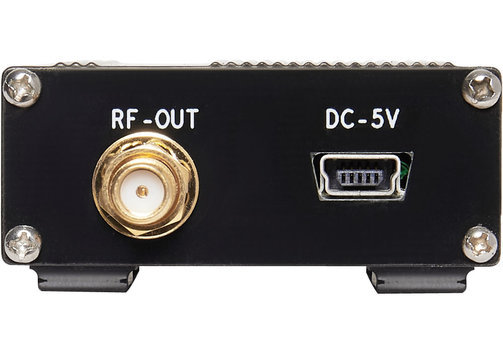

| Input/output | 50 Ω, SMA-female/50 Ω, SMA-female | 50 Ω, SMA-female/50 Ω, SMA-female | ||||||||||||||||
| Supply voltage | Nominal 5 V, typ. 115 mA, Mini-USB-B connector; max. 5.5 V | Nominal 5 V, typ. 225 mA, Mini-USB-B connector; max. 5.5 V | ||||||||||||||||
| Input power | +20 dBm | +6 dBm | ||||||||||||||||
| 1 dB output compression point at 40 MHz | +21.5 dBm | +21.5 dBm | ||||||||||||||||
| 1 dB output compression point at 2 GHz | +22.5 dBm | +22.5 dBm | ||||||||||||||||
| 3rd order output intercept point at 40 MHz | +40 dBm | +39.8 dBm | ||||||||||||||||
| 3rd order output intercept point at 2 GHz | +43 dBm | +42.8 dBm | ||||||||||||||||
| Reverse isolation S12 | -20 dB | < -40 dB | ||||||||||||||||
| Noise Figure | 3...4 dB | 3.1...4.1 dB | ||||||||||||||||
| Gain | 25 MHz | 50 MHz | 100 MHz | 500 MHz | 1 GHz | 1.5 GHz | 2 GHz | 2.5 GHz | 3 GHz | 25 MHz | 50 MHz | 100 MHz | 500 MHz | 1 GHz | 1.5 GHz | 2 GHz | 2.5 GHz | 3 GHz |
| 12 dB | 13.8 dB | 14.2 dB | 14.2 dB | 14.1 dB | 14.2 dB | 13.6 dB | 13.8 dB | 14 dB | 26 dB | 28.4 dB | 28.6 dB | 28.6 dB | 28.8 dB | 28.3 dB | 27.2 dB | 28.5 dB | 28.9 dB | |
