TekBox TBST Shielded Tents, TBSB Shielded Bags, TBGP Ground Plane
- TekBox TBST shielded tents for pre-compliance test:
- Designed to suppress interference from ambient noise.
- Attenuation ~50...70 dB in the range DC...6 GHz.
- Access opening is sealed with conductive Velcro tape.

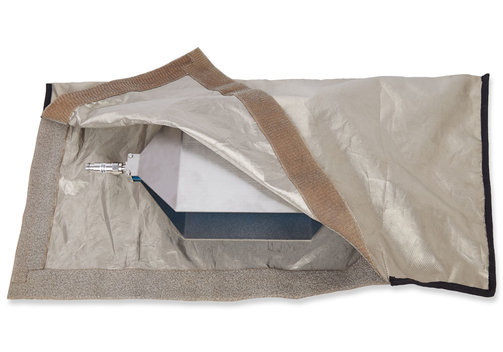

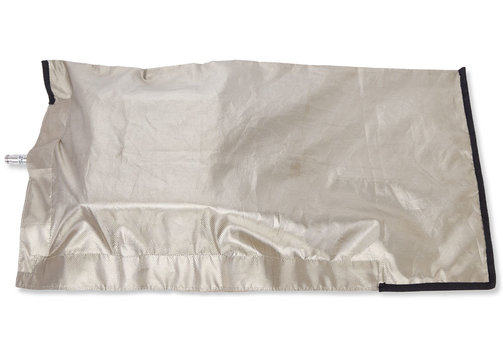

- TekBox TBSB shielded bags for pre-compliance test:
- Designed to suppress interference from ambient noise.
- The shielded bags are a cost-effective alternative to shielded tents for test devices such as LISNs or TEM cells.
- Attenuation ~50 dB in the range from DC...2 GHz

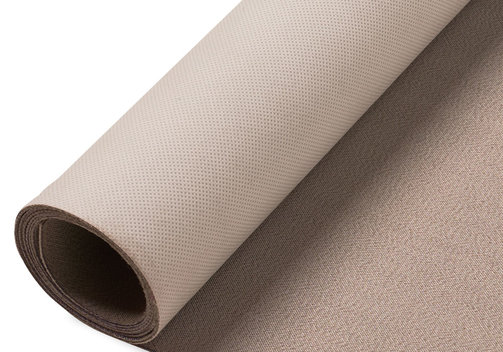

- TBGP ground plane:
- Ground plane for EMC pre-compliance test setups where no permanent installation of a sheet metal ground plane is possible.
- The ground plane is composed from a conductive fabric bonded to a fleece.
- Fabric material: Polyester 45% + Silver 55% conductive fabric, fleece.
Model Overview
| Model | Description | Dimensions | More specifications | |

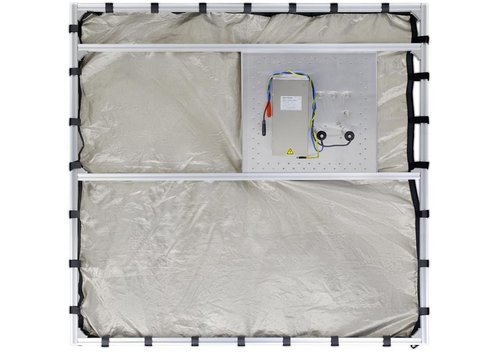

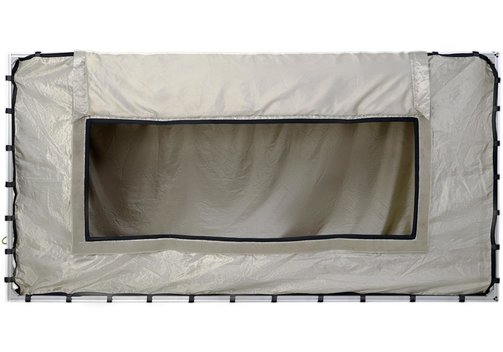

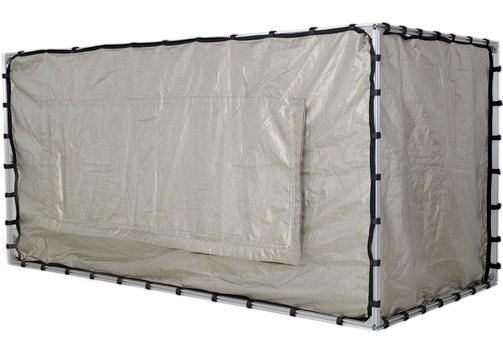

| TBST200/100/100 | Shielded tent | 200 cm x 104 cm x 100 cm | ~50 dB in the range of 10 MHz...6 GHz | Opening dimensions 130 cm x 46 cm; frame: 20 mm x 20 mm extruded aluminium profiles; shielding with two layers of conductive silver fabrics; suspension: Velcro tape; filter panel: 1x 240 V/10 A mains AC filter, C19 socket, 2x 240 V/10 A AC/DC filters, attached cables with banana couplers, 3x N female coaxial feed-through connectors with screw caps, 1x BNC female coaxial feed-through connector with screw caps; internal AC-socket: Pigtail cable with detachable female Schuko socket and country specific AC cables with C13 connector |

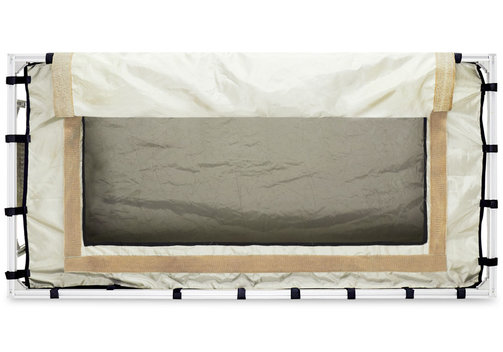

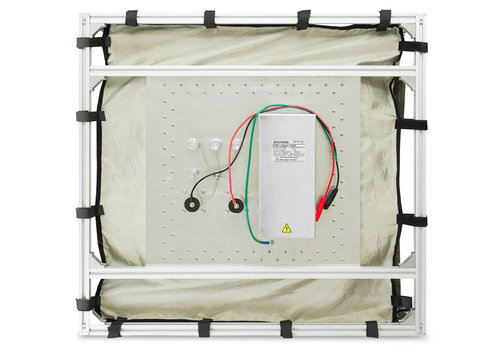

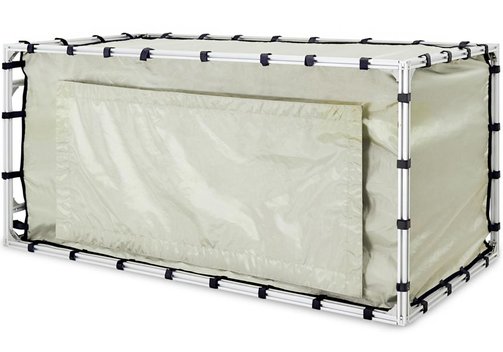

| TBST120/60/60/2-B | Shielded tent | 124 cm x 64 cm x 60 cm | Attenuation ~50...70 dB in the range DC...6 GHz | Opening dimensions 85 cm x 35 cm or 40 cm x 22 cm; frame 20 mm x 20 mm extruded aluminium profiles; shielding with 2 layers of conductive fabrics; seal: Conductive Velcro tape; suspension: Velcro stripes; filter panel: 1x 240 V/10 AAC filter; IEC socket (optional for the smaller tents); 2x 240 V/10 ADC filter; cables with female banana couplers; 3x N-female feed through connector with screw caps; 1x BNC-female feed through connector; internal AC socket: Pigtail cable with detachable female Schuko; weight: 10.8 kg |
| TBST86/49/45/1-B | Shielded tent | 86 cm x 48 cm x 48 cm (without main AC filter) | ||
| TBST86/49/45/2-B | Shielded tent | 86 cm x 48 cm x 48 cm (with main AC filter) | ||

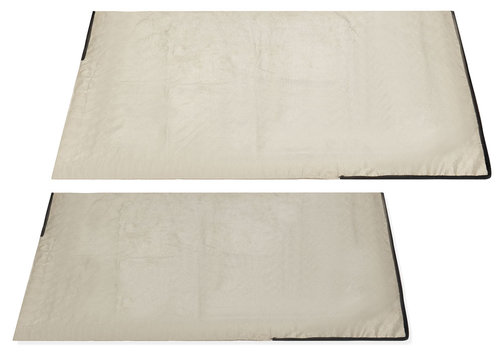

| TBSB-70/40 | Shielded bag | 70 cm x 40 cm; 140 g | Attenuation ~50 dB in the range DC...2 GHz | Opening dimensions TBSB-105/60 diagonal 80 cm; TBSB-70/40 diagonal 60 cm; frame: none; shielding with 2 layers of conductive fabrics; seal: Conductive Velcro tape; filter panel: none |
| TBSB-105/60 | Shielded bag | 105 cm x 60 cm; 250 g | ||
| TBGP-250/140 | Roll up ground plane | 250 cm x 140 cm; fabric thickness 0.7 mm; fabric weight 1.1 kg | Fabric material Polyester 45% + Silver 55% conductive fabric, fleece; contact block dimensions: 96 mm x 40 mm x 7 mm; contact block weight: 0.23 kg; contact block material: Nickel plated | |
