TekBox RF/EMC Test Cables
Accessories for the TekBox EMV Test and Measurement Products and Others
Model Overview
| Model NM-NM | Lenght* | Description (connector material, kink protection) | Connectors |
| NM-NM/30/RM141 | 30 cm | RM141, stainless steel, glued heat shrink | N male to N male |
| NM-NM/35/RG223 | 35 cm | RG223/U, nickel plated brass, plastic sleeve | N male to N male |
| NM-NM/50/RM141 | 50 cm | RM141, stainless steel, glued heat shrink | N male to N male |
| NM-NM/75/RG58 | 75 cm | RG58/U, nickel plated brass, plastic sleeve | N male to N male |
| NM-NM/75/RG223 | 75 cm | RG223/U, nickel plated brass, plastic sleeve | N male to N male |

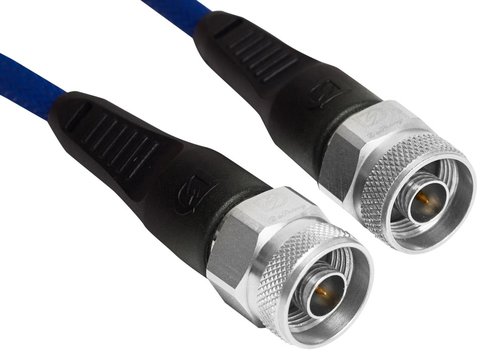

| NM-NM/75/RG142/test | 75 cm | RG142, stainless steel armored cable, glued heat shrink | N male to N male |
| NM-NM/100/RM141 | 100 cm | RM141, stainless steel, glued heat shrink | N male to N male |
| NM-NM/125/RG223 | 125 cm | RG223/U, nickel plated brass, plastic sleeve | N male to N male |
| NM-NM/312/RG213 | 312 cm | RG213/U, nickel plated brass, glued heat shrink | N male to N male |
| NM-NM/300/RG142 | 300 cm | RG142, nickel plated brass, plastic sleeve | N male to N male |
| NM-NM/500/RG223 | 500 cm | RG223/U, nickel plated brass, plastic sleeve | N male to N male |
| NM-NM/500/RG213 | 500 cm | RG213/U, nickel plated brass, glued heat shrink | N male to N male |
| NM-NM/1000/RG142 | 1000 cm | RG142, nickel plated brass, plastic sleeve | N male to N male |
| Model NM-SMAM | Lenght* | Description (connector material, kink protection) | Connectors |
| NM-SMAM/30/RM141 | 30 cm | RM141, stainless steel, glued heat shrink | N male to SMA male |
| NM-SMAM/35/RG223 | 35 cm | RG223/, N: nickel plated brass, plastic sleeve, SMA: gold plated brass, glued heat shrink | N male to SMA male |
| NM-SMAM/50/RM141 | 50 cm | RM141, stainless steel, glued heat shrink | N male to SMA male |
| NM-SMAM/75/RG58 | 75 cm | RG58, N: nickel plated brass, plastic sleeve, SMA: gold plated brass, glued heat shrink | N male to SMA male |
| NM-SMAM/75/RG223 | 75 cm | RG223/U, N: nickel plated brass, plastic sleeve, SMA: gold plated brass, glued heat shrink | N male to SMA male |

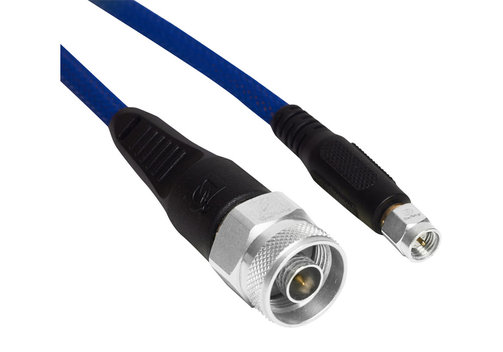

| NM-SMAM/75/RG142/test | 75 cm | RG142, stainless steel armored cable, glued heat shrink | N male to SMA male |
| NM-SMAM/100/RM141 | 100 cm | RM141, stainless steel, glued heat shrink | N male to SMA male |
| NM-SMAM/125/RG223 | 125 cm | RG223/U, nickel plated brass, plastic sleeve | N male to SMA male |
| Model NM-SMAF | Lenght* | Description (connector material, kink protection) | Connectors |
| NM-SMAF/50/RM141 | 50 cm | RM141, stainless steel, glued heat shrink | N male to SMA female |
| NM-SMAF/100/RM141 | 100 cm | RM141, stainless steel, glued heat shrink | N male to SMA female |
| Model NM-BNCM | Lenght* | Description (connector material, kink protection) | Connectors |
| NM-BNCM/35/RG223 | 35 cm | RG223/U, nickel plated brass, plastic sleeve | N male to BNC male |
| NM-BNCM/75/RG58 | 75 cm | RG58, nickel plated brass, plastic sleeve | N male to BNC male |
| NM-BNCM/75/RG223 | 75 cm | RG223/U, nickel plated brass, plastic sleeve | N male to BNC male |
| NM-BNCM/125/RG223 | 125 cm | RG223/U, nickel plated brass, plastic sleeve | N male to BNC male |
| Model BNCM-BNCM | Lenght* | Description (connector material, kink protection) | Connectors |
| BNCM-BNCM/35/RG223 | 35 cm | RG223/U, nickel plated brass, plastic sleeve | BNC male to BNC male |
| BNCM-BNCM/75/RG58 | 75 cm | RG58, nickel plated brass, plastic sleeve | BNC male to BNC male |
| BNCM-BNCM/75/RG223 | 75 cm | RG223/U, nickel plated brass, plastic sleeve | BNC male to BNC male |
| BNCM-BNCM/125/RG223 | 125 cm | RG223/U, nickel plated brass, plastic sleeve | BNC male to BNC male |
| BNCM-BNCM/150/RG6/75Ω | 150 cm | RG6, 75 Ω, nickel plated brass, plastic sleeve | BNC male to BNC male |
| BNCM-BNCM/300/RG6/75Ω | 300 cm | RG6, 75 Ω, nickel plated brass, plastic sleeve | BNC male to BNC male |
| BNCM-BNCM/500/RG6/75Ω | 500 cm | RG6, 75 Ω, nickel plated brass, plastic sleeve | BNC male to BNC male |
| Model BNCM-SMAM | Lenght* | Description (connector material, kink protection) | Connectors |
| BNCM-SMAM/35/RG223 | 35 cm | RG223/U, BNC: nickel plated brass, plastic sleeve, SMA: gold plated brass, glued heat shrink | BNC male to SMA male |
| Model SMAM-SMAM | Lenght* | Description (connector material, kink protection) | Connectors |
| SMAM-SMAM/25/RG316 | 25 cm | RG316/U, gold plated brass, glued heat shrink | SMA male to SMA male |
| SMAM-SMAM/30/RM141 | 30 cm | RM141, stainless steel, glued heat shrink | SMA male to SMA male |
| SMAM-SMAM/50/RM141 | 50 cm | RM141, stainless steel, glued heat shrink | SMA male to SMA male |
| SMAM-SMAM/75/RG316 | 75 cm | RG316/U, gold plated brass, glued heat shrink | SMA male to SMA male |

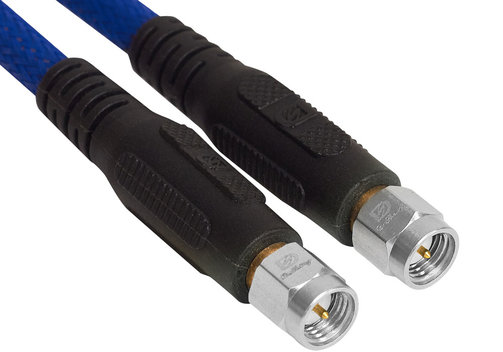

| SMAM-SMAM/75/RG142/test | 75 cm | RG142, stainless steel armored cable, glued heat shrink | SMA male to SMA male |
| SMAM-SMAM/100/RM141 | 100 cm | RM141, stainless steel, glued heat shrink | SMA male to SMA male |
| SMAM-SMAM/125/RG223 | 125 cm | RG223/U, gold plated brass, glued heat shrink | SMA male to SMA male |
| Model SMAM-SMAF | Lenght* | Description (connector material, kink protection) | Connectors |
| SMAM-SMAF/50/RM141 | 50 cm | RM141 SMA-M: stainless steel; SMA-F: gold plated brass, glued heat shrink | SMA male to SMA female |
| SMAM-SMAF/100/RM141 | 100 cm | RM141, stainless steel, glued heat shrin | SMA male to SMA female |
| Model SMAM-SMBF | Lenght* | Description (connector material, kink protection) | Connectors |
| SMAM-SMBF/75/RG316 | 75 cm | RG316/U, gold plated brass, glued heat shrink | SMA male to SMB female |
* All cables can be supplied with different length and other coaxial connectors on request
