Accessories for the TekBox EMV Test and Measurement Products
Model Overview
| Model | Lenght* | Description | Connectors |
| NM-SMAM/75/RG142 | 75 cm | Low loss, double shielded RG142 with additional woven protection jacket, blue color | N-male to SMA-male, stainless steel connectors with ≥1000 cycles, overmoulded strain relief |
| NM-NM/75/RG142 | 75 cm | Low loss, double shielded RG142 with additional woven protection jacket, blue color | N-male to N-male, stainless steel connectors with ≥1000 cycles, overmoulded strain relief |
| SMAM-SMAM/75/RG142 | 75 cm | Low loss, double shielded RG142 with additional woven protection jacket, blue color | SMA-male to SMA-male, stainless steel connectors with ≥1000 cycles, overmoulded strain relief |

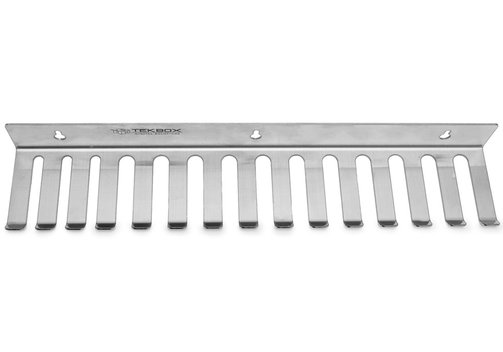

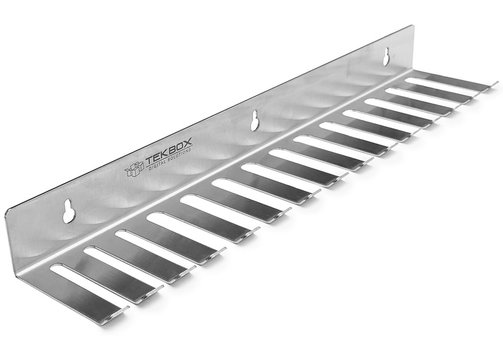

| TBCH1 | Cable holder; WxDxH (mm) 400 x 80 x 40; 500 g; stainless steel, 1.5 mm; spacings: 3x 8 mm, 11x 13 mm | ||

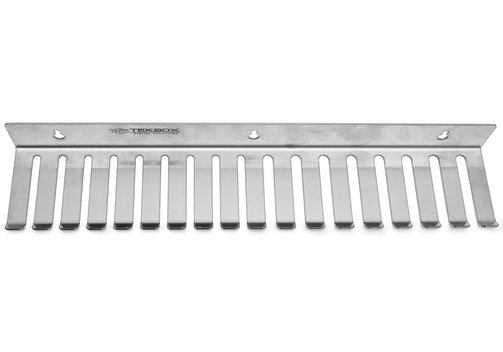

| TBCH2 | Cable holder; WxDxH (mm) 400 x 80 x 40; 500 g; stainless steel, 1.5 mm; spacings: 9x 6 mm, 8x 8.5 mm | ||

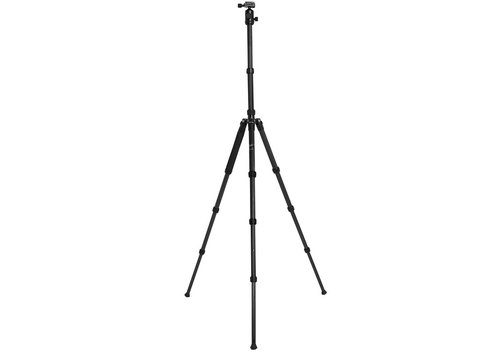

| TBTP1 | 1490 mm tripod | ||

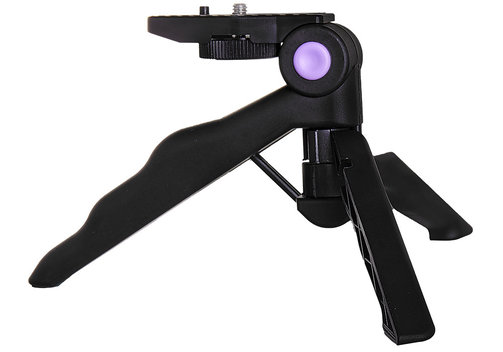

| TBTP2 | Pistol grip tripod | ||

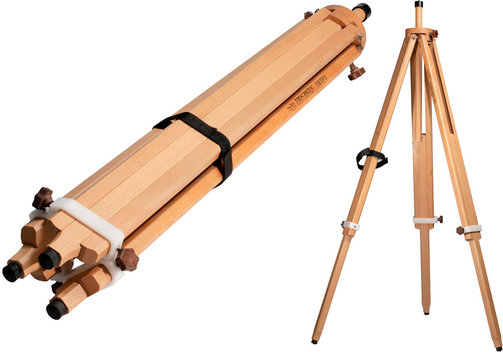

| TBTP3 | Wooden Tripod, suitable for all TekBox antennas and others; beech wood; storage height: 850 mm; height range: 800...1800 mm; bubble level; weight: 3.4 kg, load-bearing: 8 kg; number of sections: 3 | ||
| TBAS1 | RF attenuator set: 3 dB, 6 dB, 10 dB, 20 dB; all: 3 GHz, 2 W | N-connector | |

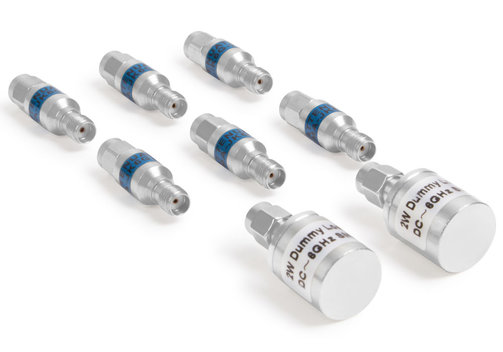

| TBAS2 | SMA attenuator/termination set | Attenuators: 3 dB, 6 dB, 10 dB, 15 dB ±0.5 dB, 20 dB, 30 dB ±0.8 dB; all: DC...6 GHz, VSWR <1.2; power rating: 2 at -55...70°C; up to 125°C with 50% power de-rating | SMA-male/SMA-female; bidirectional |
| Termination: 50 Ω; DC...6 GHz, VSWR <1.1; power rating: 2 W at -55...70°C; up to 125°C with 50% power de-rating | SMA-male | ||

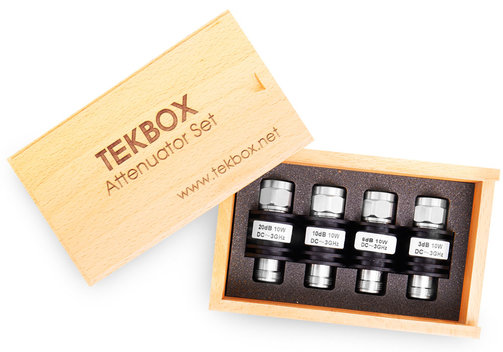

| TBAS3 | 10 W N RF attenuator set: 3 dB, 6 dB, 10 dB ±0.5 dB, 20 dB ±0.8 dB; all: DC...3 GHz, VSWR <1.2; power rating: 10 W at -55...70°C; up to 125°C with 50% power de-rating | N-male/N-female; bidirectional | |

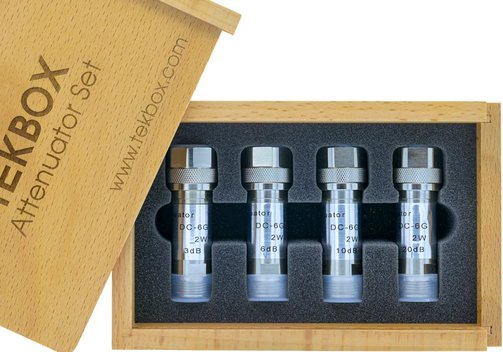

| TBAS4 | RF attenuator set: 3 dB, 6 dB, 10 dB, and 20 dB, DC...6 GHz/2 W; VSWR (3, 6, 10, 20 dB): <1.2; tolerance (3, 6, 10, 20 dB): <±0.3 dB; power rating 2 W at -55...+40°C; up to +70°C with 50% power de-rating; dimensions (mm): 150 x 95 x 45; 490 g | N-male/N-female; bidirectional | |

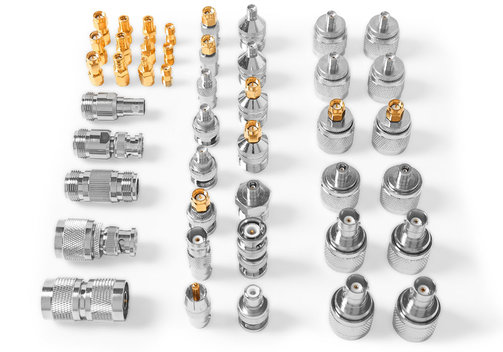

| TBCAS1 | Coaxial adaptor set - 44 pieces of the most common 50 Ω coaxial adaptors in a beech wood box | 1x N-male to N-male 1x N-female to N-female 4x N-male to SMA-female 2x N-male to SMA-male 2x N-male to SMB-female 4x N-male to BNC-female 1x N-male to BNC-male 1x N-female to BNC-male 1x N-female to BNC-female 2x N-female to SMA-female 2x N-female to SMA-male 1x N-female to SMB-female 1x BNC-male to BNC-male 1x BNC-female to BNC-female 1x BNC-male to RCA-female 1x BNC-female to RCA-male 1x BNC-male to SMA-male 2x BNC-male to SMA-female 1x BNC-female to SMA-male 2x BNC-female to SMA-female 3x SMA-female to SMA-female 3x SMA-male to SMA-male 2x SMA-male to SMB-male 2x SMA-male to SMB-female 2x SMA-female to SMB-female | |
* All cables can be supplied with different length and other coaxial connectors on request
