Pico TA368 2000AAC Flex Current Probe for PicoScope4444

2000 AAC Flex Current Probe, with D9-Connector for PicoScope4444

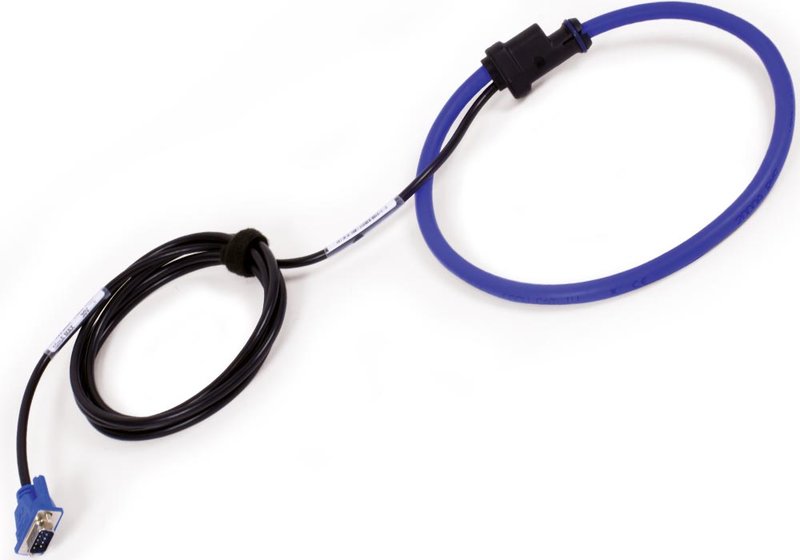

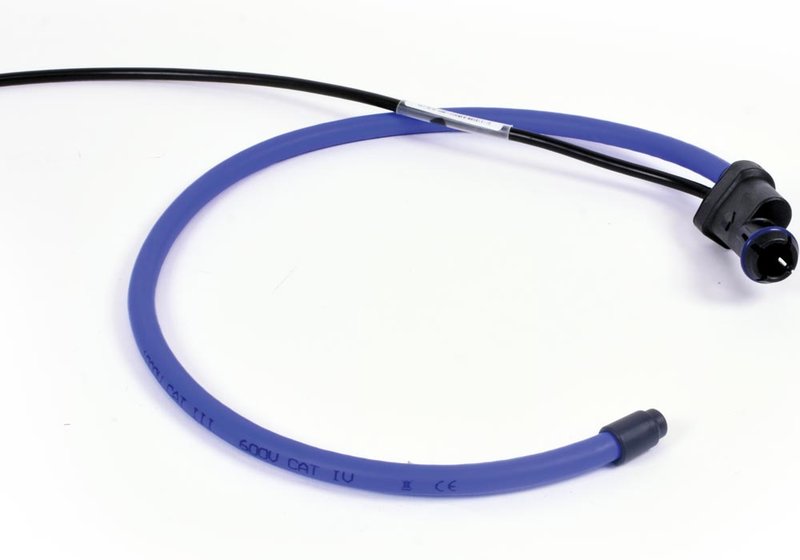

The TA368 is a flexible AC current probe utilizing the Rogowski principle and featuring a built-in integrator. Equipped with the Pico D9 probe interface, it is designed exclusively for use with the PicoScope4444 true differential oscilloscope, which powers the probe and automatically sets the PicoScope software to the correct range and units. The probe can be used to measure currents up to 2000 A from very low frequencies to 20 kHz. The flexible and lightweight measuring head allows quick and easy installation in hard-to-reach areas and with large conductors. The built-in integrator gives a voltage output directly proportional to the primary current.

• Measuring range: 2000 AAC.
• Output sensitivity (AC coupled): 0.7 mV/A.
• Accuracy (45...65 Hz): ±1% of reading ±1 A.
• Minimum load: 100 kΩ for specified accuracy.
• Frequency range: 10 Hz...20 kHz (-1 dB).
• Phase (45...65 Hz): <±1°.
• Position sensitivity: ±2% of reading.
• External field: ±0.2% of range with cable, >100 mm from the probe.
• Noise: 0.6 A typical.
• Temperature coefficient: ±0.1%/°C.
• Power supply: 5 V nominal via PicoScope4444.
• Dimensions: Probe length 610 mm, double-insulated; probe diameter 9.9 mm; output cable 2 m.
• IP65.
• Operating temperature: –20...+65°C.
• Safety standards: EN61010-1, EN61010-2-032, 1000 V_RMS Category III, 600 V_RMS Category IV, rated for continuous use.
• EMC: EN61326-2-2.
