Icron USB 3-2-1 Starling 3251C 1-Port USB 3.2 Gen 1 Type-C 10m Extender
Benefits of the Icron Starling 3251C USB Extenders
- Very compact, short-distance USB point-to-point extension.
- Supports all USB 3.2 Gen 1 (5 Gbps) device types.
- 10 m distance via CM or Plenum cable.

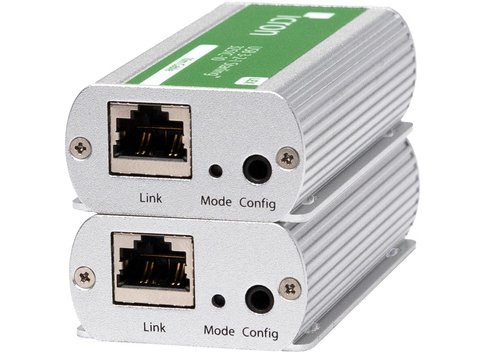

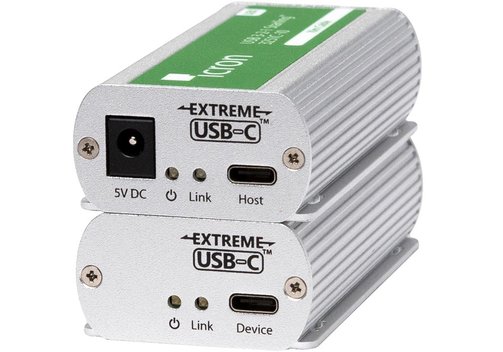

Icron USB 3-2-1 Starling 3251C 1-Port USB 3.2 Gen 1 Type-C 10 m Extender System
The Icron USB 3-2-1 Starling 3251C series provides short-distance extension with all USB 3.2 Gen 1 (5 Gbps) device types across a point-to-point connection up to 10 m and is backwards compatible to USB 2.0 and 1.1. The extension solution consist of a LEX (local extender) and REX (remote extender). The devices are connected with CM or Plenum rated cable. The modules are bus-powered with an optional DC input on the LEX.
- USB 3.2 Gen 1 data rate up to 5 Gbps.
- Supports all USB 3.2, 2.0, 1.1 devices simultaneously at full bandwidth.
- USB-C port connectivity.
- Bus-powered with optional DC input (LEX).
- Single 10 m CM or Plenum rated cable.
- FCC and CE (Class A) compliant.
- Includes the ExtremeUSB-C suite of features:
Transparent USB extension supporting USB 3, 2 and 1.
True plug and play; no software drivers required.
Works with all major operating systems: Windows, macOS, Linux, and Chrome OS. - Applications:
Remote storage.
Conference rooms.
Security and monitoring.
Test and measurement.
Model Overview
| Model | Icron USB 3-2-1 3251C-10 | Icron USB 3-2-1 3251C-10PK |
| Ordering code | 00-00456 | 00-00457 |
| Range | 10 m via CM cable | 10 m via Plenum cable |
| USB speeds | SuperSpeed 5 Gbps, High-Speed, Full-Speed, Low-Speed | |
| USB bandwidths | Up to 5 Gbps | |
| Device compatibility | All device types and classes (control, interrupt, isochronous, and bulk) | |
| Host compatibility | OHCI, UHCI, EHCI, xHCI | |
| Available current at REX | 900 mA | |
| Max number of USB devices | 30, including hubs | |
| Environmental | Operating temperature 0...50°C, 20...80% rel. humidity, non-condensing | |
| Compliance | EMC FCC (Class A), CE (Class A); RoHS2/3 (CE) | |
| Power supply | Bus-powered with optional DC input on LEX (power supply as an optional accessory) | |
| Connectors | USB 3.2 type-C port at LEX and REX (Gen 1 receptacle on REX), ARJ45 link port at LEX and REX, 5 V/3 A DC jack (LEX) | |
| Dimensions (mm) | 86 x 45 x 24, silver anodized aluminum housing. Optional USB mounting kit, 4 brackets | |
Included: The Icron USB 3-2-1 Starling 3251C system includes a LEX, REX, USB 3.2 Gen 1 USB-C cable, 10 m link cable (CM or Plenum rated depending on model), cable pulling eye, quick start guide, and two-year warranty.
Frequently Asked Question:
Question: USB 1-2-3... will the USB extensions really be compatible with my USB devices?
Answer: The Icron extensions are extensively tested and in almost all cases run without problems with all devices. The Spectra-3022 and 3011-15 models are not backward compatible with USB 2.0 and 1.1, nor do they work with some PicoScope USB oscilloscopes. The solution is to use the Raven or Starling models. If in doubt, talk to our specialists.
Question: Over which medium do the Starling 3251C models transfer the USB data?
Answer: Depending on the version, the Starling devices work with special 10 m CM ("communications multipurpose") cable or fire rated plenum cable. The cable is included in the scope of delivery.
Question: What software do the Icron Starling USB extensions work with?
Answer: Like all Icron USB extensions, the Starling models work transparently, which means that no special driver software, configuration or communication software is required for USB data transfer.
Information on product safety:
Manufacturer:
Icron (An Analog Devices Brand), 4664 Lougheed Hwy, Suite 221, Burnaby, BC V5C 5T5/CAN
www.icron.com
