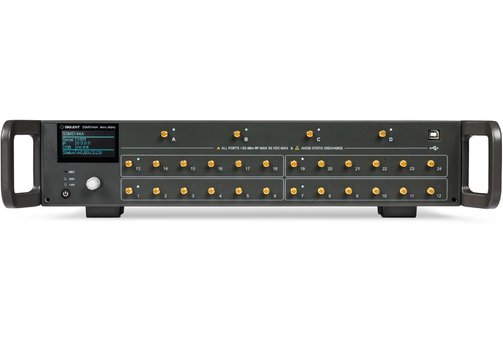

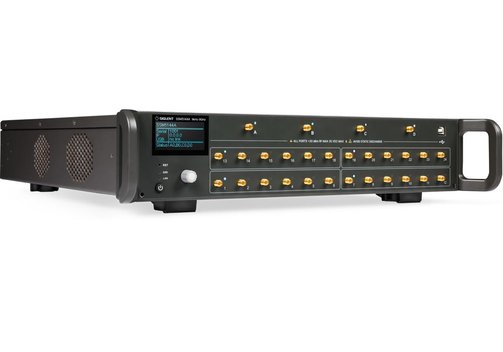

Siglent SSM5000A Series RF Switch Matrix
Siglent SSM5122A, SSM5124A, SSM5142A, SSM5144A, SSM5321A, SSM5432A up to 9 or 26.5 GHz
The Siglent SSM5000A is a switch matrix that can expand the number of test ports of network analyzers, signal sources, spectrum analyzers and other RF equipment. The versions of the matrix offer 2 or 4 input ports, 6, 12, or 24 output ports and a frequency range of 9 kHz to 9 GHz or 100 kHz or 26.5 GHz.
- RF switch matrix
- Characteristic impedance 50 Ω.
- Highest frequency 9 GHz or 26.5 GHz.
- Number of input ports max. 4.
- Number of output ports max. 24.
- RF connector 3.5 mm female.
- Input power max. 20 dBm.
- Input DC voltage 35 V.
- Interfaces: LAN/Ethernet, USB Device, Direct Control (in), Direct Control (out).
- Screen size: 2.4"/6 cm.
Model Overview
| Model | SSM5122A | SSM5124A | SSM5142A | SSM5144A | SSM5321A | SSM5432A |
| Number of input ports | 2 | 2 | 4 | 4 | 2 | 4 |
| Number of output ports | 12 | 24 | 12 | 24 | 6 | 12 |
| Frequency range | 9 kHz...9 GHz | 9 kHz...9 GHz | 9 kHz...9 GHz | 9 kHz...9 GHz | 100 kHz...26.5 GHz | 100 kHz...26.5 GHz |
| Display | 2.4"/6 cm LCD | |||||
| Interfaces | USB host and device, LAN/Ethernet, direct control in/out | |||||
| Dimensions (mm) | 89 x 425 x 418 mm, 5.3 to 6.65 kg depending on model | |||||
Included:Switching matrix SSM 5122, 5124, 5142, 5144, 5321, or 5432, quick-start, power-cable, USB-cable, certificate of qualification.
Information on product safety:
Manufacturer:
SIGLENT Technologies CO., LTD., Blog No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao’an District, Shenzhen, 518101/CHN
www.siglent.com
(EU branch Germany)
