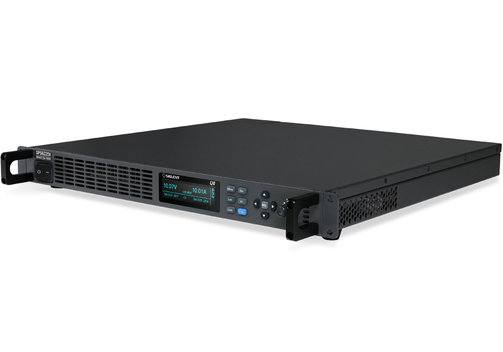

Siglent SPS6000X Wide-Range Switching DC Power Supply
Benefits of the SPS6225X and SPS6150X Programmabel Power Supply up to 1500 W
- Very compact form factor 1U, 19" for 1500 W.
- Rated output values 200 V/25 A or 100 V/50 A.

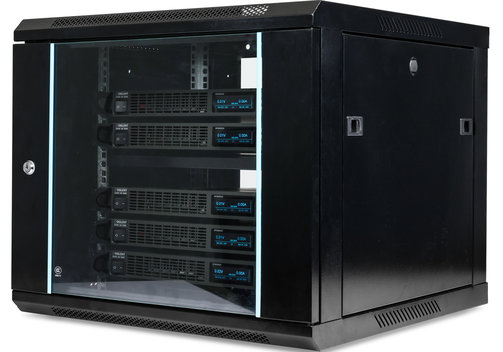

- Max. 5 devices in parallel for up to 7500 W.
Siglent SPS6000X Wide-Range Switching DC Power Supply
The Siglent SPS6000X series are very compact wide-range switching DC power supplies. In a 1U/19" form factor they offer 1500 W output power with either 200 V/25 A or 100 V/50 A rated output. Up to 5 devices an be connected in parallel for a total of 7500 W. The power supplies are equipped with various features such as list sequence programming, CV/CC priority modes, OCP, OVP, OTP, an LPP protection modes.
Compared to linear DC power supplies, switching DC power supply offer a higher output power, higher efficiency, lower heat dissipation, compact transformer size, broader input voltage range (but can have a higher ripple compared to linear devices).
Typical applications are: High-power and high-current scenarios in automotive, telecommunications, electric power systems, renewable energy.
- Wide range programmable switching DC power supplies.
- Rated output of 200 V/25 A or 100 V/50 A.

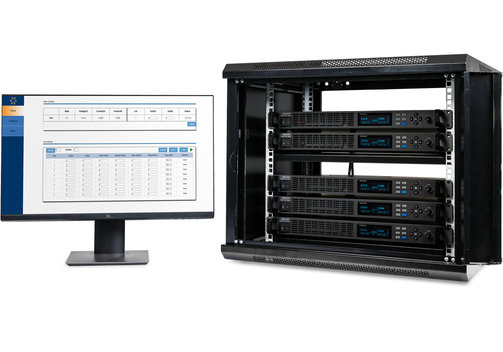

- Up to 1.5 kW of output power; multiple units can be connected in parallel to increase total power capacity for high-current applications.
- Minimum resolution 10 mV/10 mA.
- Load transient recovery time (load change from 50...100%) <2.5 ms.
- Output voltage and current rise times adjustable.
- Two output modes: Constant voltage (CV) and constant current (CC).
- List sequence programming mode to easily perform voltage or current step profiles.
- Safety features include over-voltage, over-current, power limit, and over-temperature protection (OVP, OCP, LPP, OTP).
- High brightness 3.12"/7.9 cm OLED display.

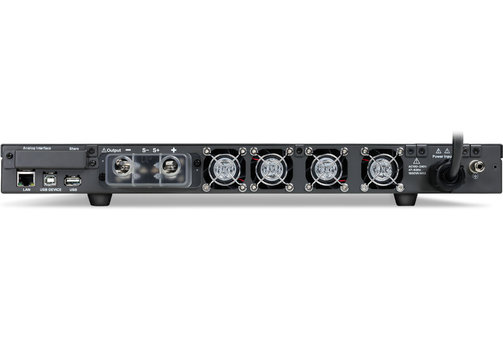

- USB, LAN, and external analog control port.
- Compact 1U (44 mm) 19" form factor.
Model Overview

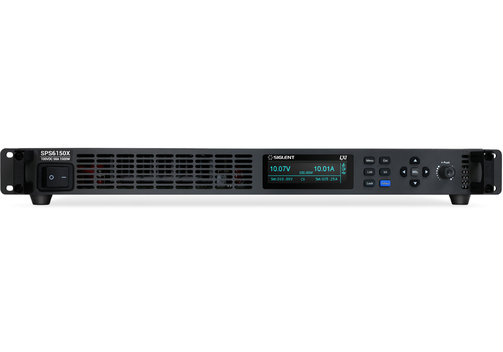

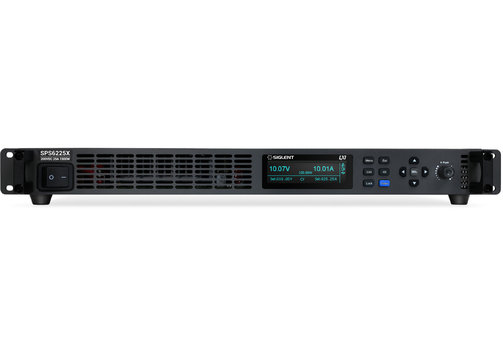

| Model | SPS6225X | SPS6150X |
| Rated output voltage | 200 V | 100 V |
| Rated output current | 25 A | 50 A |
| Total rated output power | 1500 W | 1500 W |
| Resolution | 10 mV, 10 mA | |
| Ripple and noise | (Noise bandwidth 20 MHz, ripple bandwith 5 Hz...1 MHz) | |
| Ripple (peak to peak, at 220 VAC input): 220 mV (RMS: 39 mV) | Ripple (peak to peak, at 220 VAC input): 120 mV (RMS: 30 mV) | |
| More features | List function with 50 steps, adjustable rise and fall slopes for output voltage and current, CV/CC (constant voltage, constant current) priority mode, supports parallel connection of up to 5 of the same model for a total of 7500 W | |
| Protection | OCP (over current protection), OVP (over voltage protection), OTP (over temperature protection), LPP (limited power protection) | |
| Display | 3.12"/7.9 cm OLED | |
| Interfaces | USB, LAN, external analog control port, optional USB-to-GPIB adaptor | |
| Form factor | 19", 1U (44 mm) | |
Included: Power supply SPS 6225X or 6150X, power cord, output guard, USB cable, quick start, and calibration certificate.
