Siglent SPD3303C Linear DC Power Supply, 32V/3,2A

Special Price
Scaled Prices
taking 1 pc.
€ 288,91
taking 3 pc.
€ 274,46
288,91
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Ready for dispatch. Delivery Time ~1-3 workdays
Ready for dispatch. Delivery Time ~1-3 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Files/Downloads

Price advantage for online purchases in the web shop - 2.5% compared to the Siglent list price!

Benefits of the Siglent SPD3303C Programmable DC Power Supply

  • High-resolution and high-precision output.
  • LED display.
  • Five groups of internal system parameter storage.

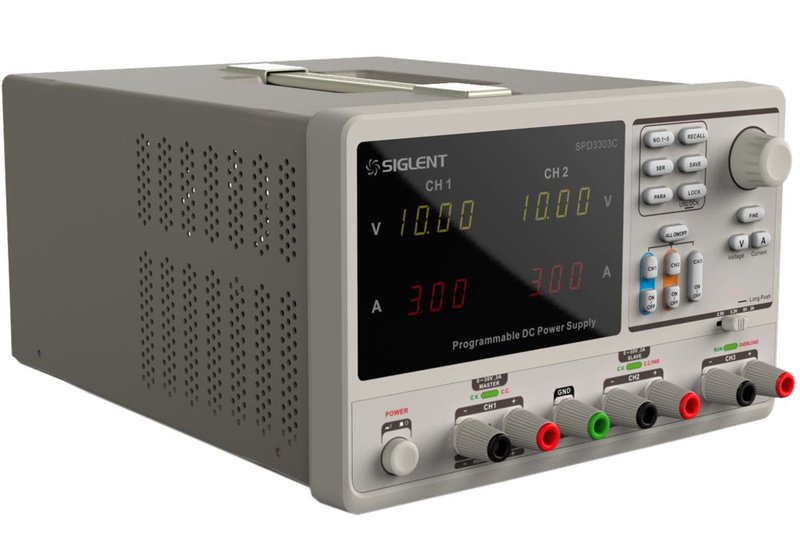

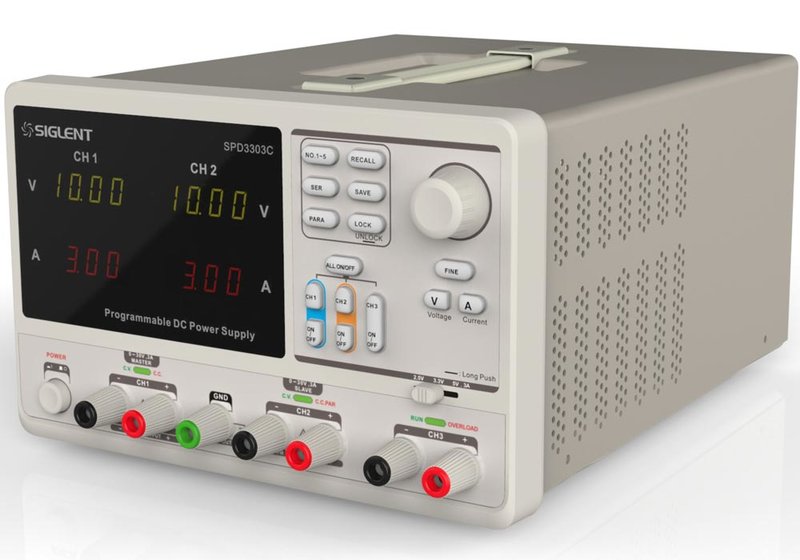

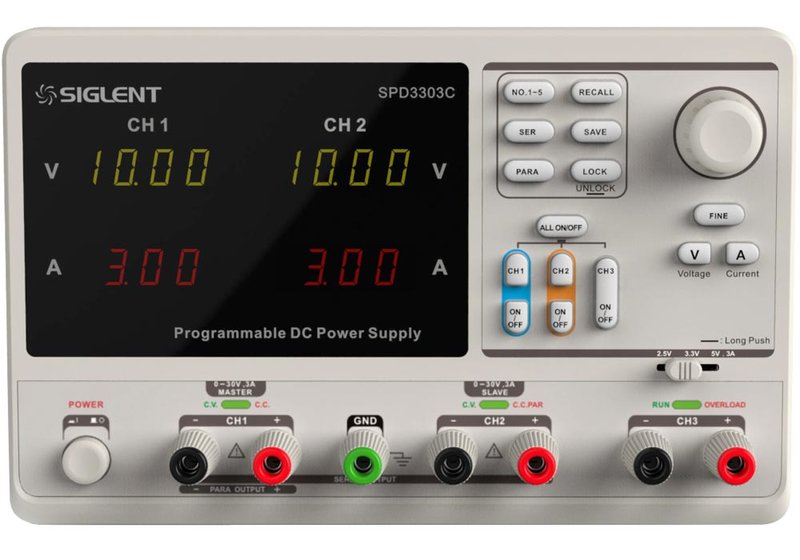

Siglent SPD3303C Linear DC Power Supply, 32 V/3,2 A

The SPD3303C programmable linear DC power supply has an LED-display and is both lightweight and multi-functional. It offers three independent outputs: two sets of adjustable voltage and a fixed set of selectable voltage 2.5 V, 3.3 V, and 5 V. In addition, it has an output short-circuit and overload protection. The total power is 220 W. It possesses an independent series/parallel output mode. The SPD3300C is a high performance-to-price product that can be used in various types of production and research environments.

  • 3 independently controlled and isolated outputs: 2x 32 V/3.2 A, 1x 2.5 V/3.3 V/5 V/3.2 A, total power 220 W.
  • Resolution: 10 mV/10 mA
  • Supports panel timing output functions.
  • 100 V/120 V/220 V/230 V compatible design, to meet the needs of different power grids.
  • Intelligent fan for temperature control, effectively reduces noise.
  • Five groups of internal system parameter storage. Supports data storage space expansion.
  • USB interface; supports SCPI commands.
  • PC software included (download).

Model Overview

Modell SPD3303C
Channels Channel 1 Channel 2 Channel 3
Output voltage 0...32 V 0...32 V 2,5/3,3/5,0 V
Output current 0...3.2 A 0...3.2 A 3.2 A
Resolution 10 mV/10 mA
Total power 220 W
Display LED display
Dimensions (mm) 275 x 225 x 136; 7.5 kg
Interface USB

Accessories: SPD 3303C, quick start, power cord, USB cable.
