Siglent SDG1000X Plus Series Function/Arbitrary Waveform Generators up to 60MHz
Benefits of the Siglent SDG1000X Plus Signal Generators
- Precision signal generator up to 60 MHz for standard waveforms, arbitrary signals, pulse, noise.
- 1 GS/s digital-to-analog converter sampling rate, 16 bit vertical resolution.
- Versatile modulations, burst and sweep, frequency counter.

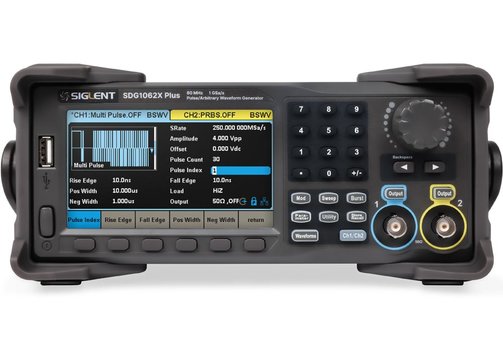

Siglent SDG1000X Plus Series Function/Arbitrary Waveform Generators up to 60 MHz

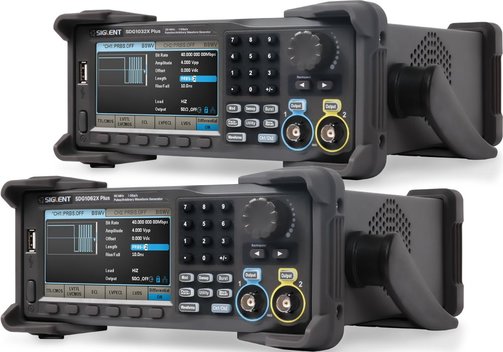

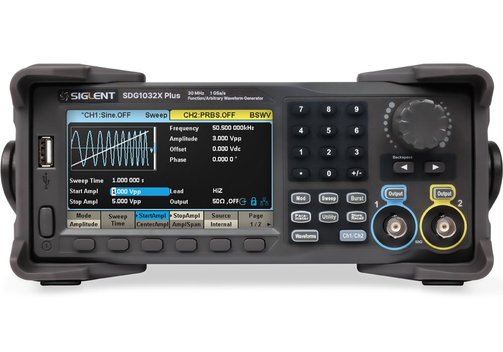

Siglent SDG1062X Plus to 60 MHz, SDG1032X Plus to 30 MHz
The Siglent SDG1000X Plus series offers 2-channel function and arbitrary waveform generators with a maximum bandwidth of 30 or 60 MHz and an excellent D/A system with a sampling rate of 1 GS/s and a vertical resolution of 16 bit. The devices work with the traditional DDS as well as the innovative TrueArb and EasyPulse technology. TrueArb delivers signals with high fidelity and low jitter. In addition, the SDG1000X Plus devices also allow the generation of PRBS patterns, the output of sequence signals and the output of double pulses to meet a wider range of application requirements.
- Dual-channel function/arbitrary waveform generators.
- Bandwidth up to 30 or 60 MHz.
- Amplitude up to 20 Vpp.
- 1 GS/s D/A sampling rate.
- 16 bit vertical resolution.
- Innovative TrueArb technology, based on a point-by-point architecture, supports any 24 pts...8 Mpts arbitrary waveform with a sampling rate in range of 1 µS/s...250 MS/s.
- Supports sequence wave playback function, maximum storage depth per channel 8 Mpts.
- Innovative EasyPulse technology, capable of generating lower jitter square or pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment.
- Multi-pulse output function can be used to measure the switching parameters of power equipment and evaluate its dynamic characteristics.
- Supports PRBS up to 40 Mbps.
- Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM; Sweep and Burst function.
- Harmonic function.
- Waveform combining function (max. 16th order).
- High precision frequency counter.
- 196 built-in arbitrary waveforms.
- Built-in web-server supports instrument control via web browser.
- Standard interfaces: USB Host, USB Device (USBTMC), LAN/Ethernet (VXI-11).
- 4.3"/10.9 cm LCD display.
Model Overview
| Model | SDG1032X Plus | SDG1062X Plus | |
| Channels | 2 | ||
| Max. bandwidth | 30 MHz | 60 MHz | |
| Sampling rate | 1 GS/s (4x interpolation) | ||
| Vertical resolution | 16 bits | ||
| Arbitrary waveform length | 8 Mpts/channel | ||
| Max. amplitude | ±10 V | ||
| Waveforms | Sine | 1 µHz...30 MHz | 1 µHz...60 MHz |
| Square | 1 µHz...20 MHz | ||
| Pulse | 1 µHz...20 MHz | ||
| Ramp | 1 µHz...2 MHz | ||
| Noise | 60 MHz (-3 dB bandwidth) | ||
| DC | Output range -10...10 V (HiZ load) | ||
| Arbitrary | Frequency setting range 1 µHz...20 MHz; waveform length 16 kpts (DDS)/24 pts...8 Mpts (TrueArb), sampling rate 1 µS/s... 250 MS/s (TrueArb); vertical resolution 16 bit | ||
| Modulations, burst, and sweep | AM, FM, PM, ASK, FSK, PSK, PWM; burst - carrier sine, square, ramp, pulse, noise, arb; type: count (1...1000000 cycles), infinite, gated; trigger source internal/external; sweep - carrier sine, square, ramp, arb; type: Linear, logarithmic; direction: Up, down; trigger source internal/external/manual | ||
| Frequency counter | Frequency, period, positive/negative pulse width, duty cycle; 100 mHz...200 MHz (DC coupling) or 10 Hz...200 MHz (AC coupling) | ||
| Interfaces | USB host and device (USBTMC), LAN/Ethernet (VXI-11) | ||
| Display | 4.3"/10.9 cm TFT-LCD; 24 bit colour depth | ||
| Dimensions (mm) | 260 x 107 x 296; max. 4.35 kg | ||
Included: Signal generator SDG 1032X Plus or 1062X Plus, quick start, power cord, USB cable, calibration certificate.
