Sefram 9858 Solar Power Meter, Solarimeter
Description
Files/Downloads
Benefits of the Sefram 9858 Solar Radiation Measurement Instrument
- Solar power meter to optimize photovoltaic installations.
- Quick, reliable, and ultra-precise sunlight measurements.
- Detachable sensor can be positioned as close as possible to its application.

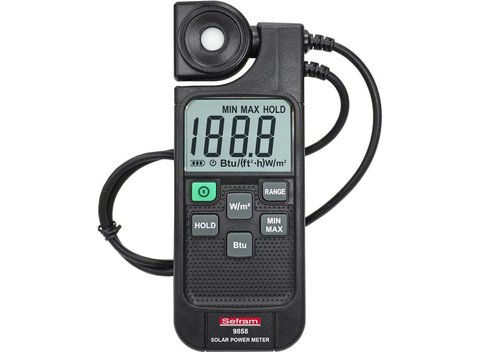

Sefram9858 Solar Power Meter

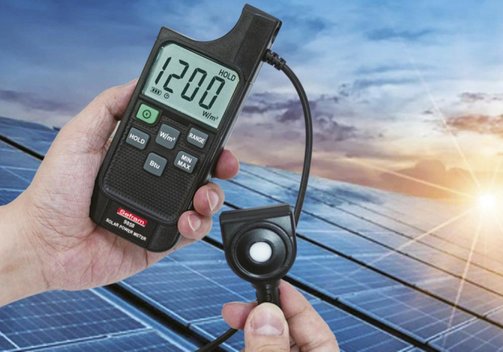

The Sefram9858 solar power meter is an instrument for measuring the intensity of solar radiation (measurement of electromagnetic waves). It can also be used to determine the optimum angle of incidence when positioning a solar panel. The Sefram9858 solarimeter is also ideal for meteorology (sky brightness) or for measuring light received on the ground in forests or greenhouses.
- Solar power measurement.
- Detachable sensor for remote measurement.
- Min., max., and hold functions.
- Selectable measurement units: 1 W/m² or 1 BTU/(ft²*h).
- Adjustable auto shut-off.
- Tripod slot under sensor.
- Very easy to use.
Model Overview
| Model | Sefram9858 |
| Measuring range | 0...1999 W/m , 0...634 BTU/(ft*h) |
| Resolution | 0.0...1 W/m, 0.0...1 BTU/(ft*h) |
| Spectral response | 400...1100 nm |
| Over range | Display "OL" |
| Accuracy | Typically within ±10 W/m ±3 BTU/(ft*h] or ±5% whichever is greater in sunlight; additional temperature induced error ±0.38 W/m per °C [±0.12 BTU/ft*h) per °C] from 25°C |
| Response time | 0,5 s |
| Light detector | SI Photodiode |
| Pwer supplay | Battery, 1,5 V type AA (x2); autonomy up to 80 h |
| Environmental | Operating temperature 0...+40°C, storage temperature -10...+50°C |
| Dimensions (mm) | 169 x 63 x 37; 210 g |
Included: Sefram 9858, manual, batteries, carrying case.
