Sefram MW9090, MW9091 Insulation Testers and TRMS-Multimeters
Description
Files/Downloads
Benefits of the Sefram MW909x Series Insulation Testers up to 1000 V and Multimeters/DMMs
- Insulation testing with test voltage up to 1000 V.
- Rugged housing with backlit LCD.
- Additional DMM measurements on MW9091.

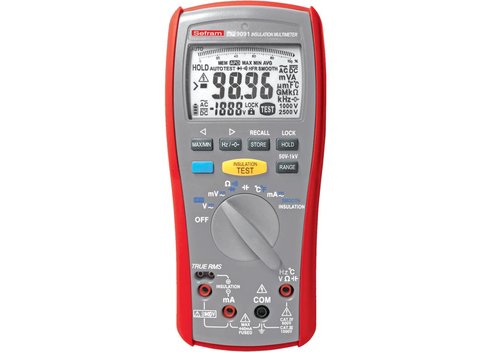

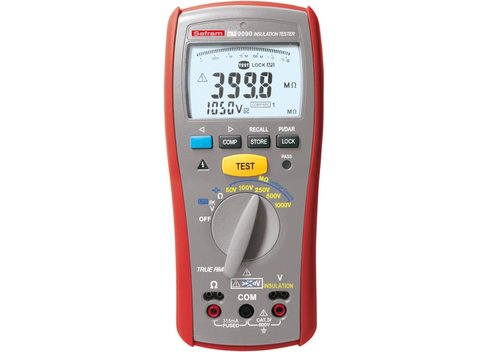

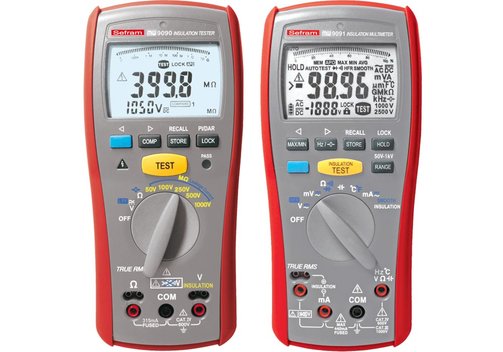

Sefram MW9090, MW9091 Insulation Testers and TRMS-Multimeters
The Sefram MW9090 and MW9091 are handheld insulation testers and multimeters. The devices offer a test voltage of 50, 100, 250, 500, or 1000 V. The range for voltage measurement is either up to 600 V AC TRMS or DC (MW9090), or 1000 V AC TRMS or DC (MW9091). Both versions have a backlit LCD.
- Test voltage: 50 V, 100 V, 250 V, 500 V, 1000 V.
- Insulation resistance up to 20 or 22 GΩ.
- Measurement of polarisation index (PI) and dielectric absorption ratio (DAR).
- Measurement of TRMS AC voltages up to 600 or 1000 V and DC up to 600 or 1000 V.
- Additional in MW9091:
- Current measurement AC and DC (400 mA)
- Resistance measurement, continuity and diode test.
- Frequency measurement.
- Capacitance measurement.
- Temperature measurement.
- Memory: 5x 100 memories.
- Compact, robust and shockproof housing, with protective holster.
- LCD display with backlight.
- Safety: 600 V CAT IV, MW9091 also 1000 V CAT III.
Model Overview
| Model | Sefram MW9090 | Sefram MW9091 |
| Test voltage | 50 V, 100 V, 250 V, 500 V, 1000 V | |
| Insulation resistance | 4, 400, 4000 MΩ, 4.1...20 GΩ | 2 MΩ...2 GΩ, 22 GΩ |
| Voltage measurement | 600 VAC TRMS or 600 VDC | 1000 VAC TRMS and 1000 VDC |
| Other measurements | Earth-bond resistance 40, 400, 4000 Ω; compare function | Current AC and DC (100 mA, 400 mA), resistance (1000 Ω...40 MΩ), continuity, diode test, frequency (100 Hz...100 kHz), capacitance (100 nF...40 mF), temperature (-200...+1000°C); Min, Max, AVG, Relativ and HOLD mode |
| Display | Backlit LCD | |
| Safety | 600 V CAT IV | 600 V CAT IV, 1000 V CAT III |
Included: Sefram MW 9090 or 9091, batteries, rubber holster, manual, active test probes.
