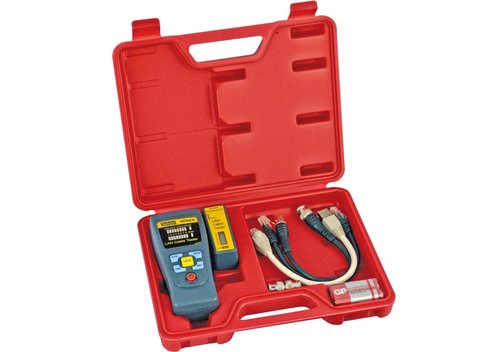

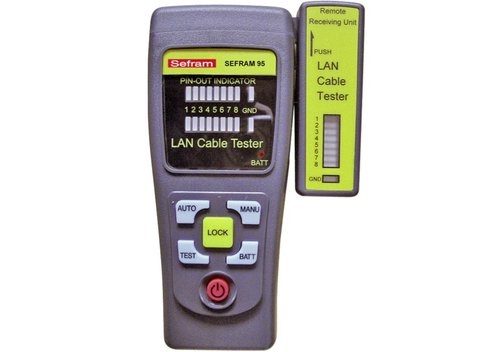

Sefram 95 Network Cables Tester (RJ45, RJ11)

Benefits of the Sefram 95 LAN Cable Tester for 10Base-T, 100Base-T and Others

• LAN cable tester for RJ45, RJ11, BNC.
• Tested network: 10Base-T, 100Base-T, token ring, BNC.
• LED indication for wire status.

Sefram 95 Network Cables Tester (RJ45, RJ11)

The Sefram 95 is a network cable tester for the testing of RJ45, RJ11, and BNC cables. The Sefram 95 can test continuity, short-cut, open circuit, and wiring fault. The detachable remote test module can also be used for installed cables.

• Testing of RJ45/RJ11 modular cables, 10/100Base-T cable and Token Ring cable.
• Testing of continuity (incl. shielded cable), open, short circuit and miss-wiring.
• Detachabel remote receiving module for installed cables far away either on the wall plates or on the patch panels.
• Automatic or manual sweep mode.
• Display: LED indication for wire status.
• Buzzer sound warning for wire status.
• Power supply: 1x 9 V battery (6F22,006P).
• Dimensions (mm): 132 x 55 x 39, 148 g (main unit), 74 x 30 x 25, 33 g (remote module).
• EN61326-1 compliant.

Information on product safety::

Manufacturer:
SEFRAM Instruments SAS, 32, rue E. Martel, F42100 St Etienne/FRA
www.sefram.com
