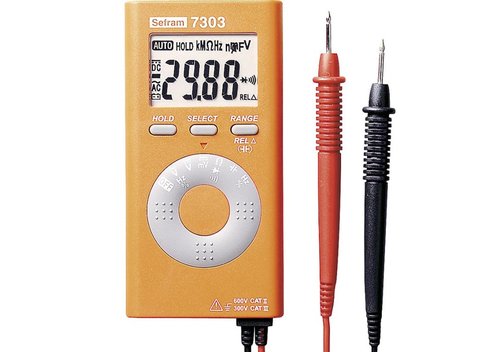

Sefram 7303 Pocket-size Digital Multimeter

EOL/this product is obsolete and not available anymore from the manufacturer.

Benefits of the Sefram 7303 Standard Handheld DMM for V (AC/DC), R, C, Frequency

• Compact, lowcost, versatile digital multimeter.
• Measurement of AC, DC voltage, resistance, capacitance, frequency.
• Diode and continuity test with buzzer.

Sefram 7303 Pocket-size Digital Multimeter

• 5000-count multimeter with LCD.
• Measuring rate 3 times/s.
• AC/DC voltage measurement up to 600 V.
• Resistance measurement up to 40 MΩ.
• Frequency counter (up to 5 MHz) and duty cycle (0.1...99.9%).
• Capacitance up to 100 µF.
• Hold function.
• Diode and continuity test with buzzer.
• Battery powered (2x 1.5 V, lifetime 100 h GPA76P).
• Operation temperature 0...+50°C.
• Dimension (mm) 56 x 12 x 112; 115 g.
• IEC 1010 CAT III 300 V and CAT II 600 V.

Information on product safety::

Manufacturer:
SEFRAM Instruments SAS, 32, rue E. Martel, F42100 St Etienne/FRA
www.sefram.com
