Eaton Sefelec MGR10 Series High-Precision, Digital Microohm Meters

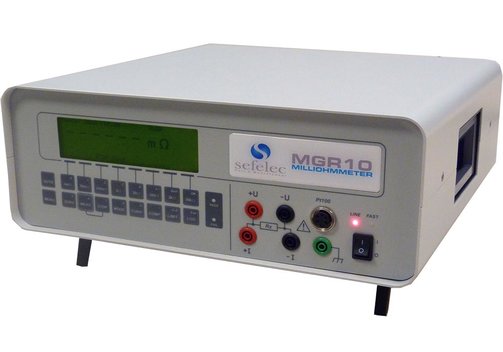

Thanks to its very good accuracy and its rugged construction, the Eaton Sefelec MGR10 series microhmmeter can be used in laboratories as well as in industry. Its main applications are measurements on transformers, chokes, electrical motors, cables, switches, circuit breakers, relays, fuses surface, contact ground or earth and connection resistances. Manual or automatic temperature compensation can be done according to copper or aluminium, but also any other kind of metal.
- High-precision, digitale microohm meters.
- Measuring 0.1 µΩ...30 kΩ (depending on version).
- Measuring current up to 10 A.
- Accuracy <0.03% (0,05% on MGR10C).
- Manual/automatic range.
- Memory for 4000 readings.
- Battery (MGR10A) and mains supply (MGR10) versions.
- RS232C, PLC or GPIB (IEEE488.1/2) interfaces.
- 240x64 LCD matrix display with backlight.
- Dimensions (mm): 131 x 344 x 332; 9.8 kg (12 kg battery type MGR10A).
- MGR10B: Version for measuring contact resistance according to the NFC 93050 standard.
MGR10C: Version for pyrotechnic environment.
Model Overview
| Model | MGR10 | MGR10A | MGR10B | MGR10C |
| Description | High precision digital microohm meter, 30,000 point display, cable measurement, contact resistance, motor winding and electronic components | Portable digital microhm meter with batteries, display 30,000 points, cable measurement, contact resistance, motor winding and electronic components | High precision digital microohm meter for contact resistance measurement according to standard NFC93050, display 30,000 points | High precision digital microohm meter for resistance measurement in pyrotechnic environment, 3000 points display |
| Current measurement | Variable | Variable | Fixed values | Variable |
| Measuring | 0.1 µΩ...30 kΩ | 0.1 µΩ...30 kΩ | 10 µΩ...30 kΩ | 1 mΩ...30 kΩ |
| Ranges | 8 measurement ranges 3/30/300 mΩ/3/30/300Ω/3/30 kΩ | 8 measurement ranges 3/30/300 mΩ/3/30/300Ω/3/30 kΩ | 6 measurement ranges 300mΩ/3/30/300 Ω/3/30kΩ | 4 measurement ranges 30/300 Ω/3/30 kΩ |
| Min. | 1 mΩ| 1 mΩ | 50 mΩ | 500 mΩ | |
| Max. | 30 kΩ | 30 kΩ | 30 kΩ | 30 kΩ |
| Resolution min. | 0.1 µΩ | 0.1 µΩ | 10µΩ | 1 mΩ |
| Measuring current min. | 10 µA | 10 µA | 10 µA | 10 µA |
| Max. measuring current | 10 A | 10 A | 10 mA | 10 mA |
| Accuracy | 0.03% | 0.03% | 0.03% | 0.05% |
| Battery | No | Yes | No | No |
