SCM5B45 Isolated Frequency-to-Voltage Converter

5B - The Standard in Industrial Signal Conditioning

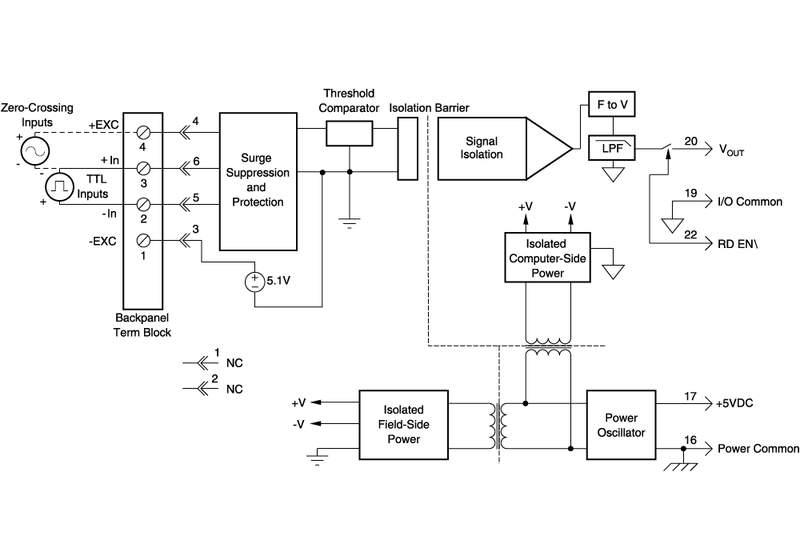

SCM5B45 Isolated Frequency-to-Voltage Converter Module up to100 kHz

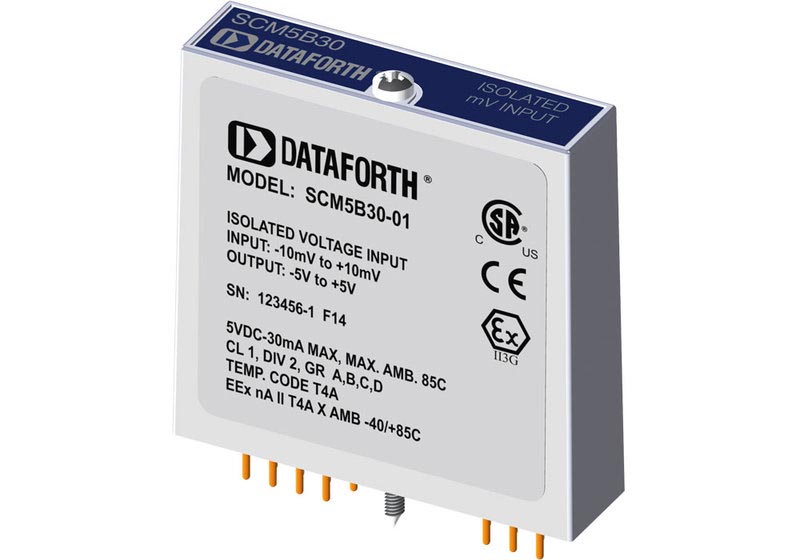

SCM5B45 5B-type modules from the SCM5B series are a standard in industrial signal conditioning. They are ruggedized, compact and easy to mount on backpanels.

• Input frequency 0 to 500 Hz, 1 kHz, 3 kHz, 5 kHz, 10 kHz, 25 kHz, 50 kHz, 100 kHz.
• Output 0...5 V or 0...10 V.
• Modules for industrial signal conditioning.
• Individual, flexible configuration: One module per signal.
• Modules for common sensors and input signals.
• Industry standard pinout (compatible with series 5B from Analog Devices or Burr Brown).
• Rack-mountable backpanels.
• Rugged, sealed enclosures.
• 1500 V true 3-way isolation.
• No special software required.

Model Overview

Model	Zero crossing hysteresis	Input	Output
SCM5B45-01	±20 mV	0...500 Hz	0...5 V
SCM5B45-02	±20 mV	0...1 kHz	0...5 V
SCM5B45-03	±20 mV	0...3 kHz	0...5 V
SCM5B45-04	±20 mV	0...5 kHz	0...5 V
SCM5B45-05	±20 mV	0...10 kHz	0...5 V
SCM5B45-06	±20 mV	0...25 kHz	0...5 V
SCM5B45-07	±20 mV	0...50 kHz	0...5 V
SCM5B45-08	±20 mV	0...100 kHz	0...5 V
SCM5B45-21	±400 mV	0...500 Hz	0...5 V
SCM5B45-22	±400 mV	0...1 kHz	0...5 V
SCM5B45-23	±400 mV	0...3 kHz	0...5 V
SCM5B45-24	±400 mV	0...5 kHz	0...5 V
SCM5B45-25	±400 mV	0...10 kHz	0...5 V
SCM5B45-26	±400 mV	0...25 kHz	0...5 V
SCM5B45-27	±400 mV	0...50 kHz	0...5 V
SCM5B45-28	±400 mV	0...100 kHz	0...5 V
SCM5B45-01D	±20 mV	0...500 Hz	0...10 V
SCM5B45-02D	±20 mV	0...1 kHz	0...10 V
SCM5B45-03D	±20 mV	0...3 kHz	0...10 V
SCM5B45-04D	±20 mV	0...5 kHz	0...10 V
SCM5B45-05D	±20 mV	0...10 kHz	0...10 V
SCM5B45-06D	±20 mV	0...25 kHz	0...10 V
SCM5B45-07D	±20 mV	0...50 kHz	0...10 V
SCM5B45-08D	±20 mV	0...100 kHz	0...10 V
SCM5B45-21D	±400 mV	0...500 Hz	0...10 V
SCM5B45-22D	±400 mV	0...1 kHz	0...10 V
SCM5B45-23D	±400 mV	0...3 kHz	0...10 V
SCM5B45-24D	±400 mV	0...5 kHz	0...10 V
SCM5B45-25D	±400 mV	0...10 kHz	0...10 V
SCM5B45-26D	±400 mV	0...25 kHz	0...10 V
SCM5B45-27D	±400 mV	0...50 kHz	0...10 V
SCM5B45-28D	±400 mV	0...100 kHz	0...10 V

---

Information on product safety:

Manufacturer:
Dataforth Corporation, 3331 E. Hemisphere Loop, Tucson, Arizona (AZ) 85706-5011/USA
www.dataforth.com
