5B - The Standard in Industrial Signal Conditioning

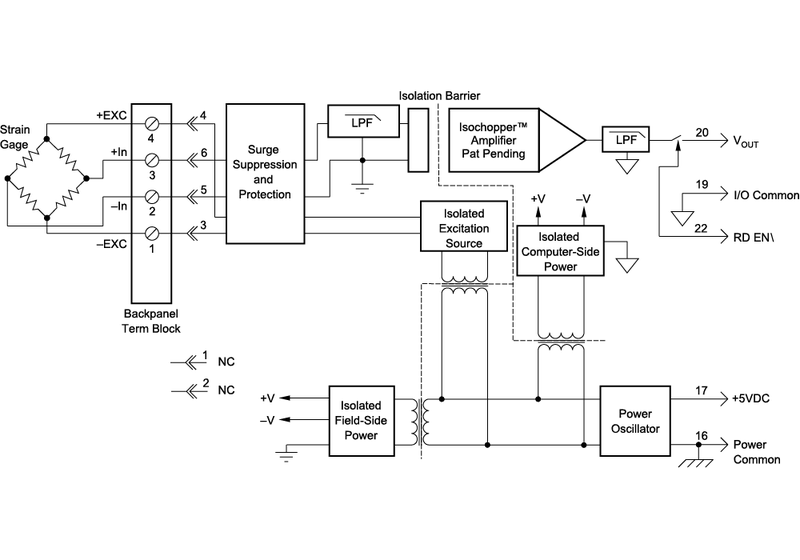

SCM5B38 Isolated 5B Strain Gauge Module

SCM5B38 5B-type modules from the SCM5B series are a standard in industrial signal conditioning. They are ruggedized, compact and easy to mount on backpanels.

Input for fullbridge strain gauges.
Modules for industrial signal conditioning.
Individual, flexible configuration: One module per signal.
Modules for common sensors and input signals.
Industry standard pinout (compatible with series 5B from Analog Devices or Burr Brown).

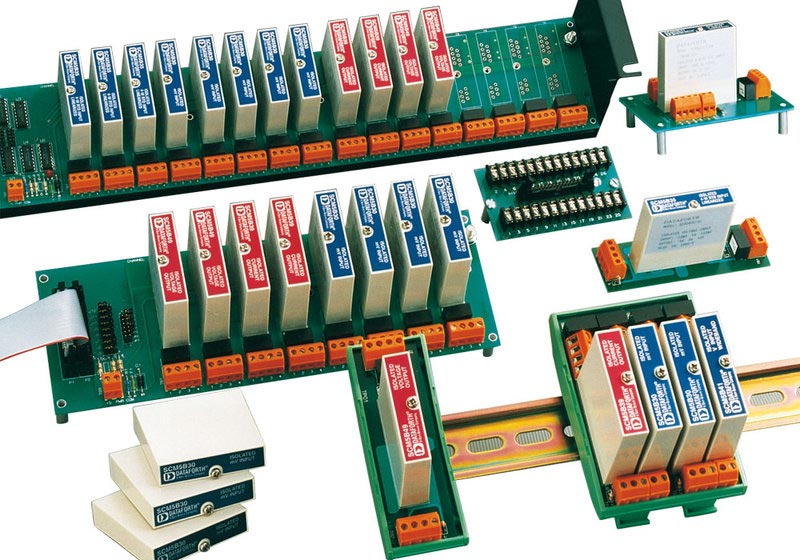

Rack-mountable backpanels.
Rugged, sealed enclosures.
1500 V true 3-way isolation.
No special software required.

Model Overview

Model	Strain gauge	Input	Output
SCM5B38-01	3.333 V bei 3 mV/V, 10 kHz, full-bridge	100...10 kOhm	±5 V
SCM5B38-02	10.0 V bei 3 mV/V, 10 kHz, full-bridge	300...10 kOhm	±5 V
SCM5B38-03	3.333 V bei 3 mV/V, 10 kHz, full-bridge	100...10 kOhm	±5 V
SCM5B38-04	10.0 V bei 3 mV/V, 10 kHz, full-bridge	300...10 kOhm	±5 V
SCM5B38-05	10.0 V bei 2 mV/V, 10 kHz, full-bridge	300...10 kOhm	±5 V
SCM5B38-06	3.333 V bei 10 mV/V, 10 kHz, full-bridge	100...10 kOhm	±5 V
SCM5B38-07	10.0 V bei 10 mV/V, 10 kHz, full-bridge	300...10 kOhm	±5 V
SCM5B38-31	3.333 V bei 3 mV/V, 4 kHz, full-bridge	100...10 kOhm	±5 V
SCM5B38-32	10.0 V bei 3 mV/V, 4 kHz, full-bridge	300...10 kOhm	±5 V
SCM5B38-33	3.333 V bei 3 mV/V, 4 kHz, full-bridge	100...10 kOhm	±5 V
SCM5B38-34	10.0 V bei 3 mV/V, 4 kHz, full-bridge	300...10 kOhm	±5 V
SCM5B38-35	10.0 V bei 2 mV/V, 4 kHz, full-bridge	300...10 kOhm	±5 V
SCM5B38-36	3.333 V bei 10 mV/V, 4 kHz, full-bridge	100...10 kOhm	±5 V
SCM5B38-37	10.0 V bei 10 mV/V, 4 kHz, full-bridge	300...10 kOhm	±5 V
SCM5B38-01D	3.333 V bei 3 mV/V, 10 kHz, full-bridge	100...10 kOhm	±10 V
SCM5B38-02D	10.0 V bei 3 mV/V, 10 kHz, full-bridge	300...10 kOhm	±10 V
SCM5B38-03D	3.333 V bei 3 mV/V, 10 kHz, full-bridge	100...10 kOhm	±10 V
SCM5B38-04D	10.0 V bei 3 mV/V, 10 kHz, full-bridge	300...10 kOhm	±10 V
SCM5B38-05D	10.0 V bei 2 mV/V, 10 kHz, full-bridge	300...10 kOhm	±10 V
SCM5B38-06D	3.333 V bei 10 mV/V, 10 kHz, full-bridge	100...10 kOhm	±10 V
SCM5B38-07D	10.0 V bei 10 mV/V, 10 kHz, full-bridge	300...10 kOhm	±10 V
SCM5B38-31D	3.333 V bei 3 mV/V, 4 kHz, full-bridge	100...10 kOhm	±10 V
SCM5B38-32D	10.0 V bei 3 mV/V, 4 kHz, full-bridge	300...10 kOhm	±10 V
SCM5B38-33D	3.333 V bei 3 mV/V, 4 kHz, full-bridge	100...10 kOhm	±10 V
SCM5B38-34D	10.0 V bei 3 mV/V, 4 kHz, full-bridge	300...10 kOhm	±10 V
SCM5B38-35D	10.0 V bei 2 mV/V, 4 kHz, full-bridge	300...10 kOhm	±10 V
SCM5B38-36D	3.333 V bei 10 mV/V, 4 kHz, full-bridge	100...10 kOhm	±10 V
SCM5B38-37D	10.0 V bei 10 mV/V, 4 kHz, full-bridge	300...10 kOhm	±10 V

Included: Module, instructions for use.

Information on product safety:

Manufacturer:
Dataforth Corporation, 3331 E. Hemisphere Loop, Tucson, Arizona (AZ) 85706-5011/USA
