SCM5B32 Isolated Current Modules

5B - The Standard in Industrial Signal Conditioning

SCM5B32 Isolated Modules for Current with 4 Hz Bandwidth

SCM5B32 5B-type modules from the SCM5B series are a standard in industrial signal conditioning. They are ruggedized, compact and easy to mount on backpanels.

• Input 0 or 4...20 mA, output 0...5 or 10 V.
• Modules for industrial signal conditioning.
• Individual, flexible configuration: One module per signal.
• Modules for common sensors and input signals.
• Industry standard pinout (compatible with series 5B from Analog Devices or Burr Brown).

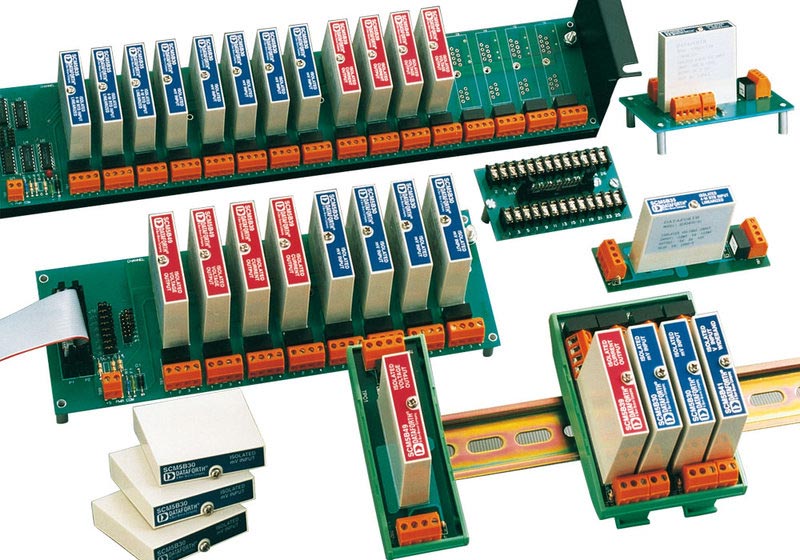

• Rack-mountable backpanels.
• Rugged, sealed enclosures.
• 1500 V true 3-way isolation.
• No special software required.

Model Overview

Model	Input	Output
SCM5B32-01	4...20 mA	0...5 V
SCM5B32-02	0...20 mA	0...5 V
SCM5B32-01D	4...20 mA	0...10 V
SCM5B32-02D	0...20 mA	0...10 V

---

Information on product safety:

Manufacturer:
Dataforth Corporation, 3331 E. Hemisphere Loop, Tucson, Arizona (AZ) 85706-5011/USA
www.dataforth.com
