Rohde&Schwarz RTA4000 Series 10-bit Oscilloscopes from 200MHz to 1GHz

Benefits of the R&S RTA4004 4+16 Channel Mixed-Signal Oscilloscopes

• Individual configurations: Upgradeable bandwidth, mixed-signal, and various options.
• Arbitrary waveform and pattern generator, serial trigger and decode options.
• Power analysis and Bode plot options.

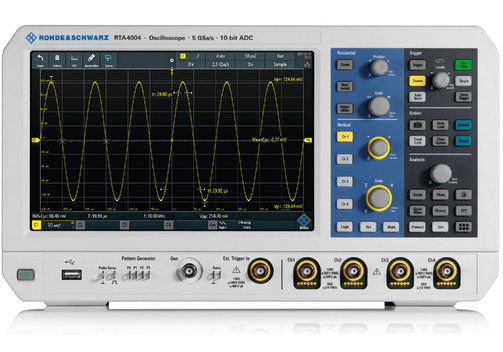

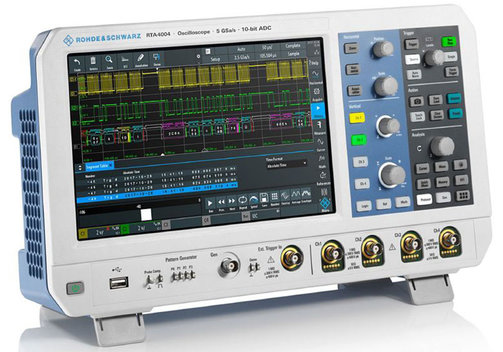

Rohde&Schwarz RTA4004 Series 10-bit Oscilloscopes from 200 MHz to 1 GHz

The Rohde&Schwarz RTA4004 oscilloscopes are designed with the higher resolution of a 10 bit ADC. They offer high accuracy, low noise and multifunctionality with various features and options. The basic instrument has a bandwidth of 200 MHz which can be bought in pre-configured bundles or upgraded up to 1 GHz. A mixed-signal/MSO option with 16-channels logic analyzer is also available.

• Versatile 4-channel oscilloscopes with bandwidth 200, 350, 500 MHz, or 1 GHz (upgradeable).
• Max. sample rate 2.5 or 5 GS/s, max. memory depth 200 MS.
• ADC resolution 10 bit.
• Waveform capture rate up to 64.000 wfms/s.
• MSO option: 16 digital channels/logic analyzer.
• Option 14 bit/25 MHz arbitrary waveform and 4-bit pattern generator.
• Additional features and options:
  Serial trigger and decode (I2C/SPI, UART/RS232, CAN/LIN, I2S/LJ/RJ/TEM, MIL-1553, ARINC 428),
  digital voltmeter,
  frequency counter,
  mask testing,
  frequency analysis (FFT),
  power analysis,
  Bode plot analysis,
  spectrum analysis and spectrogram.
• 10.1"/25.7 cm WXGA with capacitive touch.
• USB 2.0 and LAN/Ethernet interfaces.

Model Overview

1) If following channels are not used simultaneously: channel 1 and channel 2; channel 3 and channel 4; logic channels.

Available Oscilloscope Bundles

Option Overview
