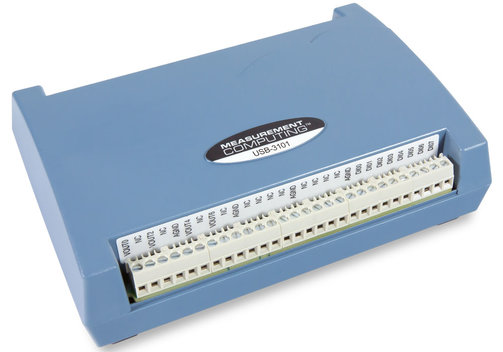

MCC USB-3100 (RedLab 3100) USB Analog Output Module
Benefits of the RedLab/USB-3100 Series With up to 16 Analog Outputs
- Up to 16 Analog Voltage and/or Current Outputs in 16 bit D/A Resolution.
- Highdrive Models with up to 40 mA Load per Channel.
- Also Available as Bundle "RedPack" with Software ProfiLab-Expert.
MCC USB-3100 (RedLab 3100) USB Analog Output Module
The modules from the MCC USB-3100 or RedLab 3100 series are intended for analog output. They haven 4, 8 or 16 analog outputs with 16 bit resolution. A bidirectional synchronization pin allows to update the D/A converter outputs on multiple modules simultaneously. In addition the modules offer 8 digital I/O channels.
- USB analog output/control module.
- Depending on model 4, 8 or 16 analog outputs.
- Resolution 16 bit, rate depending on system.
- Output ranges ±10 V/0...10 V, models with current outputs also 0...20 mA.
- Additional 8 discrete CMOS digital I/O channels.
- Reliable screw terminals.
- Plug&Play USB 2.0 (FullSpeed, USB cable included). Power supply via USB.
High drive models: Power supply included. - For production reasons from 2022 RedLab modules are now MCC USB modules in blue housing - otherwise completely identical and fully compatible!
Model Overview
| Model | Analog outputs | Resolution | Range, voltage outputs | Range, current outputs | ||
| MCC USB-3101 | RedLab 3101 | 6069-410-188 | 4 | 16 bit | ±10 V, 0...10 V (output current per channel typ. ±3.5 mA) | - |
| MCC USB-3102 | RedLab 3102 | 6069-410-030 | 4 | 16 bit | ±10 V, 0...10 V (output current per channel typ. ±3.5 mA) | 0...20 mA |
| MCC USB-3104 | RedLab 3104 | 6069-410-054 | 8 | 16 bit | ±10 V, 0...10 V (output current per channel typ. ±3.5 mA) | 0...20 mA |
| MCC USB-3105 | RedLab 3105 | 6069-410-191 | 16 | 16 bit | ±10 V, 0...10 V (output current per channel typ. ±3.5 mA) | - |
| MCC USB-3106 | RedLab 3106 | 6069-410-192 | 16 | 16 bit | ±10 V, 0...10 V (output current per channel typ. ±3.5 mA) | 0...20 mA |
| MCC USB-3114 | RedLab 3114 | 6069-410-029 | 16 | 16 bit | ±10 V, 0...10 V, highdrive/max. load per channel 40 mA (source/sink) | - |
The model versions RedLab 3103, RedLab 3110, RedLab 3112 are obsolete/EOL and not available anymore.
- option "-modul": Module only or
- option "-redpack": As bundle "RedPack" with the software▸ProfiLab-Expert.
Included: MCC USB/RedLab module, USB cable, basic-software (download). Highdrive model 3114 with power supply. Bundle "RedPack" with additional software ProfiLab-Expert.
Basic-Software:
- TracerDAQ (strip chart recorder and data logger),▸TracerDAQ Pro.
- ▸DAQami.
- Universal Library (programming language support for Windows).
- InstaCAL utility (for easy installation, calibration and test).
- Driver for LabVIEW.
- MATLAB Data Acquisition Toolbox supports InstaCal version from 5.89 (analog inputs and outputs (no streaming) are supported. Digital inputs/outputs as well as triggered acquisition not supported).
- Linux drivers.
Support for Visual Studio/Visual Studio .NET, examples for Visual C++, Visual C#, Visual Basic, and Visual Basic .NET.
Support for MATLAB and Python.
Supported operating systems: Windows 11/10/8/7/Vista/XP, 32 and 64 bit.
Optional:▸ProfiLab-Expert.
