MCC USB-1616HS-BNC (RedLab 1616HS-BNC) USB Multi-Channel DAQ Box

Benefits of the Rugged, Reliable USB DAQ System RedLab/USB-1616HS-BNC

• The rugged USB DAQ system in a metal housing.
• Differential channels with high noise immunity and BNC connectors.
• Also available as bundle "RedPack" with software ProfiLab-Expert.

MCC USB-1616HS-BNC (RedLab 1616HS-BNC) USB Multi-Channel DAQ Box

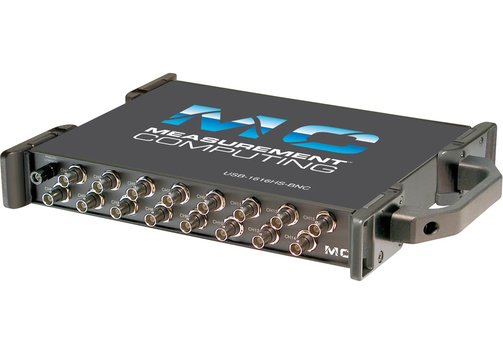

The USB multifunctional DAQ lab MCC USB-1616HS-BNC or RedLab 1616HS-BNC is a good solution for industrial applications: The 16 differential inputs are equipped with BNC connectors. The module has a ruggedized metal housing. The technical specs include 16 bit/1 MHz A/D conversion with a range up to ±10 V.

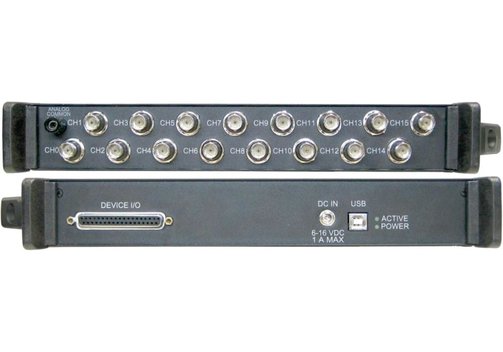

• 16 differential analog inputs with BNC.
• 1 MHz, 16 bit A/D conversion.
• Range ±10 V, ±5 V, ±2 V, ±1 V, ±0,5 V, ±0,2 V, ±0,1 V.
• Over-sampling mode, including line-cycle rejection for low-level voltage measurements, even in the presence of AC power line noise.
• 2 analog outputs, 16 bit, up to 1 MS/s, range: ±10 V.
• 16 Digital-I/O channels (2x 8 bit ports, max. 4 MHz).
• 4 counters, 32 bit, 20 MHz, measurement of frequency, periode, pulse width or quadrature encoders up to 20 MHz.
• 2 frequency/pulse outputs, 16 bit.
• Synchroneous I/O for all analog and digital inputs/outputs incl. counter channels.
• Outputs that can react on corresponding trigger events with a delay time of max. 2 µs.
• Analog outputs and digital channels connected via 37-pin D-sub female.
• USB 2.0 (recommended), compatible with USB 1.1.
• For production reasons from 2022 RedLab modules are now MCC USB modules - otherwise completely identical and fully compatible!
