MCC USB-1608G (RedLab 1608G) USB Multi Channel DAQ Box
Benefits of the RedLab/USB-1608G 16 bit All-round DAQ Lab
- Precise 16 bit A/D conversion.
- Differential inputs with high noise immunity.
- Also available as bundle "RedPack" with software ProfiLab-Expert.
MCC USB-1608G (RedLab 1608G) USB Multi Channel DAQ Box
The MCC USB-1608G or RedLab 1608GX-2AO offers precise 16 bit conversion with rates up to 500 kS/s. It combines analog inputs, outputs and digital channels in one module.
- USB measurement data acquisition.
- Compactes, universal DAQ lab.
- 16 single-ended or 8 differential analog inputs. 16 bit, max. 500 kS/s (multiplexer).
- Input range ±10 V, ±5 V, ±2 V, ±1 V.
- 2 analog outputs, 16 bit, max. 500 kS/s (one channel) or 250 kS/s per channel. Range ±10 V.
- 8 discrete (programmable per bit) CMOS digital-I/O channels.
- 2x 32 bit event counters, 32 bit counter outputs with PWM function (pulswidth modulation).
- Size 127 x 90 x 36 (mm).
- USB 2.0 HighSpeed; supply power from PC via USB.
- Screw terminals.
- For production reasons from 2022 RedLab modules are now MCC USB modules in blue housing - otherwise completely identical and fully compatible!
Model Overview
| Model | Analog inputs | Analog outputs | Digital-I/O | Counter/timer | |||||||
| Number | Resolution | Ranges | Bandwidth | Rate | Data throughput** | ||||||

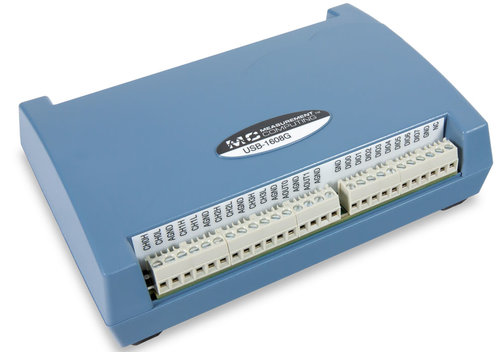

| MCC USB-1608G | RedLab 1608G | 6069-410-059 | 8/16* | 16 bit | ±10, ±5, ±2, ±1 V | 750 kHz | 0.0149 Hz to 250 kHz | 250 kS/s | - | 8 DIO, CMOS | 2x 32 bit event counters CTR0/1 and 1x 32 bit PWM TMR (max. 64 MHz) |
| MCC USB-1608GX | RedLab 1608GX | 6069-410-010 | 8/16* | 16 bit | ±10, ±5, ±2, ±1 V | 870 kHz | 0.0149 Hz to 500 kHz | 500 kS/s | - | ||

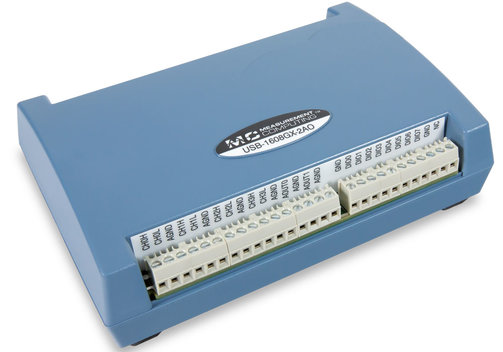

| MCC USB-1608GX-2AO | RedLab 1608GX-2AO | 6069-410-011 | 8/16* | 16 bit | ±10, ±5, ±2, ±1 V | 870 kHz | 0.0149 Hz to 500 kHz | 500 kS/s | Number: 2, resolution: 16 bit, range: ±10 V, throughput: max. 500 kS/s depending on system | ||
Remaining stocks of the 1608GX variant are available while stocks last. Models "G" and "GX-2AO" still available.
* 8 differential/16 single-ended.
** Hardware triggered. Software triggered typ. 33 to 4000 S/s depending on the system.
- option "-modul": Module only or
- option "-redpack": As bundle "RedPack" with the software▸ProfiLab-Expert.
Included: MCC USB/RedLab module, USB cable, basic-software (download). Bundle "RedPack" with additional software ProfiLab-Expert.
Basic-Software:
- TracerDAQ (strip chart recorder and data logger),▸TracerDAQ Pro.
- ▸DAQami.
- Universal Library (programming language support for Windows).
- Universal Library for Android.
- InstaCAL utility (for easy installation, calibration and test).
- Driver for LabVIEW.
- MATLAB Data Acquisition Toolbox supports InstaCal version from 5.89 (analog inputs and outputs (no streaming) are supported. Digital inputs/outputs as well as triggered acquisition not supported).
- Linux drivers.
Support for Visual Studio/Visual Studio .NET, examples for Visual C++, Visual C#, Visual Basic, and Visual Basic .NET.
Support for MATLAB and Python.
Supported operating systems: Windows 11/10/8/7/Vista/XP, 32 and 64 bit.
Optional:▸ProfiLab-Expert.
