Raven 3104 USB 3.1 Extender over 100 m Cat 6a/7, 4-Port Hub

Benefits of the Raven 3104 USB 3-2-1 Extenders over Copper Cable

• Transparent USB extension supporting USB 3, 2 and 1.
• Distance up to 100 m via standard Cat 6a/7 copper cable.
• True Plug&Play; no software drivers required - works with Windows, Mac OS, Linux, Chrome OS.

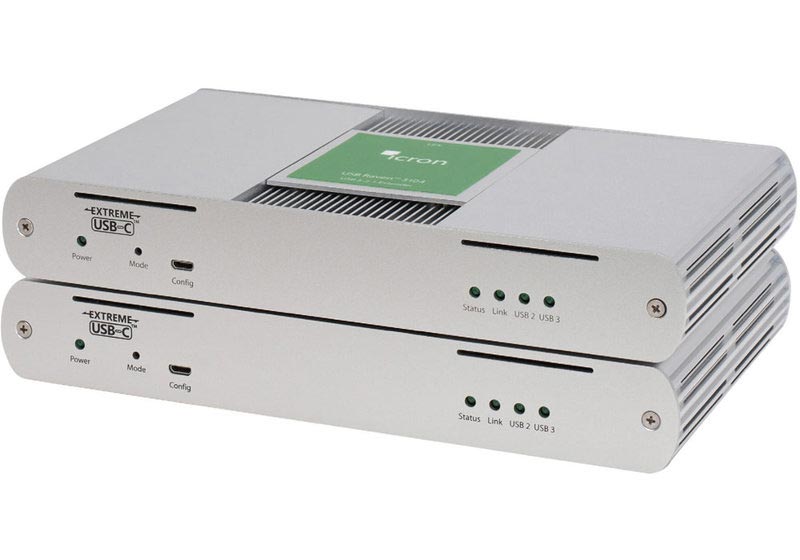

Icron Raven 3104(-Pro) 4-Port USB 3.1 Point-to-Point Extender System via 100 m Cat 6a/7

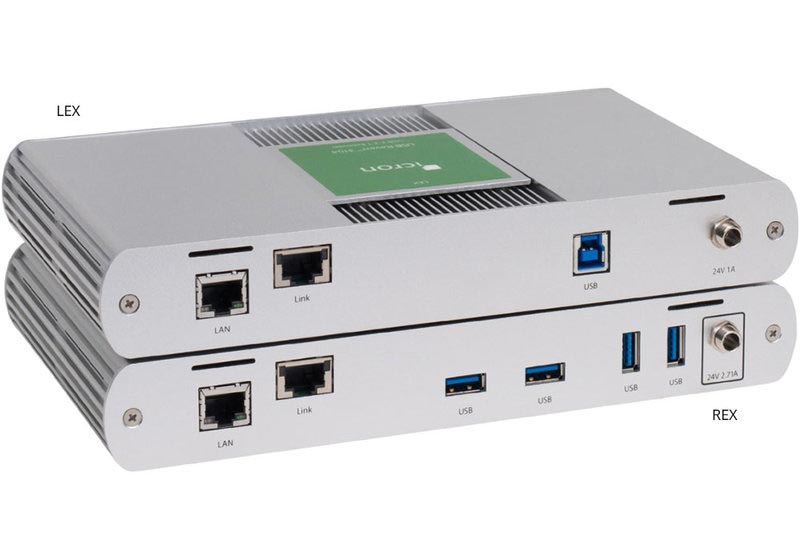

The Icron USB 3-2-1 Raven 3104(-Pro) is an USB 3.1 Gen 1 (5 Gbps) extender with ExtremeUSB-C technology. It extends all USB 3.1, 2.0 and 1.1 devices simultaneously up to 100 m over standard Cat 6a/7 cable. The system includes a local extender (LEX) and remote extender (REX), both powered by an external power supply adaptor (included). The REX has an integrated four port USB hub which is compatible with USB 3.1, 2.0, and 1.1. The Raven 3104 is fully transparent and works with Windows, Mac OS, Linux, and Chrome OS. The version Raven 3104-Pro is optimized for camera and video capture devices. It supports all USB transfer types (control, interrupt, isochronous, and bulk).

• Point-to-point extender for USB 3.1.
• USB 3.1 Gen 1 data rate up to 5 Gbps.
• Integrated four port USB 3.1 hub. All USB 3.1, 2.0, 1.1 devices supported, simultaneously at full bandwidth.
• Up to 1.2 A (6 W) available current at REX per USB port.
• 100/1000 Mbps Ethernet channel; LAN pass-through.
• Single cable, Cat 6a/7 up to 100 m.
• Point-to-point connection.
• Version Raven 3104-Pro: Supports all USB transfer types (control, interrupt, isochronous, and bulk). Optimized for camera and video capture devices.
• FCC and CE (Class B) compliance.
• Two year warranty.
• ExtremeUSB-C suite of features:
  • Transparent USB extension supporting USB 3, 2 and 1.
  • True Plug&Play; no software drivers required.
  • Works with all major operating systems: Windows, Mac OS, Linux and Chrome OS.

Applications of the Icron Raven 3104

• Remote storage, flash drives, hard drives.
• Security and monitoring.
• Video matrix systems, USB-to-video converter.
• Conferencing cameras, interactive white boards.
• Audio devices.
• Keyboards, mice, touchscreens, docking stations.
• Medical Device Connectivity.

Model Overview

Information on product safety:

Manufacturer:
Icron (An Analog Devices Brand), 4664 Lougheed Hwy, Suite 221, Burnaby, BC V5C 5T5/CAN
www.icron.com
