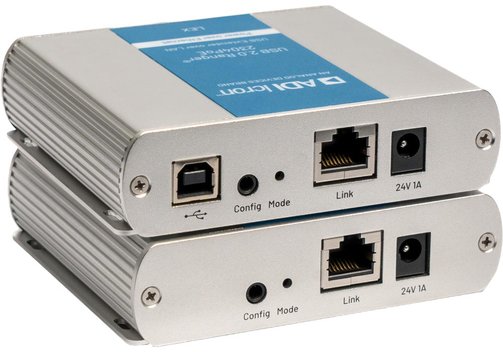

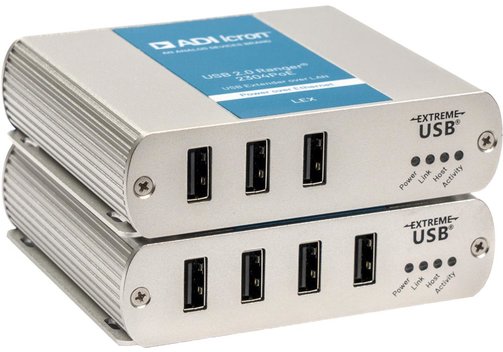

Icron Ranger 2304PoE 4-Port USB 2.0 Power over Ethernet LAN Extender System
Benefits of the Ranger 2304 Enhanced USB-over-LAN Extender up to 100 m
- USB 2.0 extension up to 100 m over existing PoE-enabled LAN/Ethernet.
- Power supply over PoE (1000 Mbps LAN, IEEE 802.3at).
- Three USB-A ports on local extender, no additional USB hub at host required.
Icron Ranger 2304PoE 4-Port USB 2.0 Power over Ethernet LAN Extender System
Use the Ranger 2304PoE to connect any USB 2.0 device type to hosts over a PoE+-enabled Gigabit Ethernet local area network (1000 Mbps LAN, IEEE 802.3at). You do this using existing cabling. This system extends peripherals such as flash drives, keyboards, mice, and interactive whiteboards over a LAN and supports isochronous devices such as webcams. Three USB-A ports are available on the local extender, eliminating the need to connect an external USB HUB to the host.
- Extends USB over an IEEE 802.3at PoE+ capable 1000 Mbps LAN.
- USB 2.0 throughput up to 480 Mbps point-to-point or over LAN (maximum throughput will vary based on network traffic, distances and number of switches between extenders).
- Pre-paired network configuration for simple installation.
- Supplies up to 1.5 A at each port, 3 A total.
- Includes the ExtremeUSB suite of features:
- Transparent USB extension.
- True plug and play; no software drivers required.
- Works with all major operating systems; Windows, macOS, Linux and ChromeOS.
Model Overview
| Model | ▸Ranger 2304 | Ranger 2304PoE | ▸Ranger 2304GE-LAN | |
| Ordering Code | 00-00348 | 00-00465 | 00-00377 | |
| Series | ExtremeUSB 2.0 | ExtremeUSB 2.0 | ExtremeUSB 2.0 | |
| Principle | Direct point-to-point distance extension for USB via LAN cable; with USB 4-fold hub | USB distance extension via an existing LAN/Ethernet with Power-over-Ethernet (no REX power supply); with USB 4-fold hub and locally 3x USB-A | Direct point-to-point distance extension for USB via LAN cable or USB distance extension via an existing LAN/Ethernet; with USB 4-fold hub | |
| Extender | USB 2.0 up to 480 Mbps/Lowspeed and Fullspeed | USB 2.0 up to 480 Mbps/Lowspeed and Fullspeed | USB 2.0 up to 480 Mbps/Lowspeed and Fullspeed | |
| Distance | 100 m | 100 m (or 100 m between Ethernet switches | 100 m (or 100 m between Ethernet switches) | |
| Ports | 1 to 4 | 1 (+ 3) to 4 | 1 to 4 | |
| Medium | Cat5e/6/7 copper/Ethernet cable | Exisiting PoE-enabled Cat 5e/6/7 Ethernet/LAN | Cat5e/6/7 copper/Ethernet cable or exisiting Ethernet/LAN | |
| Model | 2 modules (LEX and REX) | 2 modules (LEX and REX) | 2 modules (LEX and REX) | |
| Power supply | Power supply at REX | PoE (power supply optional) | Power supply at REX | |
| Connectors | LEX | 1x RJ45, 1x USB type B | 1x RJ45, 1x USB Type B, 3x USB Type A | 1x RJ45, 1x USB type B |
| REX | 1x RJ45, 4x USB type A, connector for power supply | 1x RJ45, 4x USB type A | 1x RJ45, 4x USB type A, connector for power supply | |
| Dimensions (mm) | 100 x 76 x 26 | 100 x 82 x 26 | 100 x 76 x 26 | |
| Applications | Remote storage, industrial control, KVM extension, digital signage, security: Web camera, access control and more | |||
| Software | Transparent, no additional driver software required | |||
LEX = Local Extender, extender module at host.
REX = Remote Extender module.
Included: Ranger 2304 PoE LEX and REX. Cat5e/6/7 cable not included!
Information on product safety:
Manufacturer:
Icron (An Analog Devices Brand), 4664 Lougheed Hwy, Suite 221, Burnaby, BC V5C 5T5/CAN
