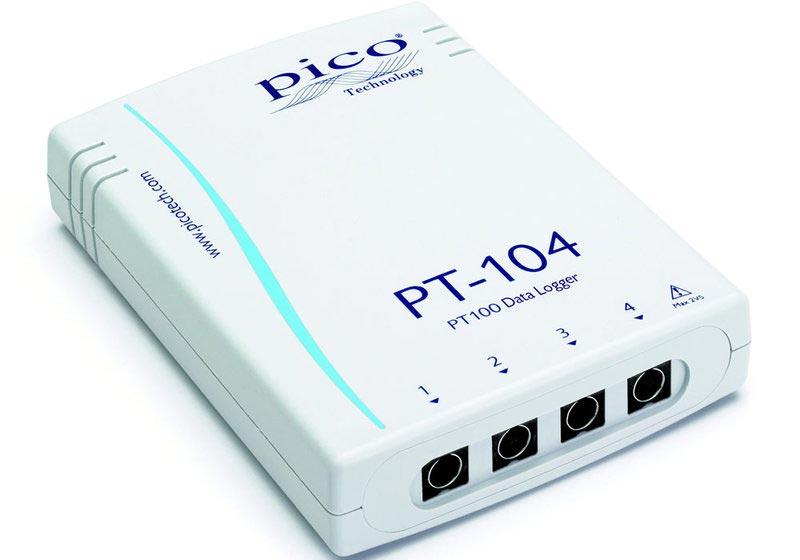

PicoLog PT-104 4-Channel Temperature Datalogger for USB and LAN
Benefits of the PicoLog PT-104 Temperaturelogger with High Resolution and Accuracy
- USB and LAN PC datalogger for temperature and resistance.
- 24 bit high resolution converter.
- Pt100, Pt1000, 2-, 3- and 4-wire sensors connectable.
PicoLog PT-104 4-Channel Temperature Datalogger for USB and LAN
The PT-104 is a four-channel temperature measuring data logger. It offers the ultimate in resolution (0.001°C) and accuracy (0.015°C). Along with temperature it can also be used to measure resistance.
- 4 channels for temperature and resistance.
- Works with Pt100 and Pt1000 sensors. Supports 2-, 3- and 4-wire sensors.
- Ranges - temperature: -200...+800°C, resistance: 0...375 Ω, 0...10 kΩ.
- Input impedance >1 MΩ.
- ADC resolution 24 bit. Conversion time 720 ms per channel.
- Resolution 0.001°C, accuracy 0.01°C.
- Connectors: 4-pin mini DIN.
- USB-powered, no external power supply required.
- USB 1.1 (compatible with USB 2.0) and ethernet interfaces.
- Run multiple units on a single PC.
- Size: 184 x 135 x 36 (mm).
Included (PP682): USB logger module, USB 2.0 cable, ethernet cable, user manual, software on CD.
Software: PicoLog data acquisition software can collect up to 1 million samples. View data as a graph, spreadsheet or text. Convert raw data into standard engineering units. Mathematic functions. Alarm limits. IP networking - transfer measurements via a LAN or over the internet.
Software development kit/SDK with drivers and programming examples for various environments incl. C, Excel and LabVIEW.
Raspberry-Pi supported.
New: ▸PicoLog Cloud.
