Benefits of the PROFiTEST MF Installation Testers for Testing the Effectiveness of Protective Measures in Electrical Installations

Rugged, portable installation testers.
For testing the effectiveness of protective measures in electrical installations.
According to E-CHECK/DIN VDE 0100-600/VDE 0413/VDE 0105-100.

Gossen Metrawatt PROFiTEST MF TECH/XTRA Safety Tester and Packages

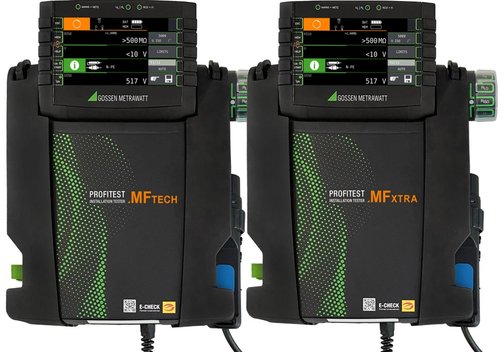

The Gossen Metrawatt/GMC-I PROFiTEST MF series is a family of installation testers for testing the effectiveness of protective measures in electrical installations in accordance with E-CHECK/DIN VDE 0100-600/VDE 0413/VDE 0105-100. The testers are portable, robust and available in a basic version and an extended variant with with additional/special functions. In addition, the devices are also available in various sets/complete bundles with accessories.

For testing residual current devices (RCDs).
Measuring the touch voltage without tripping the breaker - this involves measuring the touch voltage referenced to rated residual current with ⅓ of the rated residual current.
Testing for N-PE reversal.
Tripping test with rated residual current and measuring the tripping time.
Testing of equipment/RCD circuit breakers with increasing fault current, display of tripping current as well as touch voltage.
Testing of RCD circuit breakers with different rated currents.
PROFiTEST MF XTRA: Intelligent ramp for simultaneous measurement of breaking current and breaking time.
Testing of selective SRCDs, PRCDs (Schukomat, Sidos or others), type G/R, type AC, type A, F; type B, B+ and type EV.
Testing of RCD circuit breakers suitable for pulsating, DC and AC fault currents (testing with positive/negative half-waves).
Creation of test sequences with IZYTRONIQ software.
Intelligent data transmission. Data interfaces: USB type B (PC connection), type A (USB keyboard, barcode reader or RFID scanner).
Simulation of operating states of electric vehicles at e-charging stations with adaptor.
Memory for up to 50,000 data records.
Context-sensitive, color, brilliant graphic display with high response speed.
Intuitive operation: All decisive measurement functions can be selected quickly via rotary switches.
Future-proof platform and connectivity: WIFI, Bluetooth, connection of mobile data acquisition devices.

Model Overview

>/tr>

Model		Description		Scope of delivery/bundle contents

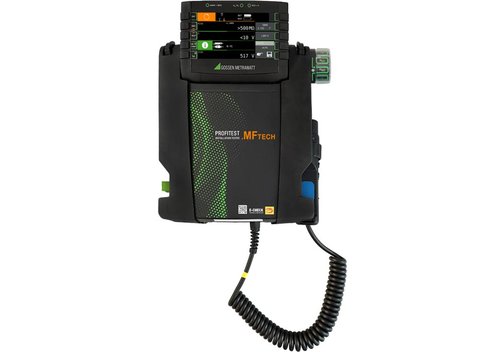

PROFiTEST MF TECH	M535K	Measuring and testing device for testing the effectiveness of protective measures on fixed electrical installations after completion, repair, extension and on the occasion of a repeat test	Basic model	Test device Schuko plug 2-pole measuring adaptor and cable for extension to 3-pole adaptor (PRO-A3-II) 2x alligator clips Shoulder strap Set of rechargeable batteries (Z502H) Charger (Z502R) USB cable IZYTRONIQ BUSINESS Starter (database software) with cloud voucher (12 months) DAkkS calibration certificate
PROFiTEST MF XTRA	M535H		Extended model, additionally e.g. with testing of insulation monitoring devices (IMDs), testing of residual current monitors (RCMs)

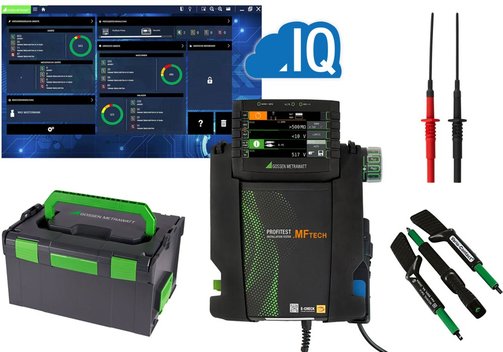

PROFiTEST MF TECH Starter Set	M537A	Measuring and testing set for testing the effectiveness of protective measures on fixed electrical installations after completion, repair, extension and on the occasion of a repeat test, measuring earth resistance, specific selective earth resistance, earth loop resistance		PROFiTEST MF TECH Set-Probes (special test probes 600 V CAT III for measuring in control systems Vario plug set (three self-holding test probes for connection e.g. to CEE, Perilex sockets) SORTIMO L-BOXX (system case with internal partition for PROFiTEST and accessories) IZYTRONIQ BUSINESS ADVANCED (database software + cloud voucher)
PROFiTEST MF TECH 0105-Set	M537B			PROFiTEST MF TECH SORTIMO L-BOXX (system case with interior partition for PROFiTEST and accessories) IZYTRONIQ BUSINESS Professional (database software + cloud voucher) METRAVOLT 12D+L- (voltage and continuity tester with phase, polarity and rotating field testing)

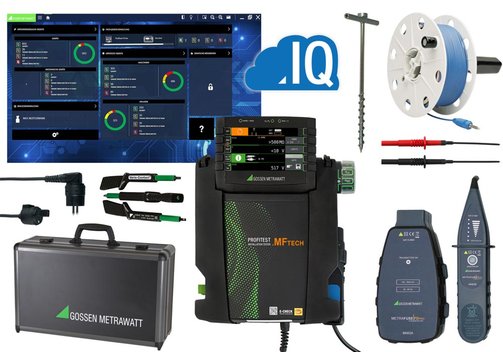

PROFiTEST MF TECH Master Set	M537C			PROFiTEST MF TECH Set-Probes (special test probes 600 V CAT III for measuring in control systems) Vario plug set (three self-holding test probes for connection e.g. to CEE, Perilex sockets) SP350 earth spike (earth drill, 35 cm long) TR 50 drum (drum with 50 m test lead) PRO-W (angled Schuko plug insert) Professional case (case with inner partition for PROFtTEST and accessories) IZYTRONIQ BUSINESS Professional (database software + cloud voucher) METRAFUSE FD PRO (fuse finder for identification of fuses and circuit breakers)

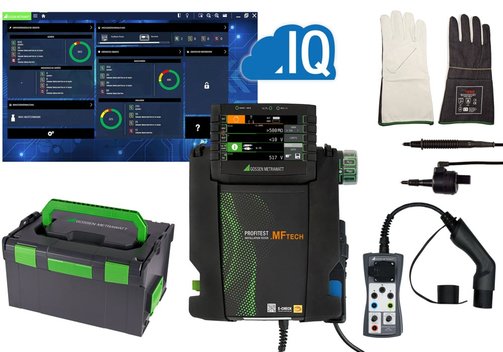

PROFiTEST MF TECH EVSE-Set	M537D	Measuring and test equipment set for testing the effectiveness of protective measures on fixed electrical installations, in particular wallboxes, charging columns and charging stations		PROFiTEST MF TECH METRALINE PRO-TYP EM II (1-/3-phase test adaptor for e-charging points) PRO-RLO 20 (compensated measuring adaptor with 20 m cable for PE measurements) Protective gloves (protective gloves with arc protection) SORTIMO L-BOXX (system case with internal partition for PROFiTEST and accessories) IZYTRON BUSINESS PROFESSIONAL (database software + cloud voucher)

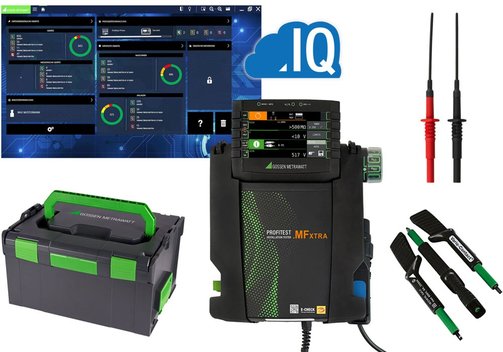

PROFiTEST MF XTRA Starter-Set	M537K	Measuring and test equipment set for testing the effectiveness of protective measures on fixed electrical installations after completion, repair, extension and on the occasion of a repeat test		PROFiTEST MF XTRA Set-Probes (special test probes 600 V CAT III for measuring in control systems) Vario plug set (three self-retaining test probes for connection e.g. to CEE, Perilex sockets) SORTIMO L-BOXX (system case with internal partition for PROFiTEST MASTER and accessories) IZYTRONIQ BUSINESS ADVANCED (database software + cloud voucher)

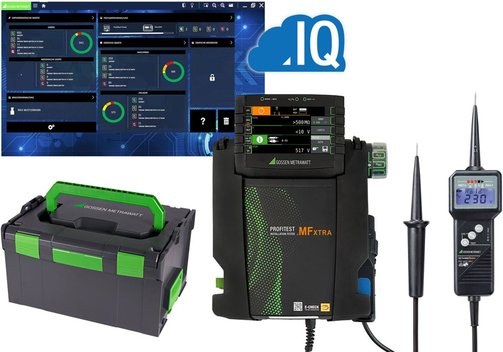

PROFiTEST MF XTRA 0105-Set	M537H			PROFiTEST MF XTRA SORTIMO L-BOXX (system case with interior partition for PROFiTEST and accessories) IZYTRONIQ BUSINESS Professional (database software + cloud voucher) METRAVOLT 12D+L- (voltage and continuity tester with phase, polarity and rotating field testing)

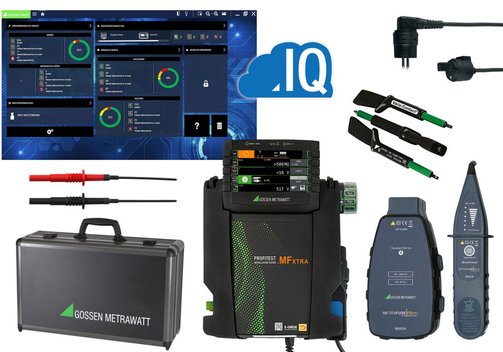

PROFiTEST MF XTRA Master Set	M537L			PROFiTEST MF XTRA Set-Probes (special test probes 600 V CAT III for measuring in control systems) Vario plug set (three self-holding test probes for connection e.g. to CEE, Perilex sockets) PRO-W (angled Schuko plug insert) Professional case (case with internal partition for PROFiTEST MASTER and accessories) IZYTRONIQ BUSINESS Professional (database software + cloud voucher) METRAFUSE FD PRO (fuse finder for identification of fuses and circuit breakers)

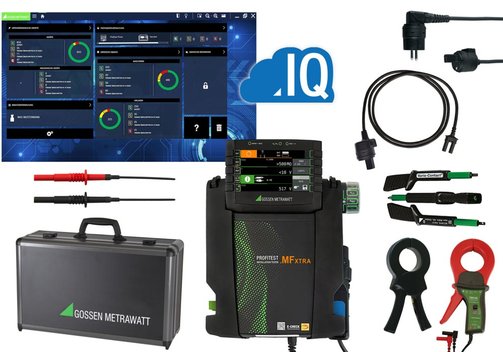

PROFiTEST MF XTRA Professional Set	M537M			PROFiTEST MF XTRA Set-Probes (special test probes 600 V CAT III for measuring in control systems) Vario plug set (three self-holding test probes for connection e.g. to CEE, Perilex sockets) PRO-W (angled Schuko plug insert) E-Clip 2 (generator clamp for ground loop resistance measurement) Z3512 (measuring clamp for earth loop resistance measurement) PRO-RE2 (measuring adaptor for 2-clamp measuring method) Professional case (case with internal partition for PROFiTEST MASTER and accessories) IZYTRONIQ BUSINESS Professional (database software + cloud voucher)
