PicoScope 5000 Series USB PC Oscilloscopes, 2/4-Chan. up to 200MHz, FlexRes
Benefits of the PicoScope PS5000D Series - Oscilloscopes with Flexible Resolution 8 to 16 bit
- Bandwidth up to 200 MHz.
- FlexRes - flexible resolution 8, 12, 14, 15, 16 bit.
- 2 or 4 input channels.
PicoScope5000 Series USB PC Oscilloscopes, up to 200 MHz, FlexRes

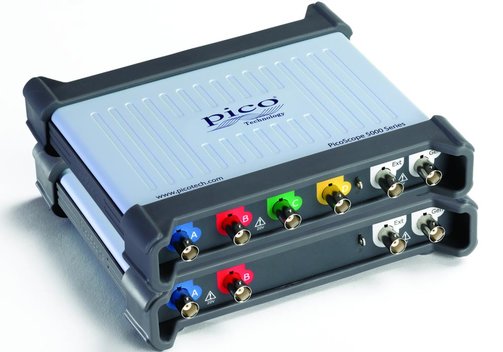

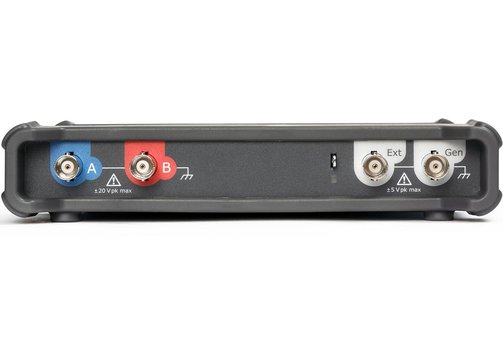

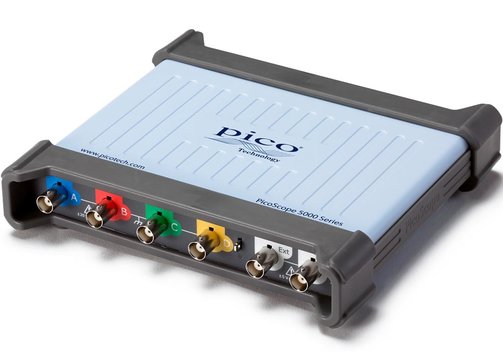

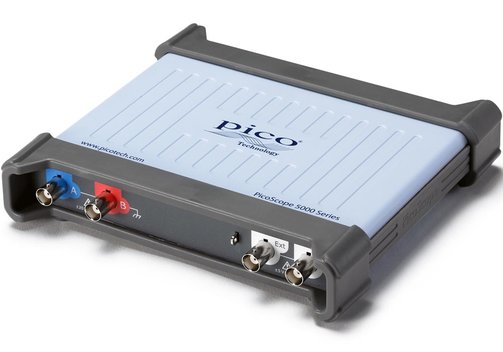

Models PicoScope PS5242D, PS5243D, PS5244D, PS5442D, PS5443D, PS5444D

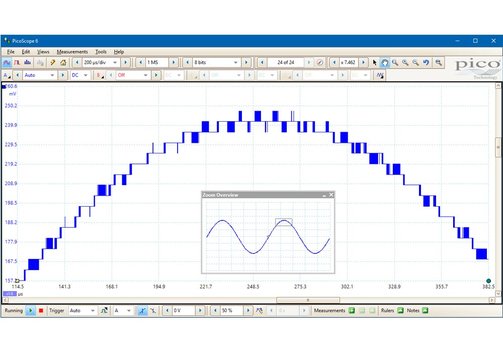

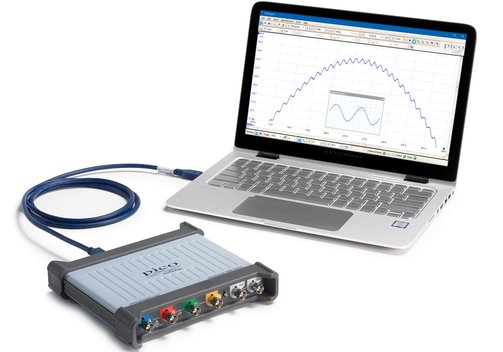

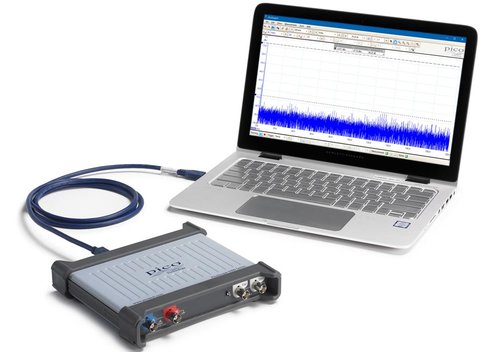

The PicoScope 5000D series includes advanced USB 3.0 SuperSpeed (compatible with USB 2.0) PC oscilloscopes with unique FlexRes technology. FlexRes means that the resolution can be selected between 8, 12, 14, 15, and 16 bit as required. This allows optimization of the inputs either for high sampling rates up to 1 GS/s at 8 bit, or for high resolution 16 bit at 62.5 MS/s, or other combinations in between. PicoScope 5000D series instruments have 2 or 4 analog channels. The bandwidth of the devices is 60, 100, or 200 MHz. Advanced triggers are available for the analog and digital channels. PicoScope 5000D Series oscilloscopes have waveform capture memory up to 512 MS enabling the capture of long-duration waveforms at maximum sampling speed. PicoScope's DeepMeasure tool uses the deep memory to analyze every cycle contained in each triggered waveform acquisition. It displays results in a table, with the parameter fields shown in columns and waveform cycles shown in rows. Serial decoding and analysis are included as standard.

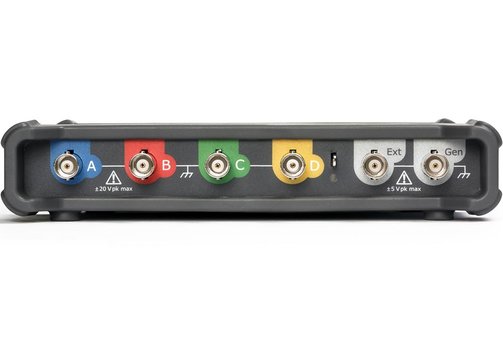

- 2 or 4 analog channels.
- 60, 100, or 200 MHz bandwidth.

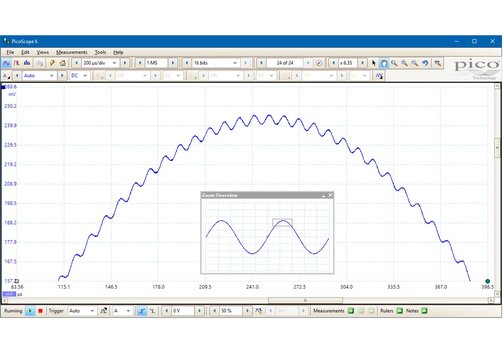

- FlexRes resolution: 8, 12, 14, 15, or 16 bit selectable.
- Sample rate depending on selected resolution and number of channels: 1 GS/s at 8 bit, 500 MS/s at 12 bit, 62.5 MS/s at 16 bit.
- Memory depth 128, 256, or 512 MS.
- Function generator/signal generator and arbitrary waveform generator/AWG included, bandwidth 20 MHz.
- Incl. the versatile ▸PicoScope7 software for Windows, Linux, Mac, as well as the SDK/software developer kit for programmers/developers:
- Versatile mathematics, statistics, automatic measurement and advanced triggering included.
- Mask testing included.
- Serial bus-decoding included for various protocols, among them 1-Wire, ARINC429, CAN/CAN-FD, BroadR-Reach (100BASE-T1), DALI, DCC, DMX512, Ethernet 10Base-T/100Base-TX, FlexRay, I²C, I²S, LIN, PS/2, Manchester, MODBUS, SENT, SPI, UART (RS232/RS422/RS485), USB 1.1.
- Spectrum analyzer function included.

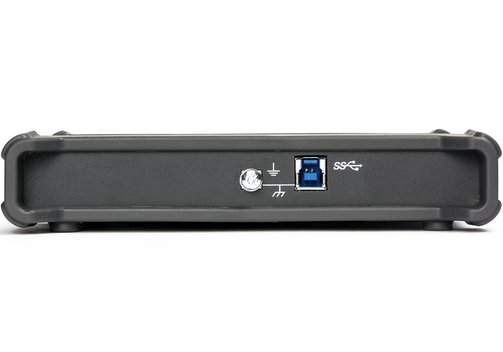

- All models for USB 3.0 (compatible with 2.0).

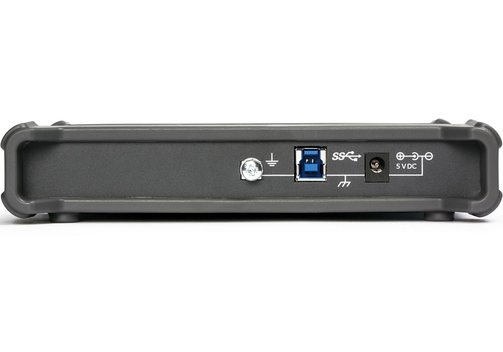

- 2-channel models: USB bus-powered, 4-channel models: External power supply (inkl.).
Model Overview
| Model | PicoScope 5242D | PicoScope 5243D | PicoScope 5244D | PicoScope 5442D | PicoScope 5443D | PicoScope 5444D | |||||||||||||||||||||||||||||||||||||
| PQ143 | PQ144 | PQ145 | PQ146 | PQ147 | PQ148 | ||||||||||||||||||||||||||||||||||||||
| Channels | Analog | 2 | 2 | 2 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||
| Digital | - | - | - | - | - | - | |||||||||||||||||||||||||||||||||||||
| Bandwidth | 60 MHz | 100 MHz | 200 MHz | 60 MHz | 100 MHz | 200 MHz | |||||||||||||||||||||||||||||||||||||
| Sample rate | Realtime |
| |||||||||||||||||||||||||||||||||||||||||
| ETS/equivalent, 8 bit | 2.5 GS/s | 5 GS/s | 10 GS/s | 2.5 GS/s | 5 GS/s | 10 GS/s | |||||||||||||||||||||||||||||||||||||
| Memory depth | 128 MS | 256 MS | 512 MS | 128 MS | 256 MS | 512 MS | |||||||||||||||||||||||||||||||||||||
| Resolution | FlexRes, selectable 8 bit, 12 bit, 14 bit, 15 bit, 16 bit hardware resolution + 4 bit) | ||||||||||||||||||||||||||||||||||||||||||
| Serial decoding | 20 protocols, including 1-Wire, ARINC 429, CAN, CAN FD, DALI, DCC, DMX512, Ethernet 10Base-T and 100Base-TX, BroadR-Reach/Ethernet 100Base-T1, FlexRay, I²C, I²S, LIN, Manchester, PS/2, MODBUS, SENT, SPI, UART (RS232/RS422/RS485), USB 1.1 | ||||||||||||||||||||||||||||||||||||||||||
| More features | Spectrum analyzer (DC to scope bandwidth), math channels, automatic measurements, mask limit test, advanced trigger | ||||||||||||||||||||||||||||||||||||||||||
| Signal generator | 1 channel, 0.025 Hz...20 MHz signal generator (sine, square, triangle, DC voltage, rampe up/down, sinc, Gauss, halfsine), pseudorandom output signal, pseudorandom binary sequence (PRBS); arbitrary waveform generator: Update rate 200 MHz, buffer size 32 kS, resolution 14 bit, bandwidth >20 MHz | ||||||||||||||||||||||||||||||||||||||||||
| Interface | USB 3.0 SuperSpeed (compatible with 2.0) | ||||||||||||||||||||||||||||||||||||||||||
| Power supply | USB bus-powered | External ower supply | |||||||||||||||||||||||||||||||||||||||||
Included: USB PC oscilloscope from the PicoScope 5000D series (PS 5242D, 5243D, 5244D, 5442D, 5443D, or 5444D), ▸PicoScope7 software and user manual (download), 1x TA155 USB 3 cable 1.8 m, 2x or 4x probes (60 MHz models: TA375/100 MHz models: TA375/200 MHz models: TA386), 4-channel models: 1x PS011 5 V/3.0 A PSU.
Frequently Asked Questions:
Question: Why flexible resolution?
Answer: If you purchase a current standard oscilloscope, it will most likely be specified with a resolution of 8 bit. In the age of digital signals, manufacturers are emphasizing fast sample rates and high bandwidths at standard 8 bit resolution. However, some signals from the "analog world" require higher resolutions at often lower required bandwidths and sample rates (for example audio signals, vibration analysis and many more). Here, the focus is on improved dynamic range, lower noise, and reduced distortion. The PicoScope 4000A series offers 12-bit resolution for such applications. However, this resolution is fixed. With the FlexRes technology, you get the "best of both worlds" in one instrument: The oscilloscope hardware can be reconfigured to optimize for either sampling rate (fast at 8 bits) or resolution (up to 16 bits, slower) and stages inbetween. So if you need to capture both types of sinals, the PicoScope 5000D models are the ideal solution.
Question: Do the Picoscope 5000D oscilloscopes also work with the ▸PicoScope7 software?
Answer: Yes, like all standard Pico Technology oscilloscopes, the PiscoScope 5000D units work with the ▸PicoScope7 software and SDK. FlexRes technology is supported by the software. ▸PicoScope7 software also offers a huge range of features as standard, such as advanced triggers, serial decoding and mask limit testing.
Question: Can I switch the language in ▸PicoScope7 software, for example to German?
Answer: Yes, ▸PicoScope7 can be switched to several languages, including of course German, English, French and many more. The detailed PDF manuals are also available in English, German, French, Spanish, Italian and Chinese in most cases.
