Benefits of the PicoScope PS3000-MSO Series - Logic Analsysis on Board!

  • USB 2- or 4-channel PC oscilloscope allrounders, bandwidths up to 200 MHz.
  • Logic analyzer on board: Mixed-signal models with 16 additional digital/logic channels.
  • Deep memory up to 512 MS.

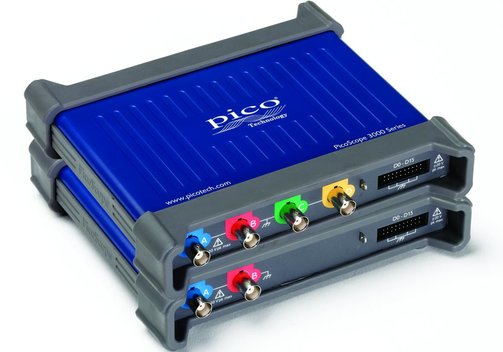

PicoScope 3000 Series USB PC Mixed-Signal Oscilloscopes, 2/4 Channels, up to 200 MHz

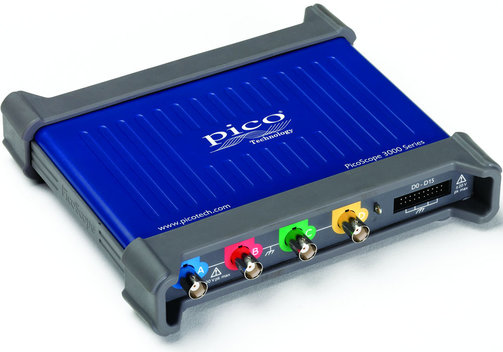

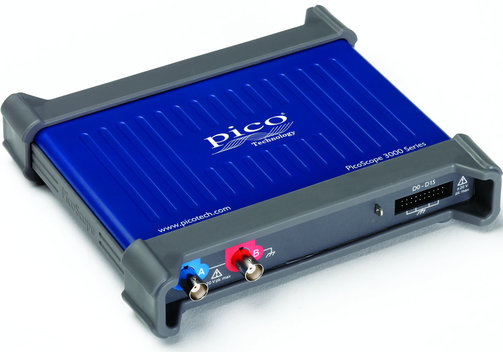

Models PicoScope 3203D-MSO, PS3204D-MSO, PS3205D-MSO, PS3206D-MSO, PS3403D-MSO, PS3404D-MSO, PS3405D-MSO, PS3406D-MSO

The PicoScope 3000 series are 2- and 4-channel USB PC oscilloscopes with bandwidths from 50 to 200 MHz and maximum sample rates up to 1 GS/s. The oscilloscopes are suitable for many applications from laboratory to embedded. The mixed-signal models offer an integrated logic analyzer with 16 digital channels. The proven ▸PicoScope7 software is packed with professional features such as math, statistics, automatic measurements, advanced triggering, mask testing or serial bus decoding.

  • 2 or 4 analog channel.
  • 50, 70, 100, or 200 MHz bandwidth.
  • 1 GS/s max. sampling rate (1 channel).
  • Memory depth, depending on model, between 64 MS and 12 MS.
  • Function generator/signal generator and arbitrary waveform generator/AWG included, bandwidth 1 MHz.
  • Mixed-signal models (MSO): 16 logic channels (2 ports) for the analysis of mixed circuitry designs.
  • Incl. the versatile ▸PicoScope7 software for Windows, Linux, Mac, as well as the SDK/software developer kit for programmers/developers:
    • Versatile mathematics, statistics, automatic measurement and advanced triggering included.
    • Mask testing included.
    • Serial bus-decoding included for various protocols, including 1-Wire, ARINC429, CAN/CAN-FD, BroadR-Reach (100BASE-T1), DALI, DCC, DMX512, Ethernet 10Base-T/100Base-TX, FlexRay, I²C, I²S, LIN, PS/2, Manchester, MODBUS, SENT, SPI, UART (RS232/RS422/RS485), USB 1.1.
    • Spectrum analyzer function included.
  • All models for USB 3.0 (compatible with 2.0).
  • Depending on model USB-powered or external AC power adaptor.

Model Overview

ModelPicoScope 3203D-MSOPicoScope 3204D-MSOPicoScope 3205D-MSOPicoScope 3206D-MSOPicoScope 3403D-MSOPicoScope 3404D-MSOPicoScope 3405D-MSOPicoScope 3406D-MSO
PP956PP931PP932PP933PP957PP934PP935PP936
ChannelsAnalog22224444
Digital1616161616161616
Bandwidth50 MHz70 MHz100 MHz200 MHz50 MHz70 MHz100 MHz200 MHz
Sample rate1 analog channel (all): 1 GS/s
2 analog channels (all) or digital ports (MSO): 500 MS/s
4 analog channels (all) or digital ports (MSO): 250 MS/s
more than 4 analog channels or digital ports (MSO): 125 MS/s
Memory depth64 MS128 MS256 MS512 MS64 MS128 MS256 MS512 MS
Resolution8 bit
Serial decodingSupports a variety of protocols, including 1-Wire, ARINC 429, CAN, CAN FD, DALI, DCC, DMX512, Ethernet 10Base-T and 100Base-TX, BroadR-Reach/Ethernet 100Base-T1, FlexRay, I²C, I²S, LIN, Manchester, PS/2, MODBUS, SENT, SPI, UART (RS232/RS422/RS485), USB 1.1
More featuresSpectrum analyzer (DC to scope bandwidth), math channels, automatic measurements, mask limit test, advanced trigger
Signal gneratorDC...1 MHz. ±2 V. Sine, square, triangle, DC; rampe up/down, sinc, Gauss, halfsine, white noise, PRBS; AWG 20 MS/s, 12 bit, >1 MHz, buffer: 32 kS

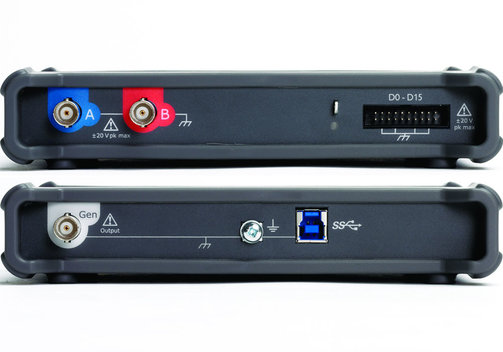

InterfaceUSB 3.0 SuperSpeed (compatible with 2.0)
Power supply USB bus-poweredExternal ower supply

Included: USB oscilloscope from the PicoScope 3000 series (PS3203D-MSO, PS3204D-MSO, PS3205D-MSO, PS3206D-MSO, PS3403D-MSO, PS3404D-MSO, PS3405D-MSO, or PS3406D-MSO), ▸PicoScope7 software and user manual (download), USB cable, 2x or 4x switchabel x1/x10 probes. TA136 digital cable and 2x TA139 logic test clips included. 4-channel models: Power supply adaptor.
