PicoScope 3000E Series USB PC Oscilloscopes/MSO up to 500MHz
Benefits of the PicoScope 3000 E 8/10-bit Embedded-Oscilloscopes
- Up to 350 or 500 MHz bandwidth.
- 5 GS/s real-time sample rate, 2 GS memory depth.

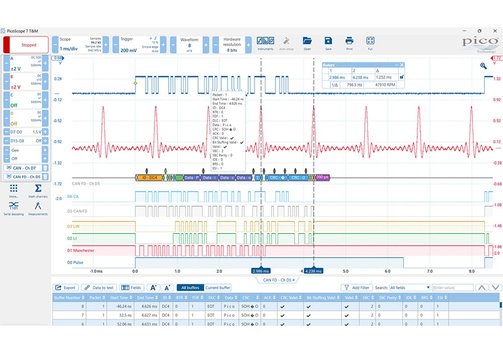

- USB-C-powered; supported by the ▸PicoScope7 software.

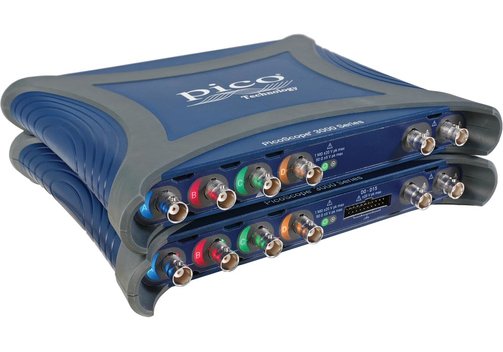

PicoScope3000E Series USB PC Oscilloscopes/MSO up to 500 MHz

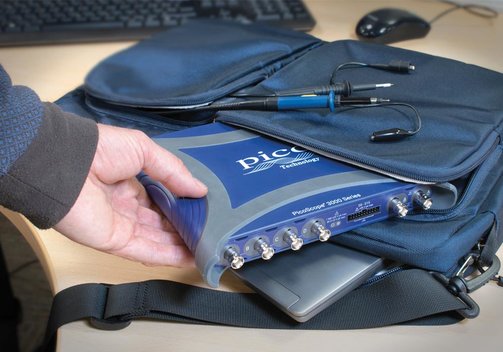

Where power and performance meet portability! The PicoScope 3000E series is a range of USB-powered PC oscilloscopes which are small, light, and portable. They provide high-performance specifications ideal for engineers working on advanced electronics and diverse embedded system technologies, either in the laboratory or on the move. Just like all other PicoScopes, the PicoScope 3000E series is supported by the advanced ▸PicoScope7 test and measurement software. The scopes offer high bandwidths up to 500 MHz, a high real-timesampling rate up to 5 GS/s, and deep memory up to 2 GS. The deep memory enables capture of long-duration signals at maximum sampling rate and is complemented with the PicoScope DeepMeasure tool that delivers automatic measurements of waveform parameters on up to a million waveform cycles with each triggered acquisition.

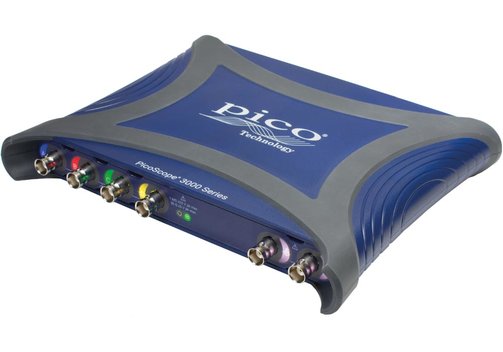

- 4-channel USB PC oscilloscope.

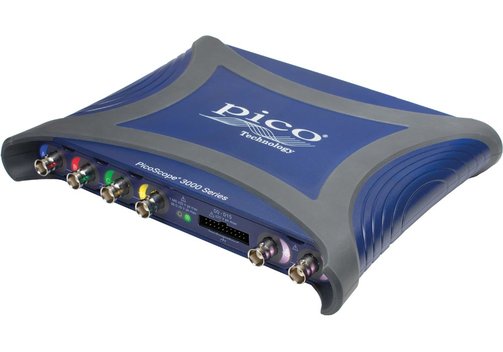

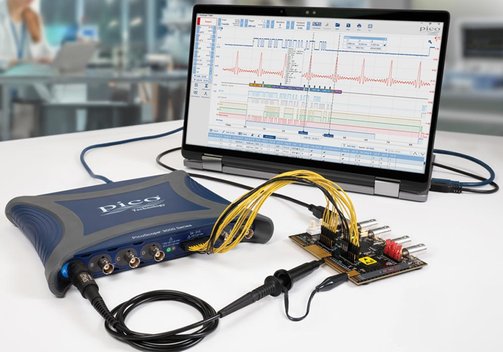

- MSO models (mixed-signal) with 16 additional digital/logic channels.
- 350 MHz or 500 MHz bandwidth.
- Up to 5 GS/s sampling rate, 8 or 10-bit resolution.
- 2 GS ultra-deep capture memory.
- Function/arbitrary waveform generator included.
- Compact, portable and USB powered.
- 40 serial protocol decoders included as standard.
- Segmented memory, persistence and fast waveform updates.
- Advanced math, measurements, masks and digital triggering.
- ▸PicoScope7 software 7 for Windows, Mac, and Linux with free updates.
- Support for LabVIEW, MATLAB, and writing your own code.
Model Overview
| Model | PicoScope 3417E | PicoScope 3417E MSO-Kit | PicoScope 3418E | PicoScope 3418E MSO-Kit | |||||||||||||||||||||||||
| Kit PQ347 | Kit PQ352 | Kit PQ349 | Kit PQ354 | ||||||||||||||||||||||||||
| Analog channels | 4 | 4 | |||||||||||||||||||||||||||
| Bandwidth | 350 MHz | 500 MHz | |||||||||||||||||||||||||||
| Sample rate (max., real time) |
| ||||||||||||||||||||||||||||
| Memory depth | Ultra-deep capture memory; PicoScope DeepMeasure tool and segmented memory supported; 8 bit, 1 channel: 2 GS; 8 bit, 2 channels: 1 GS; 8 bit, 3 or 4 channels: 512 MS; 8 bit, >4 channels: 256 MS; 10 bit, 1 channel: 1 GS; 10 bit, 2 channels: 512 MS; 10 bit, 3 or 4 channels: 256 MS; 10 bit, >4 channels: 126 MS | ||||||||||||||||||||||||||||
| Resolution | 8 bit (20, 50, 100, 200, 350 MHz); 10 bit (20, 50, 100, 200 MHz) | 8 bit (20, 50, 100, 200, 350, 500 MHz); 10 bit (20, 50, 100, 200 MHz) | |||||||||||||||||||||||||||
| Trigger | Source: Any analog channel, AUX I/O trigger; trigger modes: None, auto, repeat, single, rapid (segmented memory); advanced trigger types (analog channels): Edge (rising, falling, rising-or-falling), window (entering, exiting, entering-or-exiting), pulse width (positive or negative or either pulse), window pulse width (time inside, outside window or either), level dropout (including high/low or either), window dropout (including inside, outside or either), interval, runt (positive or negative), transition time (rise/fall), logic; logic trigger capabilities: AND/OR/NAND/NOR/XOR/XNOR function of any trigger sources (analog channels and aux input); User-defined Boolean function of any combination of analog channels plus aux input (PicoSDK only) | ||||||||||||||||||||||||||||
| Serial decoding | 40 serial decoders included as standard: 1-Wire, 10BASE-T1S, ARINC 429, BroadRReach, CAN, CAN FD, CAN J1939, CAN XL, DALI, DCC, Differential Manchester, DMX512, Ethernet 10BASE-T, Extended UART, Fast Ethernet 100BASE-TX, FlexRay, I2C, I2S, I3C BASIC v1.0, LIN, Manchester, MIL-STD-1553, MODBUS ASCII, MODBUS RTU, NMEA-0183, Parallel Bus, PMBus, PS/2, PSI5 (Sensor), Quadrature, RS232/UART, SBS Data, SENT Fast, SENT Slow, SENT SPC, SMBus, SPI-MISO/MOSI, SPI-SDIO, USB (1.0/1.1), Wind Sensor | ||||||||||||||||||||||||||||
| Additional functions | Advanced maths, automatic measurements, mask limit testing, digital triggering, customizable actions (that users can set up to automatically perform in response to events in long-duration unattended soak tests), spectrum analyzer (DC to scope bandwidth) | ||||||||||||||||||||||||||||
| Digital/logic channels (MSO) | - | 16 (2 logical ports of 8 channels each; max. input frequency 100 MHz (200 Mbit/s), min. detectable pulse width 5 ns) | - | 16 (2 logical ports of 8 channels each; max. input frequency 100 MHz (200 Mbit/s), min. detectable pulse width 5 ns) | |||||||||||||||||||||||||
| Signal generator | Function and arbitrary waveform generator; standard output signals sine, square, triangle, DC voltage, ramp up, ramp down, sinc, Gaussian, half-sine, pseudorandom output signals; output frequency range 100 µHz to 20 MHz; arbitrary: 200 MS/s, 14 bit buffer size 32 kS, bandwidth >20 MHz | ||||||||||||||||||||||||||||

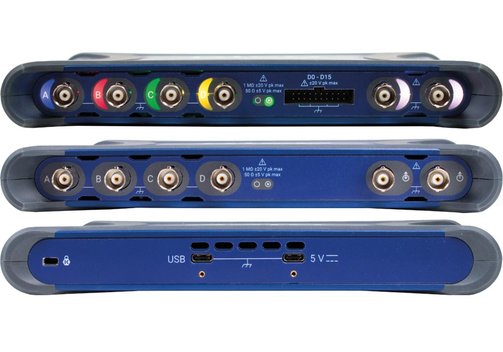

| I/O Connectors | 4x BNC front-side (analog channels), 2x BNC front-side (Aux-I/O, AWG output) | ||||||||||||||||||||||||||||
| Interface | USB 3.0 SuperSpeed (USB 2.0 compatible); Type-C connecotr | ||||||||||||||||||||||||||||
| Power supply | Powered over USB; adaptor for earlier USB port types included | ||||||||||||||||||||||||||||
| Dimensions (mm) | 221 x 173 x 30; <0.7 kg | ||||||||||||||||||||||||||||

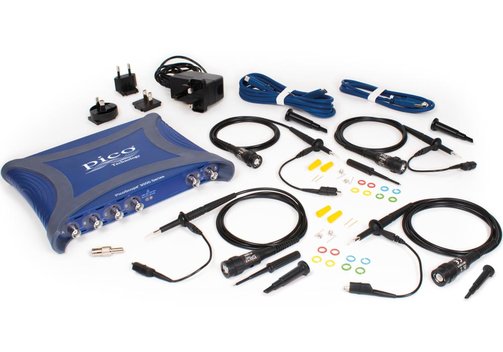

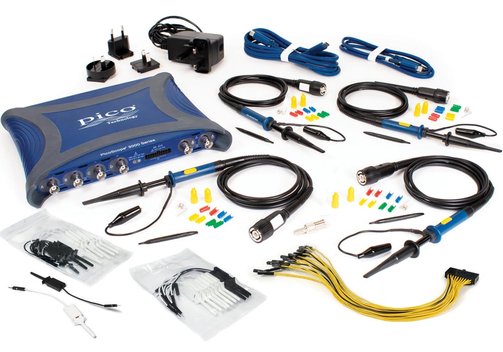

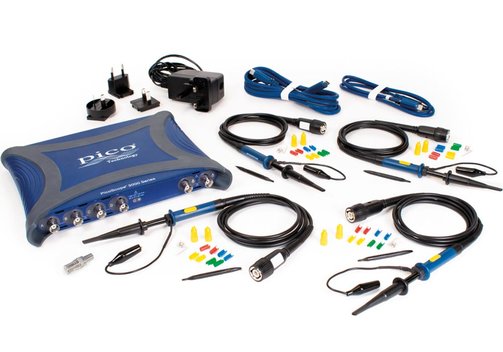

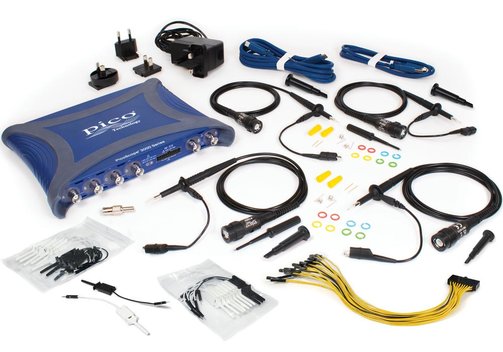

| Kit includes | PicoScope 3417E | PicoScope 3417E MSO MSO cable and 2x TA139 set of MSO clips | PicoScope 3418E | PicoScope 3418E MSO MSO cable and 2x TA139 set of MSO clips | 4x probes TA536 (350 MHz, 1:1/10:1), 1x BNC adaptor TA537 (5 mm probe-to-BNC) | 4x probe TA562 (500 MHz, 10:1), 1x BNC adaptor TA563 (3.5 mm probe-to-BNC) | |||||||||||||||||||||||
| TA532 (USB-C to USB-C cable, 1.8 m), TA534 (USB-A to USB-C cable, 0.9 m), PS017 (USB-C power supply, with UK, EU, US and AUS plugtops), user's guide | |||||||||||||||||||||||||||||
Optional Compatible Accessories and Replacement Items
| Model | Description |
| TA536 | 350 MHz probe (single pack) |
| TA562 | 500 MHz probe (dual pack) |
| TA532 | USB Type-C to USB Type-C cable, 1.8 m |
| TA534 | USB Type-A to USB Type-C cable, 0.9 m |
| TA537 | BNC adaptor for the TA536 oscilloscope probe |
| TA563 | BNC adaptor for the TA562 oscilloscope probe |
| PS017 | Power supply, 5 V/3 A, UK/EU/US/AUS, USB-C |
