PicoScope 2000 Series USB PC Mixed-Signal Oscilloscope, 2 channels, up to 100MHz
Benefits of the PicoScope PS2000-MSO Series - Compact Oscilloscope and Logic-Analyzer
- USB PC oscilloscope and logic-analyzer for education and as a low-cost embedded scope (high volume).
- 2 or 4 channels with bandwidth up to 100 MHz and 16 logic channels (mixed-signal).
- Memory depth up to 128 MS.

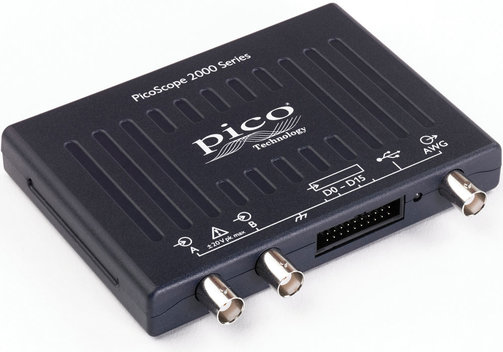

PicoScope2000 Series USB PC Mixed-Signal Oscilloscope, 2 channels, up to 100 MHz
The PicoScope 2000 series offers affordable, super-compact 2 and 4-channel USB PC oscilloscopes with bandwidths from 10 to 100 MHz and a max. sample rates from 100 MS to 1 GS/s. The oscilloscopes are the modern alternative to bulky desktop devices and, thanks to their attractive price/performance ratio and compact design, they are suitable for hobby and education as well as for large quantities in industry as embedded devices. The mixed-signal models offer an integrated logic analyser with 16 digital channels. The proven ▸PicoScope7 software is packed with professional features such as maths, statistics, automatic measurements, advanced triggering, mask testing or serial bus decoding.
- 2 or 4 analog channels.
- 10, 25, 50, 70, or 100 MHz bandwidth.
- 100, 200, 500 MS/s, or 1 GS/s max. sampling rate (1 channel).
- Memory depth, depending on model, between 8 kS/s and 128 MS.
- Function generator/signal generator and arbitrary waveform generator/AWG included, bandwidth, depending on model, 100 kHz or 1 MHz.
- Mixed-signal models (MSO): 16 logic channels (2 ports) for the analysis of mixed circuitry designs.
- Incl. the versatile ▸PicoScope7 software for Windows, Linux, Mac, as well as the SDK/software developer kit for programmers/developers:
- Versatile mathematics, statistics, automatic measurement and advanced triggering included.
- Mask testing included.
- Serial bus-decoding included for various protocols, including them 1-Wire, ARINC429, CAN/CAN-FD, BroadR-Reach (100BASE-T1), DALI, DCC, DMX512, Ethernet 10Base-T/100Base-TX, FlexRay, I²C, I²S, LIN, PS/2, Manchester, MODBUS, SENT, SPI, UART (RS232/RS422/RS485), USB 1.1.
- Spectrum analyzer function included.
- All models for USB 2.0.
- USB-powered.
Model Overview
| Model | PicoScope 2205A-MSO | PicoScope 2206B-MSO | PicoScope 2207B-MSO | PicoScope 2208B-MSO | |
| PQ008 | PQ009 | PQ010 | PQ011 | ||
| Channels | Analog | 2 | 2 | 2 | 2 |
| Digital | 16 | 16 | 16 | 16 | |
| Bandwidth | 25 MHz | 50 MHz | 70 MHz | 100 MHz | |
| Sample rate | 1 channel | 500 MS/s | 1 GS/s | 1 GS/s | 1 GS/s |
| 2 channels | 500 MS/s | 500 MS/s | 500 MS/s | 500 MS/s | |
| Other combinations | 250 MS/s | 500 MS/s | 500 MS/s | 500 MS/s | |
| ETS/equivalent, 8 bit | 5 GS/s | 10 GS/s | 10 GS/s | 10 GS/s | |
| Memory depth | 48 kS | 32 MS | 64 MS | 128 MS | |
| Resolution | 8 bit | ||||
| Serial decoding | Supports a variety of protocols, including 1-Wire, ARINC 429, CAN, CAN FD, DALI, DCC, DMX512, Ethernet 10Base-T and 100Base-TX, BroadR-Reach/Ethernet 100Base-T1, FlexRay, I²C, I²S, LIN, Manchester, PS/2, MODBUS, SENT, SPI, UART (RS232/RS422/RS485), USB 1.1 | ||||
| More features | Spectrum analyzer (DC to scope bandwidth), math channels, automatic measurements, mask limit test, advanced trigger | ||||
| Signal generator | Sine, square, triangle, DC, ramp, sinc, Gauß, halfsine; models B additional white noise, PRBS | ||||
| Models A: DC...100 kHz; AWG 1,548 MHz update rate, 8 bit, 4 kS buffer/32 kS buffer for 2205A-MSO version | |||||
| Models B: DC...1 MHz; AWG 20 MHz update rate, 12 bit, 32 kS buffer | |||||
| Interface | USB 2.0 HighSpeed | ||||
| Power supply | USB bus-powered | ||||

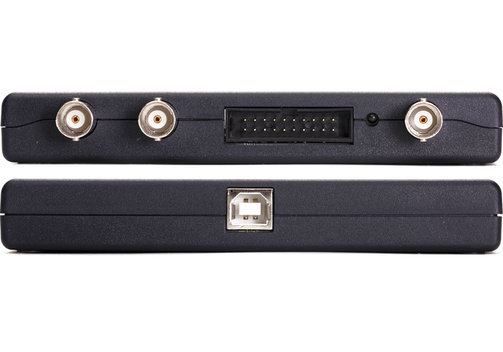

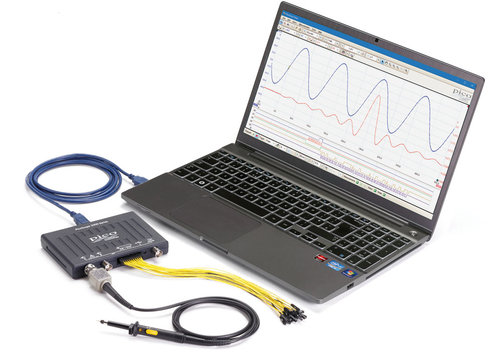

Included: USB oscilloscope from the PicoScope2000 series (PS2205A-MSO, PS2206B-MSO, PS2207B-MSO, or PS2208B-MSO), ▸PicoScope7 software and user manual (download), USB cable, 2x x1/x10 probes, MSO digital input cable and 20 logic test clips.
Frequently Asked Questions:
Question: What is an MSO and what can it do?
Answer: MSO stands for Mixed Signal Oscilloscope. In addition to the analog inputs of a conventional oscilloscope, the MSO models offer digital inputs for acquiring and displaying digital logic signals. In other words, these instruments "include" a logic analyzer. The advantage over a pure logic analyzer is that the logic signals can be acquired and displayed in time relation to the analog channels. Thus, an analysis of the signal integrity of analog signals in relation to digital control signals is possible. Mixed-signal oscilloscopes are therefore particularly suitable for analysis and troubleshooting/debugging in mixed analog and digital circuitry designs.
Question: Is the MSO function an option or included as standard?
Answer: The PicoScope 2000-MSO series are complete mixed-signal instruments on the hardware side. The digital input cable and 20 logic test clips are also included. The PicoScope software fully supports the MSO function. In addition, passive probes for the analog inputs are included. So no further accessories or upgrade/licensing is required for MSO operation.
Question: What are the options for expanding the PicoScopes?
Answer: The PicoScopes consist of the oscilloscope module (hardware), a USB cable and the software for PC/laptop. Based on this concept, the hardware is the fixed base, Pico does not work with options here, but always provides the full functionality. The functions that have to be purchased as options with other manufacturers (e.g. licensing/activation) are implemented in Pico via the software and are included in the scope of delivery as standard. These include, for example, mask testing or the decoding and analysis of serial buses. The function and arbitrary signal generator included with most PicoScope models is also supported by the software as standard. The software is constantly updated and extended, the updates are free of charge.
