PicoLog ADC-20/24 Precision USB Datalogger, up to 16 Channels, 24bit
Benefits of the USB Data Loggers ADC-20 and ADC-24
- 20 or 24 bit USB PC datalogger.
- 4 or 8 true differential/8 or 16 single-ended inputs.
- Galvanic isolation from PC.

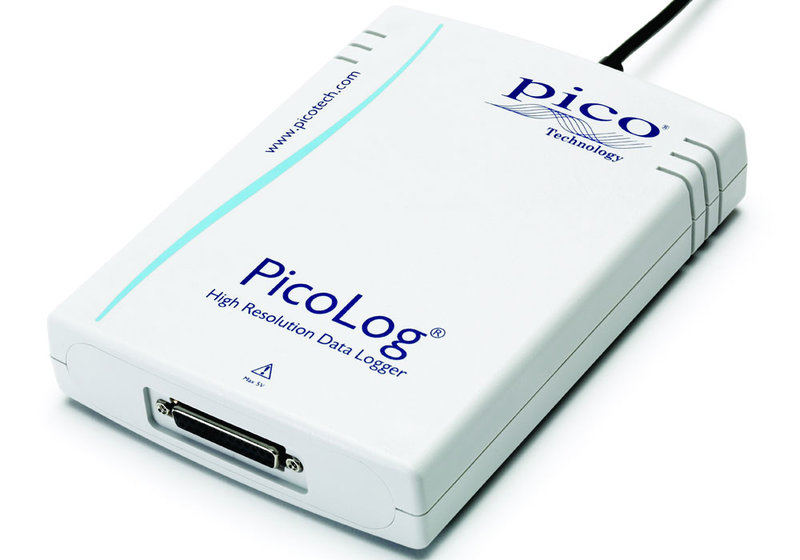

PicoLog ADC-20/24 Precision USB Datalogger, up to 16 Channels, 24 bit
With 20 or 24 bit resolution the ADC-20 and ADC-24 USB data loggers are able to detect small signal changes. Features such as true differential inputs, galvanic isolation, and software selectable sampling rates, all contribute to a superior noise free resolution, and ensure that your measurements are reliable and are accurate to within 0.1%.
- Resolution 20 or 24 bit. Detect small signal changes.
- High precision, up to 0.1% of reading.
- 8 single-ended/4 differential or 16 single-ended/8 differential channels. True-differential inputs for high noise imunity.
- 2 or 7 programmable gain/voltage ranges for easy adaption to sensors and other signals.
- Galvanic isolation from the PC.
- 4 bidirectional digital I/O channels (ADC-24).
- USB 1.1 (compatible with USB 2.0), USB-powered.
- Ruggedized housing.
- Integrated/fixed 4 m USB cable.
Model Overview
| Model | ADC-20 | ADC-24 | ||
| PP308 | PP311 | PP309 | PP312 | |
| Channels | 8 single-ended/4 differential | 16 single-ended/8 differential | ||
| Resolution | 20 bit | 24 bit | ||
| Rate | Between 60 and 660 ms per channel | Between 60 and 660 ms per channel | ||
| Ranges | ±2500 mV, ±1250 mV (2 ranges) | ±2500 mV...±39 mV (7 ranges) | ||
| Digital-I/O | - | 4 | ||
| Terminal card | - | 1x included | - | 1x included |
| Interface | USB 1.1 | USB 1.1 | ||

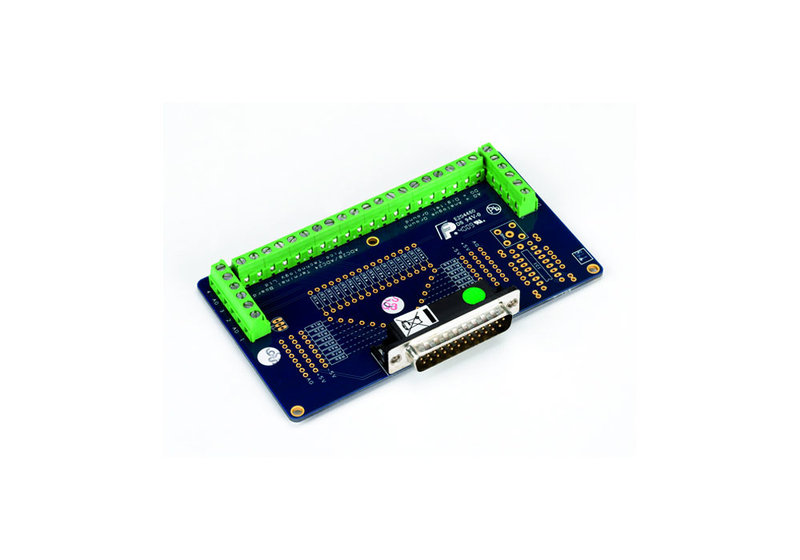

Included: USB module (on of the versions), CD with Software, 4 m integrated USB cable, kits: terminal board ADC-2x with screw terminal.
Software: Datalogger software PicoLog for Windows, for data acquisition, logging, analysis, data display (spreadsheet or graph/X-Y graph). For up to 1 million samples. Software development kit/SDK with programming examples for C, Delphi, Visual Basic; drivers for LabVIEW, Agilent VEE and Excel.
Raspberry-Pi supported.
New: ▸PicoLog Cloud.
