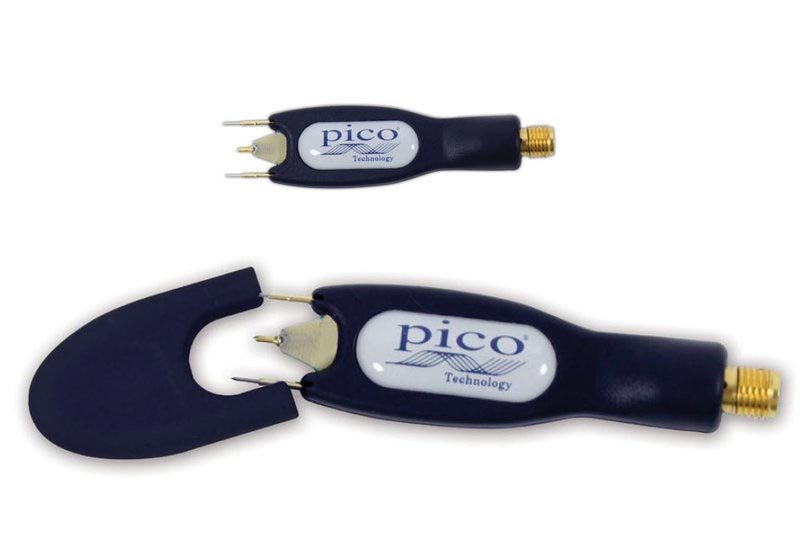

PicoConnect 900 Series Microwave and Gigabit Test Probes

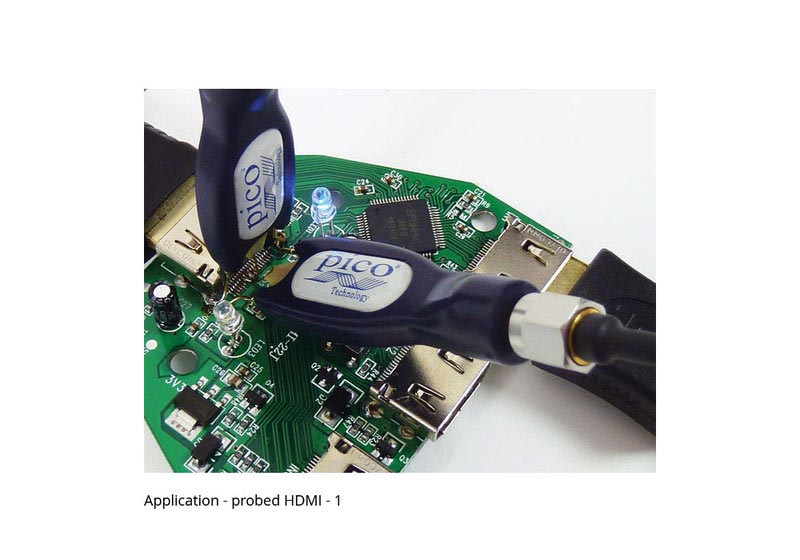

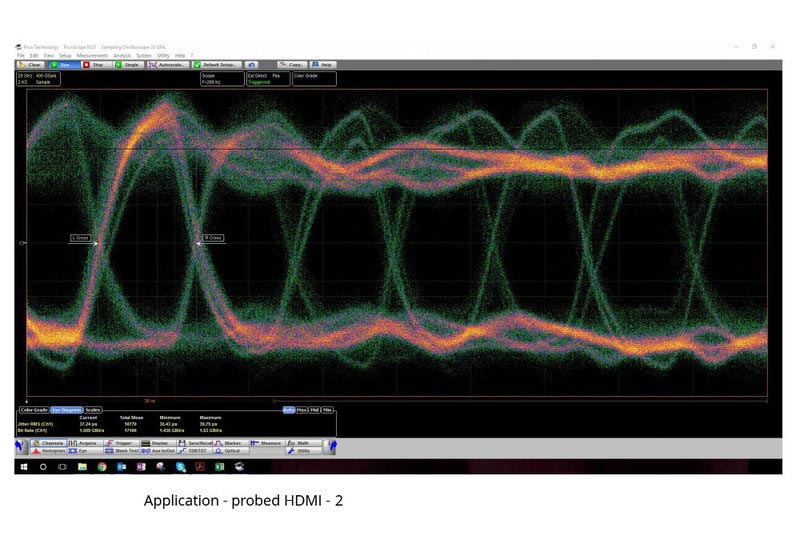

The PicoConnect passive probes allow cost-effective fingertip browsing of broadband signals or data streams out to 9 GHz or 18 Gb/s. These include the USB 2.0 and 3.0, HDMI 1 and 2, Ethernet, PCIe, SATA and LVDS standards.

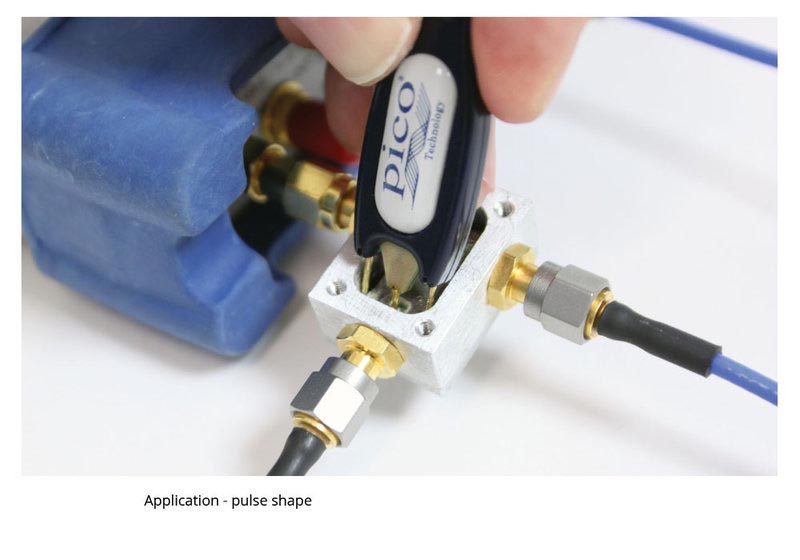

With less than 0.4 pF tip capacitance and ground-referred loading of 220...910 Ω, overall the PicoConnect probes are less invasive than the majority of existing and more costly probing solutions. To achieve measurement accuracies down to a few percent they are ratio-compensated for their typical application: the probing of transmission lines and ports between 40 and 100 Ω (80 to 200 Ω differential).
Suited to interfacing with any measuring instrument with 50-Ω-inputs, PicoConnect probes allow broadband oscilloscope and spectrum analyzer users to browse circuitry, backplanes, interconnect and systems, typically without interrupting their function, and to do so across multiple channels without breaking a budget. Despite their attractive specification they are cost-effective in applications from as little as 500 MHz or 1 Gb/s.

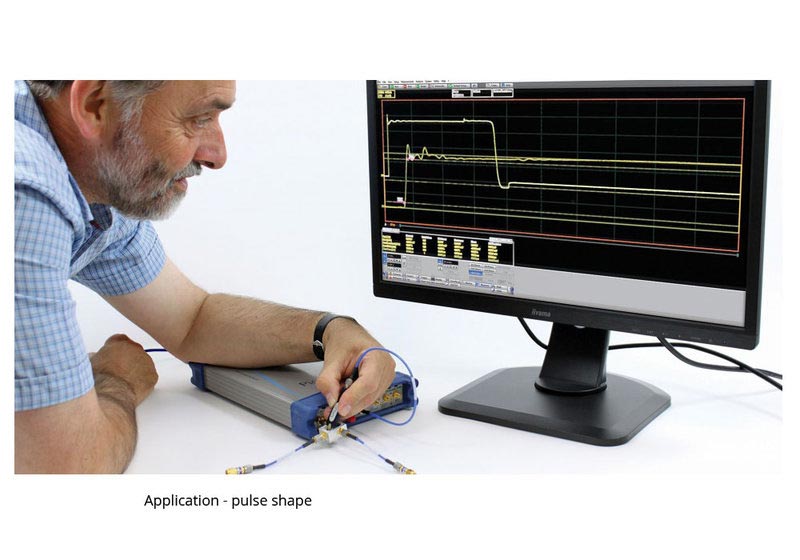

Use the PicoConnect 900 Series probes with any oscilloscope that supports standard 50 Ω probes, including PicoScope 9200 Series 12 GHz sampling oscilloscopes, PicoScope 9300 series 20 GHz sampling oscilloscopes and PicoScope 6000 series real-time oscilloscopes.
Modell Overview
| Model | 911 | 912 | 913 | 914 | 915 | 916 | 921 | 922 | 923 | 924 | 925 | 926 |
| Nominal division ratio | 20:1 | 10:1 | 5:1 | 20:1 | 10:1 | 5:1 | ||||||
| Bandwidth (-3 dB) | >4 GHz | >4 GHz | >5 GHz | >6 GHz | >7 GHz | >9 GHz | ||||||
| Max. usable data rate (fundamental) | 8 Gb/s | 8 Gb/s | 10 Gb/s | 12 Gb/s | 14 Gb/s | 18 Gb/s | ||||||
| Max. usable data rate (3rd harmonic) | 2.6 Gb/s | 2.6 Gb/s | 3.3 Gb/s | 4 Gb/s | 4.6 Gb/s | 6 Gb/s | ||||||
| Max. usable data rate (5th harmonic) | 1.6 Gb/s | 1.6 Gb/s | 2 Gb/s | 2.4 Gb/s | 2.8 Gb/s | 3.6 Gb/s | ||||||
| Transition time | <87.5 ps | <87.5 ps | <70 ps | <58.3 ps | <50 ps | <38.8 ps | ||||||
| Probe tip impedance (nominal) | 960 Ω | 440 Ω | 230 Ω | 515 Ω | 250 Ω | 220 Ω | ||||||
| Probe tip capacitance (typical/max.) | 0.3 pF/0.4 pF | 0.3 pF/0.4 pF | ||||||||||
| Coupling | AC | DC | AC | DC | AC | DC | AC | DC | AC | DC | AC | DC |
| Output connector (probe head) | SMA(f) | SMA(f) | ||||||||||
| Supplied cable | 60 cm SMA(m-m) precision unsleeved high-flex 085 microwave coaxial cable (sleeved/unsleeved and 30/60 cm options available) | 60 cm SMA(m-m) precision unsleeved high-flex 085 microwave coaxial cable (sleeved/unsleeved and 30/60 cm options available) | ||||||||||
| Dimensions (probe head), mm | 68 x 19 x 11, 5 g | 68 x 19 x 11, 5 g | ||||||||||
Model Overview
| Model | Description | |

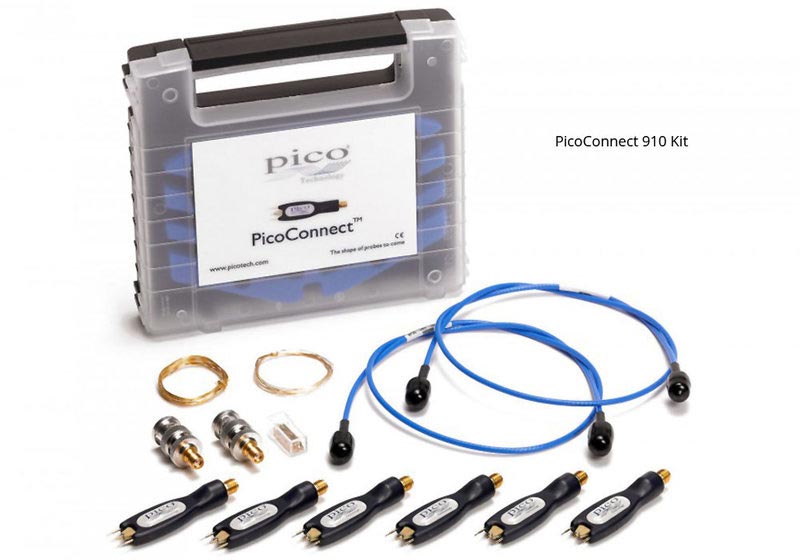

| PicoConnect 910 Kit | PQ067 | Kit, all six 4 to 5 GHz RF, microwave and pulse probe head models with cable |
| PicoConnect 911 | TA274 | 20:1 AC-coupled 4 GHz RF, microwave and pulse passive probe |
| PicoConnect 912 | TA275 | 20:1 DC-coupled 4 GHz RF, microwave and pulse passive probe |
| PicoConnect 913 | TA278 | 10:1 AC-coupled 4 GHz RF, microwave and pulse passive probe |
| PicoConnect 914 | TA279 | 10:1 DC-coupled 4 GHz RF, microwave and pulse passive probe |
| PicoConnect 915 | TA282 | 5:1 AC-coupled 5 GHz RF, microwave and pulse passive probe |
| PicoConnect 916 | TA283 | 5:1 DC-coupled 5 GHz RF, microwave and pulse passive probe |

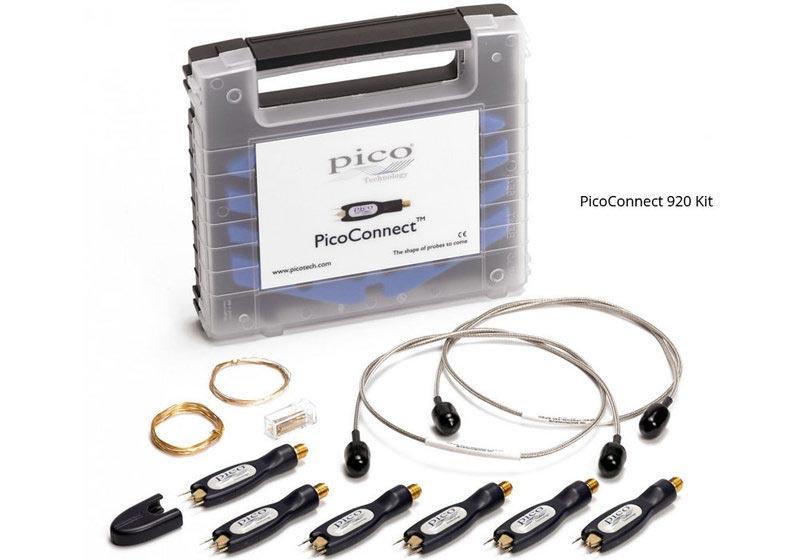

| PicoConnect 920 Kit | PQ066 | Kit, all six 6 to 9 GHz gigabit probe head models |
| PicoConnect 921 | TA272 | 20:1 AC-coupled 6 GHz gigabit passive probe |
| PicoConnect 922 | TA273 | 20:1 DC-coupled 6 GHz gigabit passive probe |
| PicoConnect 923 | TA276 | 10:1 AC-coupled 7 GHz gigabit passive probe |
| PicoConnect 924 | TA277 | 10:1 DC-coupled 7 GHz gigabit passive probe |
| PicoConnect 925 | TA280 | 5:1 AC-coupled 9 GHz gigabit passive probe |
| PicoConnect 926 | TA281 | DC-coupled 9 GHz gigabit passive probe |

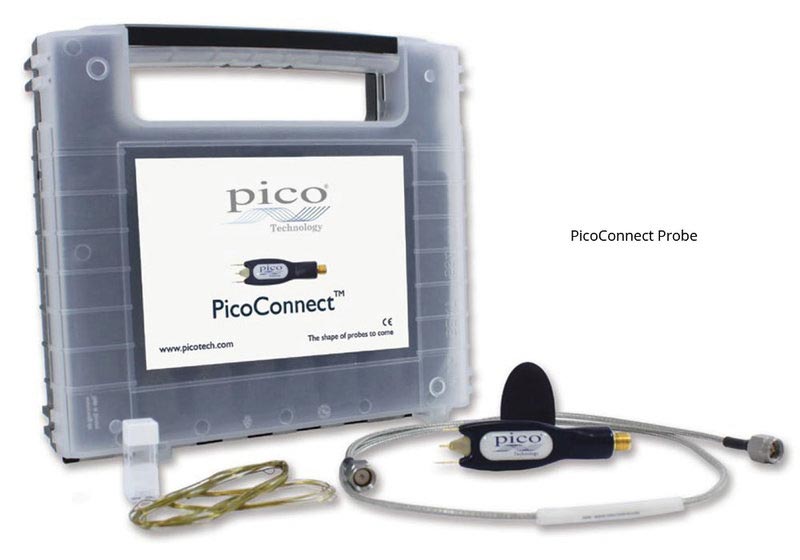

PicoConnect 900 Series single probe include: PicoConnect 900 Series probe head,
precision 60 cm 085 low-loss cable, SMA-to-BNC adaptor (with RF and Microwave models only),
quick start guide, set of replacement gold-plated probe and ground tips,
two coils of solder-in gold-plated wire, storage and carry case.
PicoConnect 900 Series six-probe kits include: Six PicoConnect 900 Series probe heads,
two precision 60 cm 085 low-loss cables, two SMA-to-BNC adaptors (with RF and Microwave models only),
quick start guide, set of replacement gold-plated probe and ground tips,
two coils of solder-in gold-plated wire, storage and carry case.
