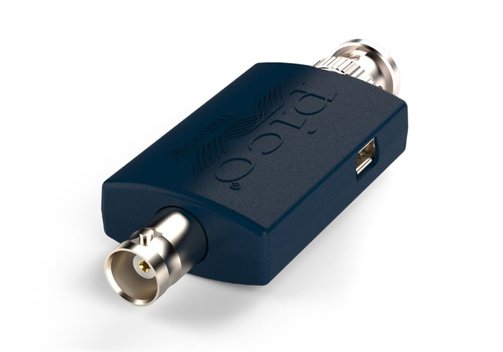

Pico Technology TA487 IEPE Signal Conditioner
The Pico TA487 signal conditioner lets you connect industry-standard IEPE (integrated electronic piezoelectric) sensors to any oscilloscope or data acquisition device with BNC inputs. The interfacing device is USB-powered, using the cable supplied, and provides a 4 mA constant current source to power a connected IEPE sensor.
Model Overview
| Model | Pico TA487 |
| Bandwidth (-3 dB) | 0.1 Hz...30 kHz |
| Input connection (from transducer) | BNC female |
| Signal gain | 1:1 |
| Accuracy | ±1% (additional to transducer and measuring instrument accuracy) |
| Noise | <60 µVRMS |
| SupplyVoltage to transducer 28 V ±3%; current to transducer 4 mA ±5% | |
| Discharge time constant | 1.85 s |
| Required measuring instrument impedance | 1 MΩ (greater than 1 MΩ can be used, but will affect discharge time constant and low-frequency response) |
| Power | Connection: USB mini B; requirements: USB (5 VDC, <100 mA) |
| 76 x 30 x 15; 30 g | |
| Compliance | Safety: Designed to EN 61010-1:2010+A1:2019; EMC: Tested to EN 61326-1:2013 and FCC Part 15 Subpart B; environmental: RoHS, WEEE and REACH compliant |

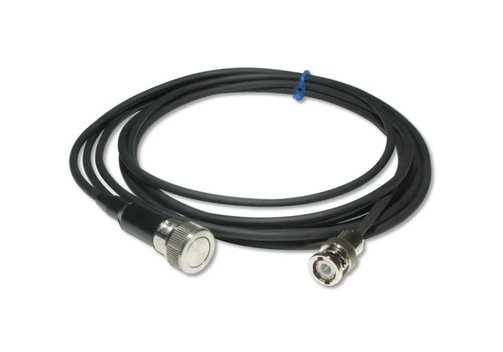

Pico Technology TA095 Single-Axis IEPE Accelerometer
The Pico TA095 is a single-axis IEPE accelerometer for a wide range of applications. It can be used with any suitable device that provides a constant-current IEPE power source, such as the Pico TA487 IEPE signal conditioner. The TA095 is available within a kit (PP697). The kit contains a calibration certificate and an introductory guide. Mounting the TA095 can be achieved by using the mounting stud fitted, or by using the optional TA096 mounting magnet available separately as an optional accessory.
Model Overview
| Model | Pico TA095 |
| Sensitivity (±15%) | 10.2 mV/(m/s²) |
| Measurement rang | ±490 m/s² |
| Frequency range | 0.5 Hz...10 kHz |
| Broadband resolution (1 Hz...10 kHz) | 3434 µm/s² |
| Nonlinearity | ±1% |
| Transverse sensitivity | ≤7% |
| Settling time (within 1% of bias) | ≤2.0 s |
| Discharge time constant | ≥0.3 s |
| Excitation | Excitation voltage: 18...28 VDC, constant current excitation: 2...20 mA |
| Output impedance | <150 Ω |
| Spectral noise | 10 Hz: 78.5 (µm/s²)/√Hz; 100 Hz: 49.1 (µm/s²)/√Hz; 1 kHz: 39.2 (µm/s²)/√Hz |
| Electrical isolation (case) | >108 Ω |
| Overload limit (shock) | 49,050 m/s² pk |
| Temperature range | –54...+121°C |
| Enclosure rating | IP68 |
| Dimensions (mm) | 14 x 64; 99.3 g (with cable); cable lenght 3 m (molded integral cable) |
| Mounting | Stud; mounting thread 1/4-28 female; mounting torque 2.7 to 6.8 Nm |
| Sensing element | Ceramic; sensing geometry: Shear |
| Housing material | Stainless steel; sealing: Molded |
