PicoVNA E-Cal 8.5GHz Automated Calibration Kits
PicoVNA E-Cal 8.5 GHz Automated Calibration Kits

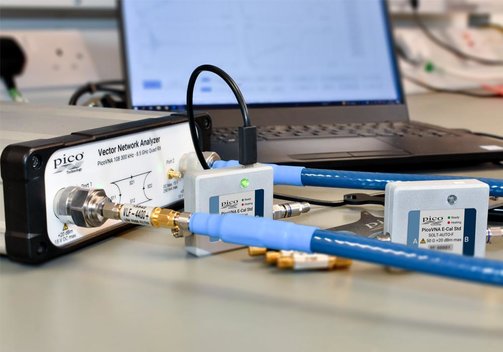

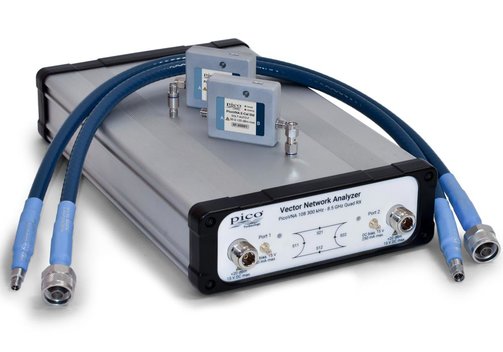

The E-Cal SOLT are automated calibration kits for the PicoVNA-108. The manual calibration process includes several torqued connect/disconnect operations and a manual loading of unique data files for each standard. With the E-Cal kits this process can be reduced to just one connection by internally switching its calibration standards. The calibration process becomes automatic and highly repeatable, with power, control and data read all managed by the PicoVNA software over a USB interface.
Model Overview

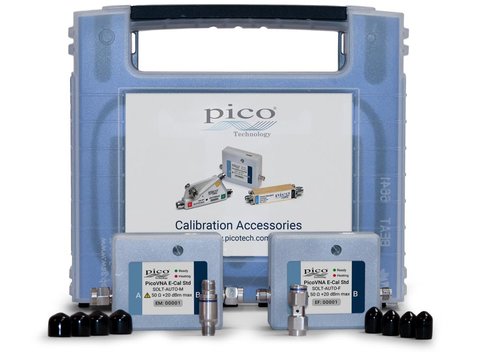

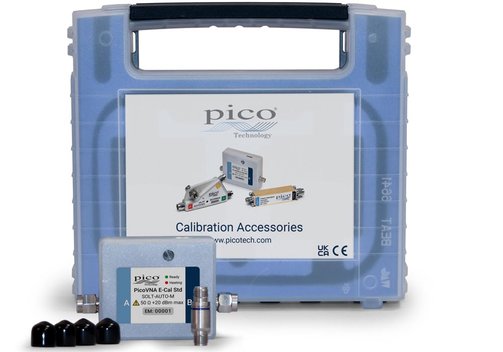

| Model | TA519 SMA female | TA518 SMA male | TA520 SMA |
| Description | PicoVNA E-Cal 8.5 GHz automated calibration kits; ovened USB-controlled automated E-Cal SOLT | ||
| Ports | 2 | ||
| Bandwidth | 300 kHz to 8.5 GHz | ||
| Standards | Short, open, load, through and separate characterized/polarized port adaptor | ||
| Impedance | 50 Ω | ||
| Connector | SMA(f) | SMA(m) | SMA(f) and SMA(m) |
| Port input limit | +10 dBm operating, +20 dBm/1 Vpeak protection | ||
| More specs | Directivity 40 dB; source match 40 dB; load match 6 dB; reflection tracking 0.05 dB; transmission tracking 0.04 dB | ||
| Characterization | Full S-parameter 300 kHz to 8.5 GHz; SOLT comparison, characterization data records to internal memory/embedded and read from USB device | ||
| Control and power | Micro-USB 2.0 | ||
| Dimensions (mm) | 65 x 43 x 15; 60 g | ||
| Oven warming time | Typ. 45 s at 23°C | ||
