PCIe-DIO24, PCI-DIO24 24-Channel Digital-I/O PC-Boards

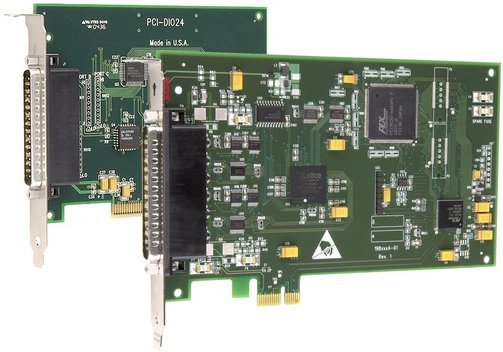

The PCIe-DIO24 and PCI-DIO24 are 24-channel digital-I/O PC boards for PCI-Express or StandardPCI bus. The 24 channels are organized in 2x 8 bit and 2x 4 bit ports according to the 82C55 structure.
- 24 digital-I/O channels: 2x 8 bit ports, 2x 4 bit port - each port can be programmed as input or output.
- Easy to use and easy programming.
- Interrupt capable.
- Model for PCI-Express and Standard-PCI.

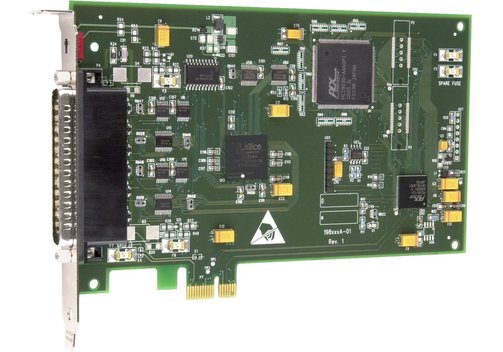

- PCIe-DIO24: High current output, and 82C55 mode 0 emulation.
- 37-pin D-sub male connector.
Model Overview
| Model | PCIe-DIO24 6069-410-098 | PCI-DIO24 6069-410-051 | |
| Digital-I/O | Number | Emulation of 82C55 (mode 0 only): 24 I/O channels organized as 2 banks of 8 and 2 banks of 4 programmable by bank as input or output | 82C55: 24 I/O channels organized as 2 banks of 8 and 2 banks of 4 programmable by bank as input or output |
| Levels | Output ports A and B: 74HC245A, port C: 74HC126 input ports A and B: 74HC245A, port C: 74HC125 | - | |
| Output high (3.3 V): 2.8 V min. at -2.5 mA Output low (3.3 V): 0.3 V max. at 2.5 mA | Output high: 3.7 V min. at -2.5 mA Output low: 0.4 V max. at 2.5 mA | ||
| Input high (3.3 V): 2.6 V min., 3.6 V absolute max. Input low (3.3 V): 1.3 V max., -0.5 V absolute min. | Input high: 2.2 V min., 5.3 V absolute max. Input low: 0.8 V max., -0.3 V absolute min. | ||
| Output high(5 V): 4.5 V min. at -2.5 mA Output low (5 V): 0.3 V max. at 2.5 mA | - | ||
| Input high (5 V): 2.6 V min., 5.5 V absolute max. Input low (5 V): 1.3 V max., -0.5 V absolute min. | - | ||
| Power-up/reset state | Input mode (10 kΩ impedance from pull-up or pull-down) | Input mode (high impedance) | |
| Pull-up/pull-down | EEPROM stored; software programmable driven by 74ACT244 through 10-kΩ bussedresistor networks (shipped in the pull-up state) | - | |
| Interrupt | External (IRQ ENABLE, active low, disabled by default through internal resistor to TTL high) and programmable through PCI9030; 0 = disabled, 1 = enabled (default); interrupt sources: External source (IRQ INPUT), polarity programmable through PCI9030; 1 = active high, 0 = active low (default) | External (IR ENABLE, active low, disabled by default through internal resistor to TTL high) and programmable through PCI9052; 0 = disabled, 1 = enabled (default); interrupt sources: External source (IR INPUT), polarity programmable through PCI9052; 1 = active high, 0 = active low (default) | |
| Bus platform | PCI-Express 1.1 x1 lane | 5 V, 32 bit, 33 MHz StandardPCI bus | |
| Connector | 37-pin D-sub male | 37-pin D-sub male | |
Included: PC plug-in board PCIe-DIO24 or PCI-DIO24, software (Windows and Linux Universal Library SW Suite) and user manual via download.
