Keysight P916x Series USB RF Solid State Switch Matrix

Benefits of the P916x Serie Switching Matrices up to 18 GHz

• Up to 18 GHz operating frequency.
• Full crossbar 2x 16 or 8 matrix configuration.
• USB 3.0 controlled.

Keysight P916x Series USB RF Solid State Switch Matrix

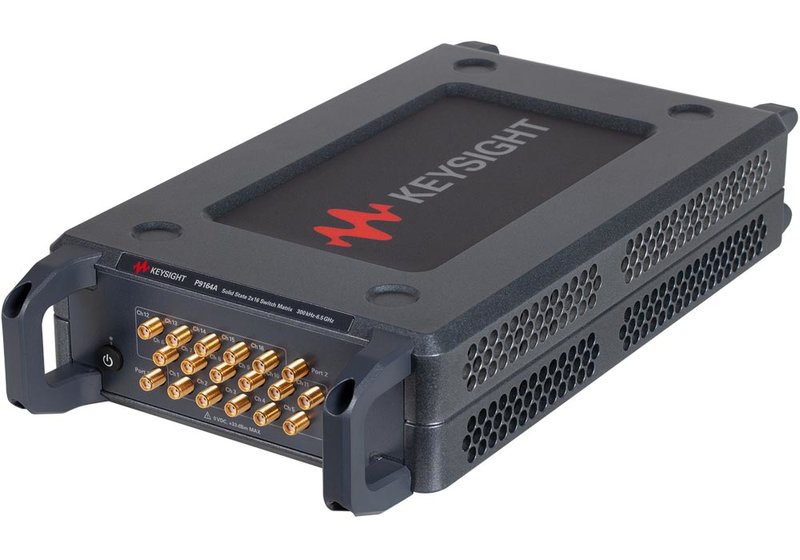

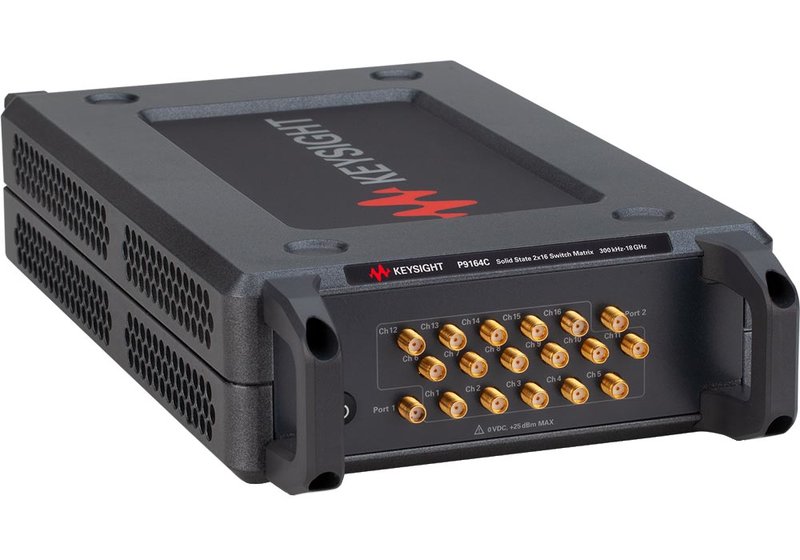

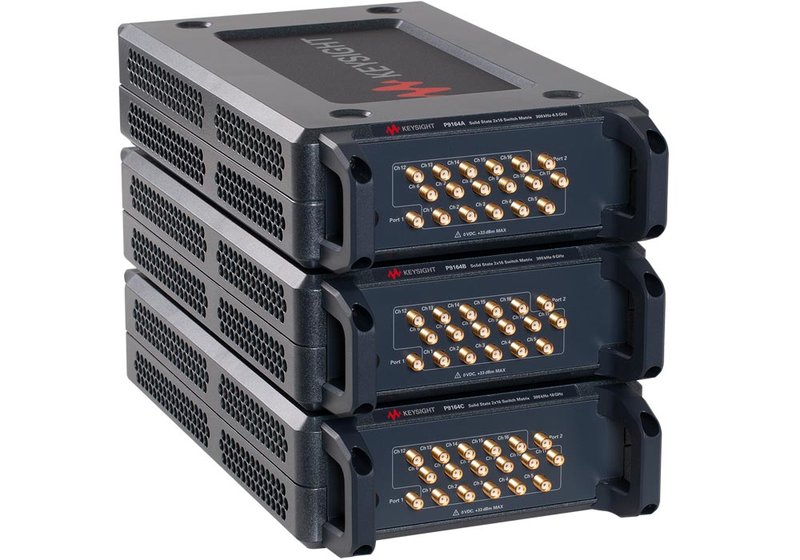

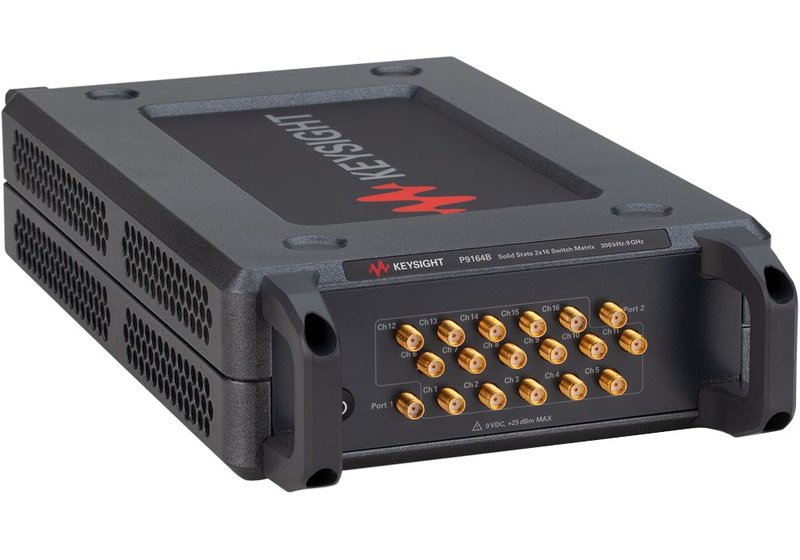

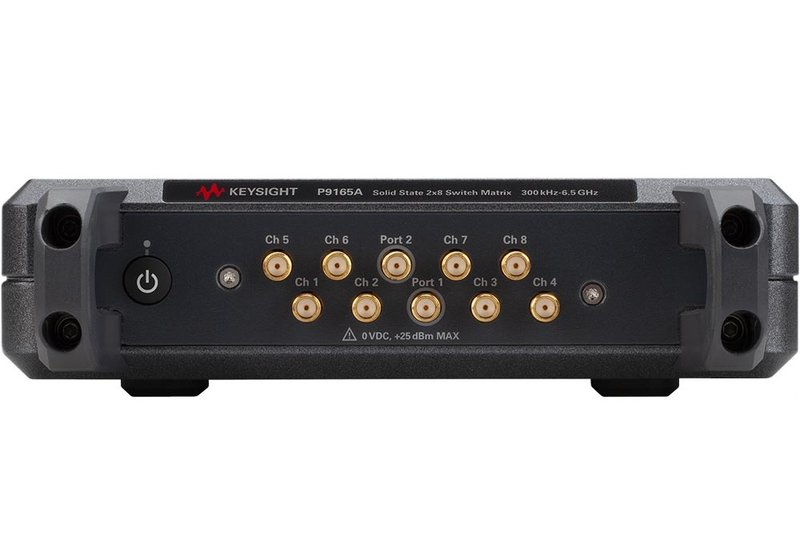

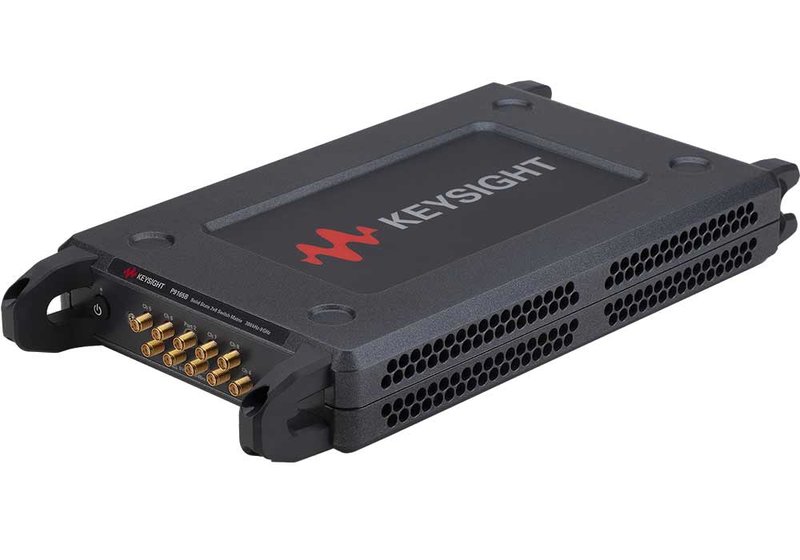

Models Keysight P9164A, B, C and P9165A, B, C RF Switches

The Keysight Series P916x modules (P 9164 and 9165 A/B/C) are USB solid state switch matrixes. They can operate at frequencies from 300 kHz up to 6.5, 9, or 18 GHz. They are full crossbar 2x 8 or 2x 16 switch matrixes and provide a USB controlled, switch based multiport solution eg. for VNAs (vector network analyzers). They are the ideal solution for test systems involving larger scale of multi-DUT or multiport measurement such as 5G massive MIMO antenna measurement and others. The P916x modules are compact and portable. Together with exceptional RF performance, they deliver confidence in your measurement for a reliable and repeatable results while at the same time reducing the overall cost of test.

• Choose frequency ranges from 300 kHz up to 18 GHz.
• Extend the number of test ports for multi-DUT or multiport devices measurement.
• Portable and easily share the compact switch matrix between your location.
• Achieve lower cost-per-port test without compromising performance and bench space.

Model Overview

* DUT = device under test.
