PeakTech P6181 3-Channel DC Power Supplies up to 180W
Benefits of the P6181 3-Channel Programmable DC Power Supplies, up to 180 W, USB, LAN
- High output resolution of 1 mV and 1 mA.
- Low ripple and noise.
- Up to 100 group-timer steps.

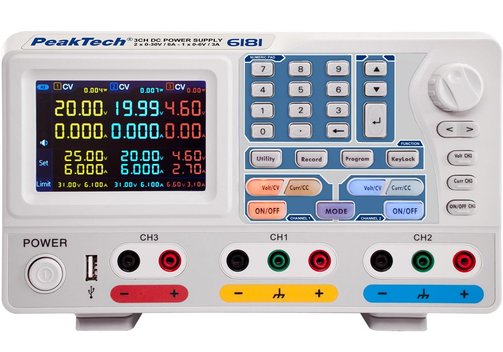

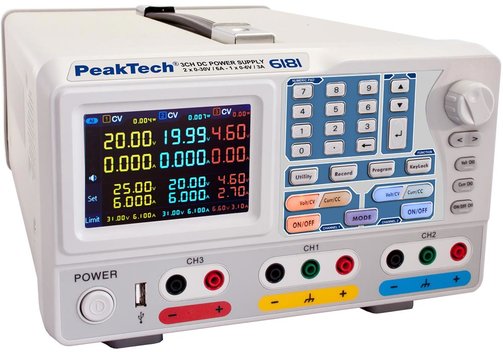

PeakTech P6181 3-Channel DC Power Supplies up to 180 W
The programmable DC laboratory power supplies of the PeakTech series P618x combine the advantages of a linearly controlled laboratory power supply with the remote control options. Operation is via the graphical menu navigation and enables simple control and programming of the many functions. In addition, the device can be completely remote controlled using the included PC software. To double the output voltage or output current values, the two independent channels can be connected in series or in parallel. A plus/minus connection of the outputs is also possible. The devices are ideal for use in research and development for RF-sensitive components and circuit boards.
- Two independent channels with 0...30 V/0...3 ADC (P6180) or 0...30 V/0...6 ADC (P6181).
- Channel 3: Adjustable additional channel 0...6 V/0...3 ADC (P6181) or
fixed voltage output 5 V/3 ADC (P6180). - High output resolution of 1 mV and 1 mA.
- Low ripple & noise.
- Over voltage and over current protection.
- Current, voltage and power display.
- Up to 100 group-timer steps.
- Time programs selectable as loop or cycle.
- Up to 10 preset system configruations.
- Settings and sequences can be stored.
- Outputs serial, parallel, or plus/minus interconnected.
- Approx. 4"/10 cm TFT color display.
- Graphical user menu.
- Included Windows software for remote control.
- Record of output values to USB storage.

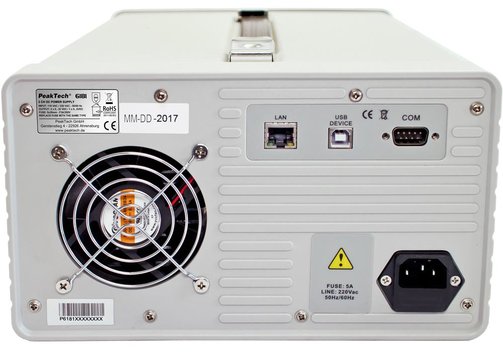

- USB host & device, Ethernet/LAN, and RS232 interface.
Model Overview

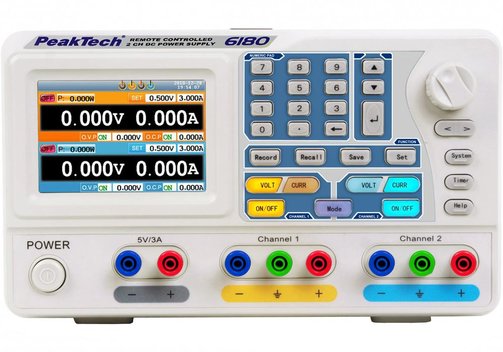

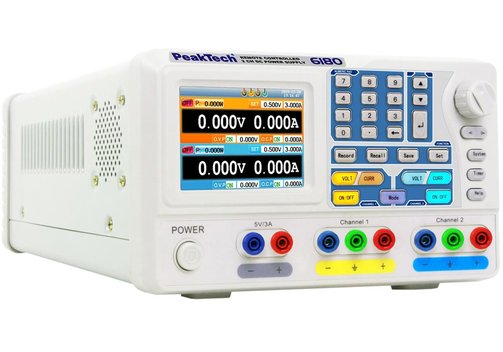

| Model | P6180 - EOL/obsolete | P6181 |
| Channels | 2 + 1 fixed channel | 3 |
| Output voltage channel 1 and 2 | 2x 0...30 V (normal/parallel); 0...60 V series | |
| Output current channel 1 and 2 | 2x 0...3 A (normal/series); 0...6 A parallel | 2x 0...6 A (normal/series); 0...12 A parallel |
| Output power channel 1 and 2 | 2x 90 W | 2x 180 W |
| Output voltage channel 3 | 5 V fixed (fixed voltage output) | 0...6 V |
| Output current channel 3 | 3 A fixed | 0...3 A |
| Output power channel 3 | - | 18 W |
| Line regulation | Channel 1/2: ≤0.01% + 3 mV; channel 3: ≤3 mV channel 1/2: ≤0.1% + 3 mA | Channel 1/2: ≤0.01% + 3 mV; channel 3: ≤3 mV channel 1/2/3: ≤0.1% + 3 mA |
| Load regulation | Channel 1/2: ≤0.01% + 3 mV; channel 3: ≤0.1% + 3 mV channel 1/2: ≤0,2% + 3 mA | Channel 1/2: ≤0.01% + 3 mV; channel 3: ≤0.1% + 3 mV channel 1/2/3: ≤0,2% + 3 mA |
| Noise and ripple | At 20 Hz...7 MHz channel 1/2/3: ≤300 µVRMS/2 mVPP ≤3 mARMS | Bei 20 Hz...20 MHz channel 1/2: ≤2 mVPP/≤300 µVRMS; channel 3: ≤3 mVPP/≤1 mVRMS/2 mVPP channel 1/2: ≤3 mARMS; channel 3: ≤1 mARMS |
| Settings resolution | Channel 1/2: 1 mV, 1 mA | Channel 1/2/3: 1 mV, 1 mA |
| Display | Approx. 4"/10 cm LCD/TFT display, 480 x 320 pixels, 65536 colours | |
| Interfaces | USB Host & Device, Ethernet/LAN, RS232 | |
| Dimensions (mm) | 250 x 158 x 358; approx. 10.5 kg (P6180)/12 kg (P6181) | |
Included: P 6180 or 6181, power corde, USB cable, software for Windows, user manual.
Information on product safety:
Manufacturer:
PeakTech Prüf- und Messtechnik GmbH, Gerstenstieg 4, 22926 Ahrensburg/DEU
