PeakTech P4105, P4115, P4046 2-Channel Signal Generators up to bis 160MHz
Benefits of the P41x5/P4046 2-Channel Function and Arbitrary Waveform Generators
- 2-channel function and arbitrary waveform generator up to 160 MHz.
- 1 µHz frequency resolution for whole bandwidth.
- Versatile types of modulation.
PeakTech P4105, P4115, P4046 2-Channel Signal Generators up to bis 160 MHz

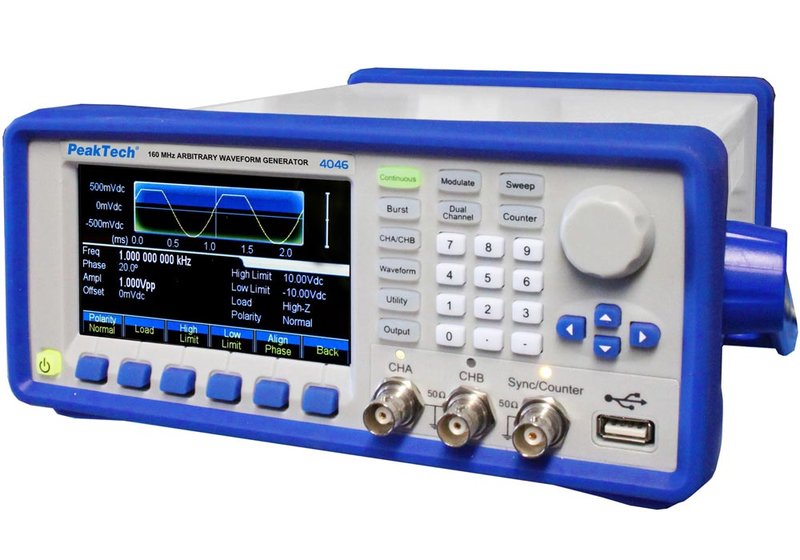

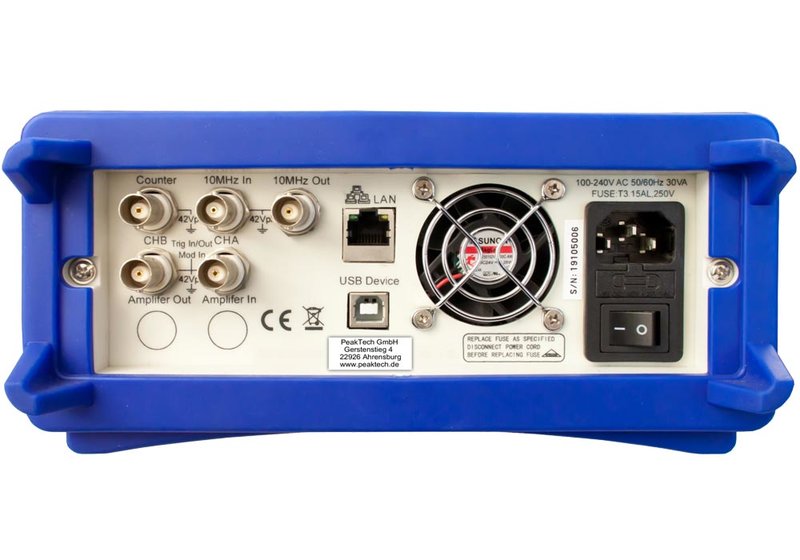

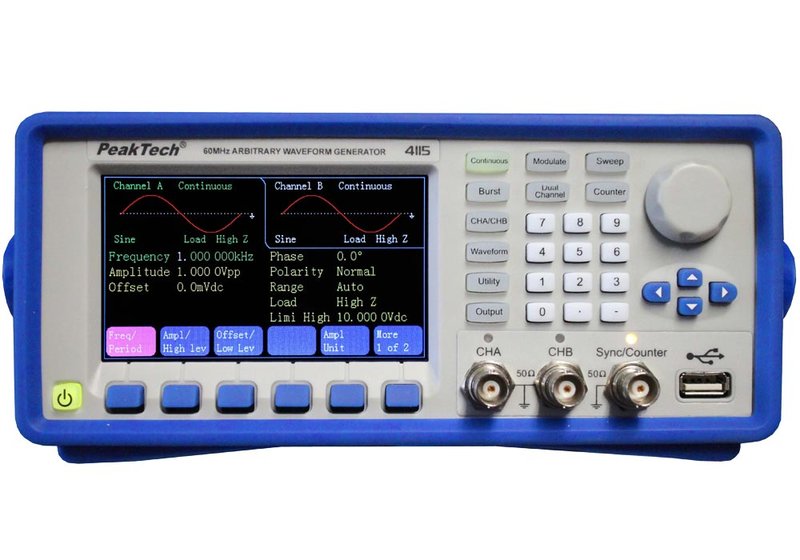

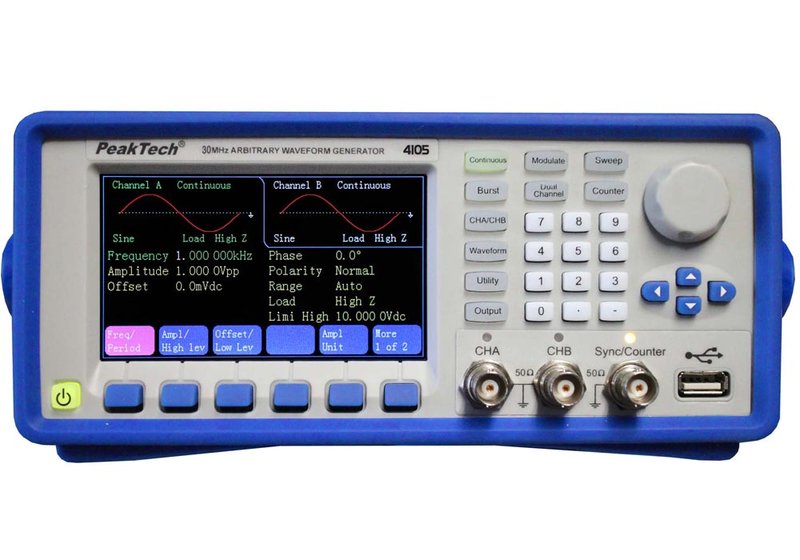

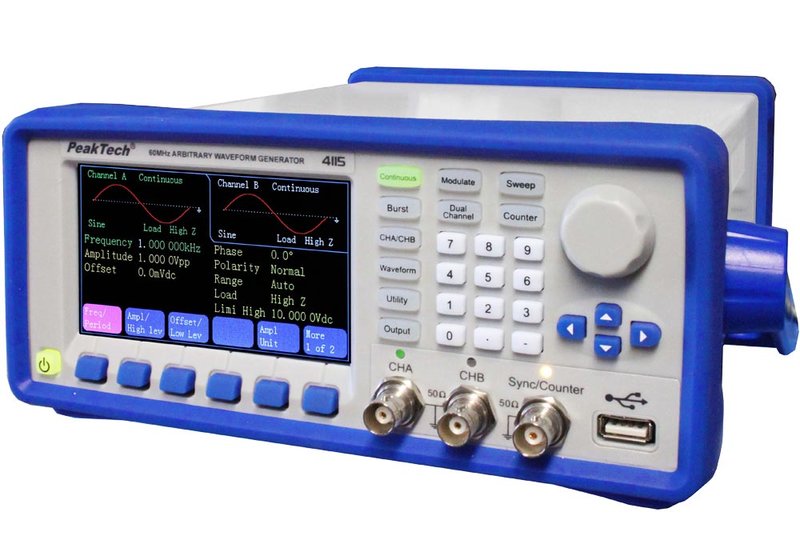

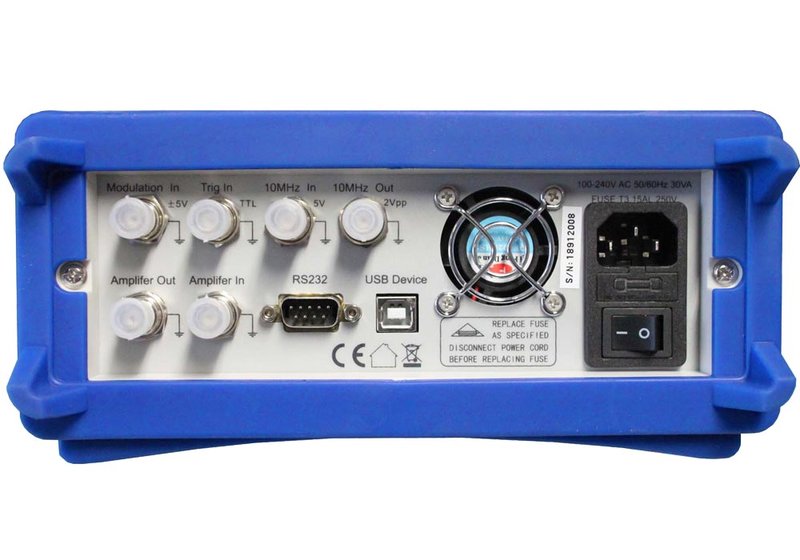

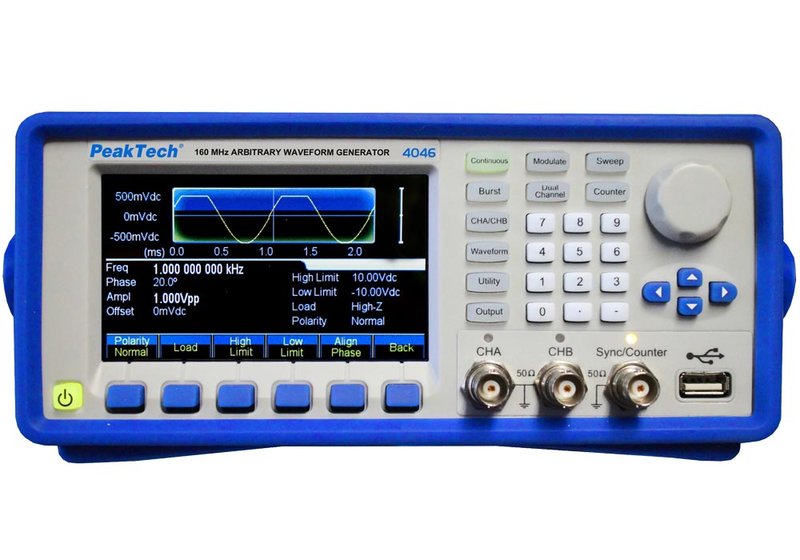

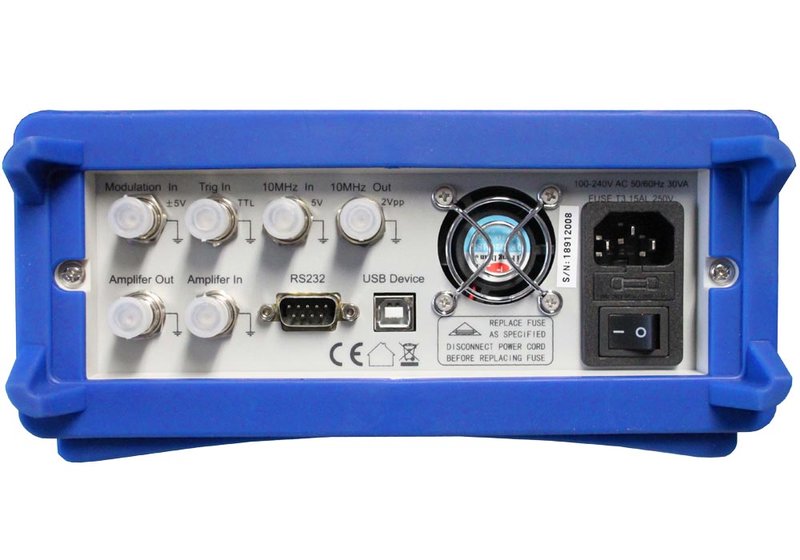

The PeakTech P4105, P4115, and P4046 are high-quality arbitrary waveform generators up to 30, 60, or 160 MHz. The devices have excellent technical features and a high variety of functions, such as two equivalent output channels, a large number of pre-stored arbitrary waveforms and many different types of modulation. In this way, the devices are the perfect solution for nearly all tasks in research, development and the training area.
- Large 4.3"/11 cm TFT LCD display for both channels at once.
- Two independent channels with same technical characteristics.
- Frequency range 1 µHz...30, 60, or 160 MHz.
- 1 µHz frequency resolution for whole bandwidth.
- 120, 150, or 500 MS/s sampling rate, 14 bits vertical resolution.
- Standard waveforms (such as sine, square/pulse, triangle).
- Fixed arbitrary waveforms ( such as sin(x)/x, Gaussian, exp. rise/fall, PRBS).
- User-defined arbitrary waveforms, editable with PC-Software.
- Various types of modulation, such as AM, FM, PM, PWM, FSK.
- Channel-coupling and combine features.
- Sweep- and burst function.
- Integrated 350 MHz frequency counter.
- Two different software programs for remote control and waveform edit.
- Safety: EN61010; CAT II.
Model Overview
| Model | P4046 | P4105 | P4115 |
| Channels | 2 | ||
| Frequency range | 1 µHz...160 MHz (sine); 1 µHz...50 MHz (square/pulse); 1 µHz...5 MHz (ramp); 1 µHz...30 MHz (arbitrary) | 1 µHz...30 MHz (sine); 1 µHz...10 MHz (square/pulse); 1 µHz...5 MHz (other) | 1 µHz...60 MHz (sine); 1 µHz...10 MHz (square/pulse); 1 µHz...5 MHz (other) |
| Output signals | Sine, square/pulse, ramp, noise, DC; 137 integrated arbitrary waveforms (incl. PRBS, exp. rise/fall, logarithm, sinc, Gauss, cardiac, tangent, semi-circle, quake); 7 user arbitrary waveforms | Sine, square/pulse, ramp, noise; 50 integrated arbitrary waveforms (incl. PRBS, exp. rise/fall, logarithm, sinc, Gauss, cardiac, tangent, semi-circle, quake); 5 user arbitrary waveforms | |
| Harmonic distortion (sine) | ≤-60 dBc (<10 MHz); ≤-45 dBc (≥100 MHz) | <-60 dBc (<5 MHz)/<-50 dBc (>5 MHz) | <-60 dBc (<5 MHz)/<-50 dBc (>30 MHz) |
| Total distortion (sine) | ≤0.1% (20 Hz...20 kHz, 20 VPP) | <1% | |
| Duty cycle (square) | 0.1...99.9% | ||
| Arbitrary waveforms | 500 MS/s; 14 bit; 6...1 MPoints | 120 MS/s; 14 bit; 4096 Points | 150 MS/s; 14 bit; 4096 Points |
| Modulations | AM, FM, PM, PWM, SUM modulation, FSK, BPSK; burst, sweep | AM, FM, PM, PWM, SUM modulation, FSK, BPSF PSK, ASK; burst, sweep | |
| Frequency counter | 0.1 Hz...350 MHz, 7 digits | 0.01 Hz...350 MHz; 6 digits | |
| Displaye | 4.3"/11 cm TFT LCD digital display | ||
| Interfaces | USB Host & Device, Ethernet/LAN | USB Host & Device | |
| Dimensions (mm) | 367 x 256 x 106; 3.7 kg | 322 x 256 x 102; 3 kg | |
Included: P 4046, 4105, or 4115, power cord, USB interface cable, software for Windows, BNC-cable, manual on CD.
