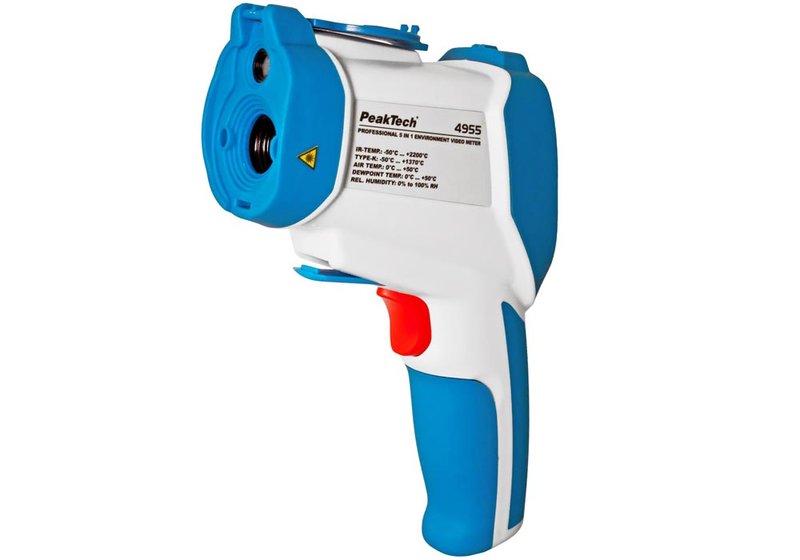

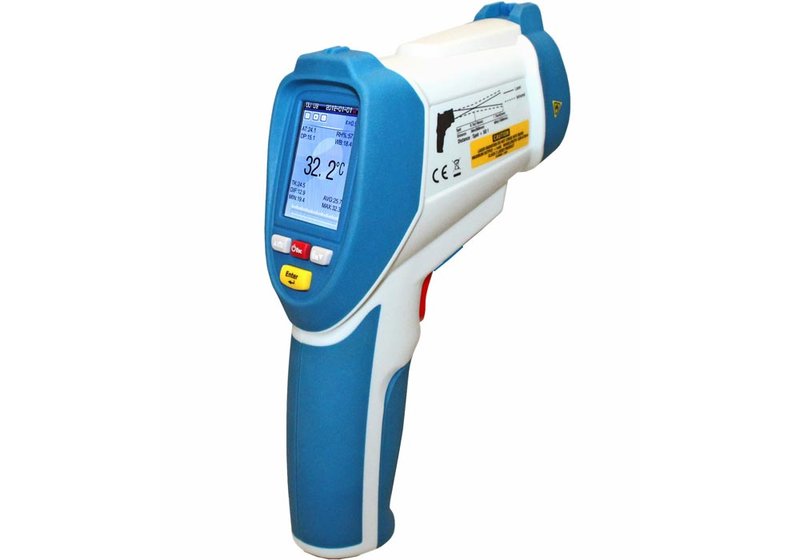

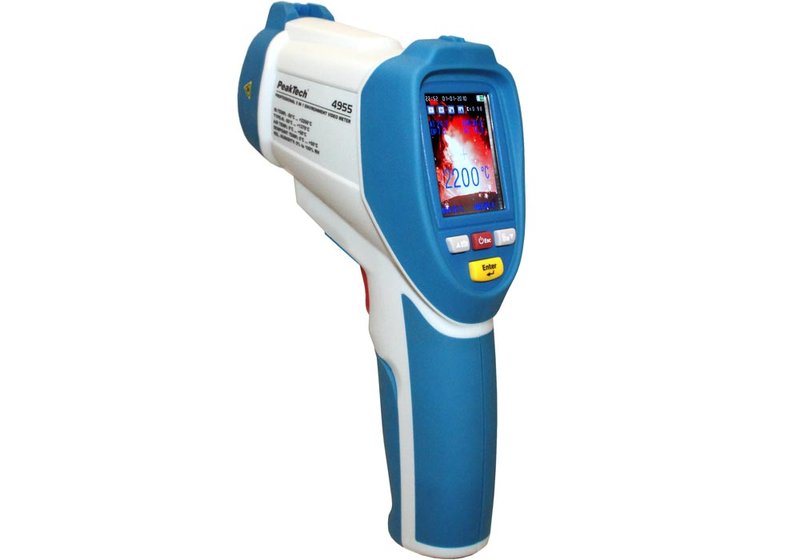

PeakTech P4955 IR Thermometer, Video/Photo, Datalogger
Benefits of the P4955 IR Thermometer for -50...+2200°C
- Versatile temperature and rel. humidity measurement features.
- Fast response time and high accuracy.
- Datalogging for all measurement functions.
PeakTech P4955 IR Thermometer, Video/Photo, Datalogger
The PeakTech P4955 is a professional "5-in-1" environmental video measuring device with dual laser for exact target area determination for fast, accurate and non-contact surface temperature measurements. An additional thermocouple type K measurement input is available on the device for direct contact measurements or differential measurements of surfaces. The integrated photo function shows the measured object with overlay temperature and other measurement data such as air humidity and dew point temperature and can be saved in the internal memory or on a Micro-SD card. An integrated data logger stores all measured values which can be evaluated and processed on the PC. Ideal for documenting important measurements in industrial areas, electrical engineering, maintenance and service work, quality assurance, construction and energy consulting.
- 2.2"/5.6 cm colour TFT-LCD display with a resolution of 640 x 480 pixel.
- Graphical menu settings.
- Infrared, type K, humidity, air-temperature, dew point, and wet bulb temperature measurement.
- Optical resolution 50:1.
- Adjustable emissivity factor 0.1...1.0.
- Fast response time and high accuracy.
- Record photos (JPG) and videos (3GP-intern).
- Datalogger for all measurement functions.
- Internal memory and Micro-SD slot.
- USB-interface for data transfer and battery charging.
- Safety: EN 60825-1.
Model Overview
| Model | P4955 |
| Range (IR) | -50...+2200°C (-58...+3992°F); 0.1°C/°F |
| Accuracy | ±1.0% + 1.0°C/1.8°F |
| Optical resolution | 50:1 |
| Emissivity | 0.1...1.0 adjustable |
| Laser class | Dual-laser; class 2; output <1 mW; wave length: 63...670 nm |
| Range (type K) | -50...+1370°C (-58...+2498°F); 0.1°C/°F |
| Accuracy | ±1.5% + 1.5°C/2.5°F |
| Air temperature | 0...+50°C (32...122°F); ±0.5°C/°F |
| Dew point temperature | 0...+50°C (32...122°F); ±0.5°C/°F |
| Relative humidity | 0...100% r. h.; ±3% r. h. |
| Display | 2.2"/5.6 cm color-TFT display; resolution 640 x 480 pixels |
Included: P 4955, case, AC power adaptor, USB cable, type K thermocouple, Li-Ion battery, Micro-SD card 2 GB, tripod and user manual.
Information on product safety:
Manufacturer:
PeakTech Prüf- und Messtechnik GmbH, Gerstenstieg 4, 22926 Ahrensburg/DEU
www.peaktech.de
